    • EED503
    EAN-Nr.
    3250612256174
    Packaging
    1 piece
    • Ceiling detectors

    Presence/motion detector DALI2 360° flush-mounted detection Ø20m EED503

    Price
    £137.24
    / piece *
    £137.24
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Presence/motion detector DALI2 360° flush-mounted detection Ø20m

    EED503

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Detec­tion
    • Detec­tion angle
      360 - 360
    • Type of sensor
      Pres­ence detector
    • Detec­tion angle hori­zontal
      360 - 360
    Settings
    • Switch off delay time
      0
    • Switch on delay time
      0
    Lighting
    • LED lamp power
      0
    • Photo­cell sens­it­ivity
      5 - 2,000 lx
    Connec­tion
    • Connect­or/plug type
      Plug-in terminal
    Frequency
    • Frequency
      50 - 60 Hz
    Dimen­sions
    • Built-in depth
      82 mm
    • Install­a­tion height
      2.50 - 2.50 m
    Mater­ials
    • Material
      Plastic
    • Surface finish
      Glossy
    Safety
    • Ingress Protec­tion (IP) class
      IP41
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    • Ceiling mounting possible
      Yes
    Power supply
    • Supply voltage
      230 V
    Reach distance
    • Max. trans­mis­sion range front­ally
      5 m
    • Max. trans­mis­sion range side­ways
      10 m

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Motion detector 90-180° 3-wire/2300W IP55 Signal White (English)
    PDF
    4,62 MB
    REACH declaration EED503
    PDF
    Hager RoHS report EED503
    PDF

    Downloads

    • Product image

      Image EED503 | Hager

      Product Image EED503

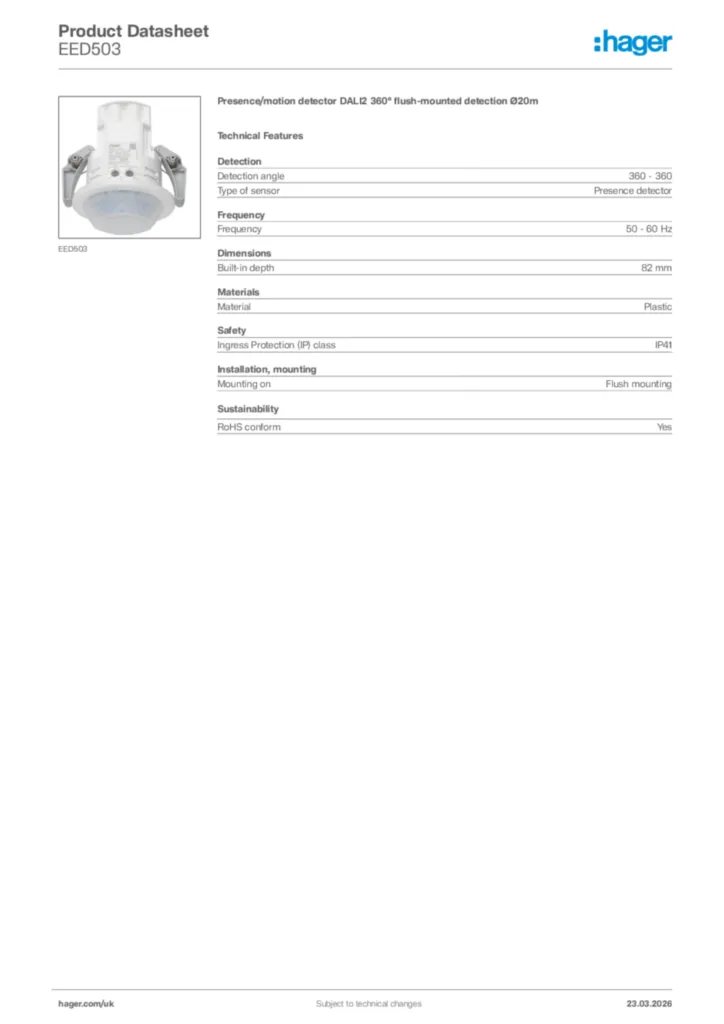

    • Product datasheet

      Image Hager Product data sheet EED503 | Hager

      Hager Product data sheet EED503

      Presence/motion detector DALI2 360° flush-mounted detection Ø20m

      PDF

    • Installation manual

      Image Installation manual en-GB, it-IT 2022-06-22 | Hager

      Installation manual en-GB, it-IT 2022-06-22

      PDF
      2,69 MB
      Image Installation manual en-GB 2022-06-22 | Hager

      Installation manual en-GB 2022-06-22

      PDF
      871,00 kB

    • Declaration of conformity

      Image Declaration of conformity International 2024-01-18 | Hager

      Declaration of conformity International 2024-01-18

      PDF
      109,42 kB
      Image Declaration of conformity International 2024-01-18 | Hager

      Declaration of conformity International 2024-01-18

      PDF
      115,43 kB
