Multifunction measurement device 96x96 RS485 ECM01

EAN-Nr.
3250617121286
Packaging
1 piece
Price
£393.08
/ piece *
£393.08
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Multifunction measurement device 96x96 RS485

ECM01

  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Technical characteristics

Archi­tec­ture
  • Bus system
    MODBUS
  • Type of pole
    4P
Dimen­sions
  • Height
    99 mm
  • Width
    99 mm
  • Depth
    56 mm
Equip­ment
  • Type of pulse gener­ator
    Elec­trical
Compat­ib­ility
  • Suit­able for
    Purchase
Connec­tion
  • Connect­or/plug type Bus system
    Pulse, RS485
Install­a­tion, mounting
  • Mounting on
    DIN rail
Meas­ure­ment
  • Meas­uring system
    Meas­ure­ment trans­former
  • Type of meas­uring instru­ment
    Elec­tronic
  • Meas­ure­ment range voltage Ph-N
    60 - 300 V
  • Meas­ure­ment range voltage Ph-Ph
    104 - 520 V
  • Frequency meas­uring range
    45 - 65 Hz
Func­tions
  • Accuracy class
    B
  • Tariff type
    One-tariff
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Oper­ating temper­ature
    -10 - 55 °C
  • Stor­age/trans­port temper­ature
    -20 - 70 °C
Frequency
  • Frequency
    45 - 65 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration ECM01
PDF
Hager RoHS report ECM01
PDF

Downloads

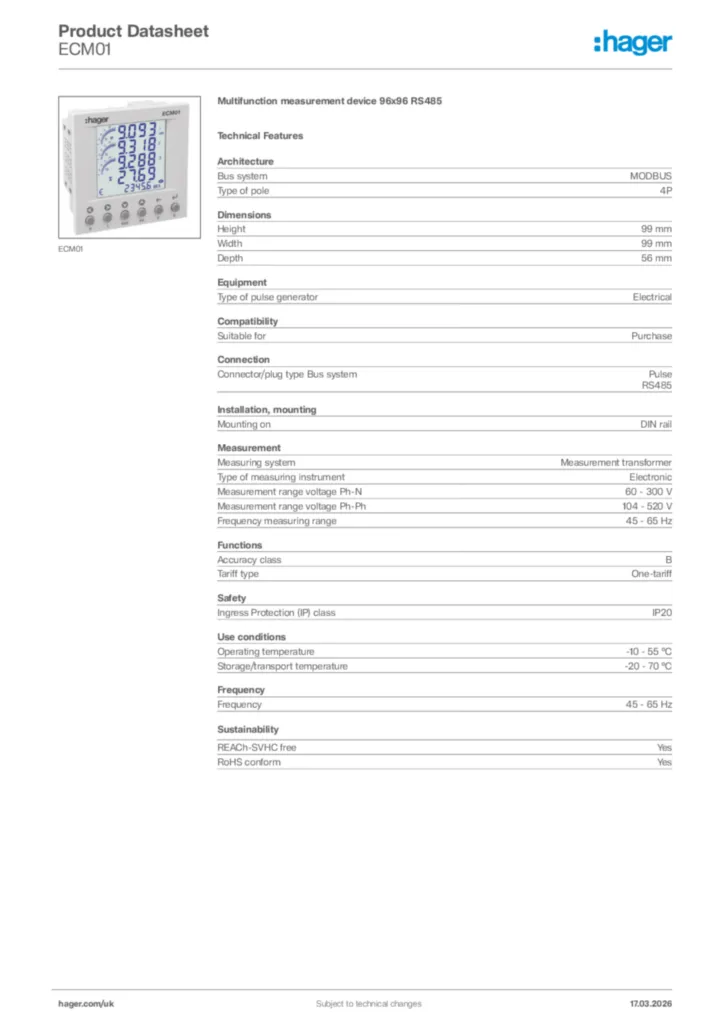

  • Product datasheet

    Image Hager Product data sheet ECM01 | Hager

    Hager Product data sheet ECM01

    Multifunction measurement device 96x96 RS485

    PDF

  • Installation manual

    Image Installation manual en-GB 2018-07-30 | Hager

    Installation manual en-GB 2018-07-30

    PDF
    7,04 MB

  • Product attachment

    Image Product attachment International 2020-01-01 | Hager

    Product attachment International 2020-01-01

    XLS
    57,00 kB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    142,96 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-08-23

    PDF
    132,32 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    255,65 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    246,50 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    244,86 kB
    Image Declaration of conformity en-GB 2025-07-07 | Hager

    Declaration of conformity en-GB 2025-07-07

    PDF
    257,00 kB
