Current Transformer with RJ45 output BGUK 3-Phase 60A/330mV Class 1 pitch 25mm EC1260CT
EAN-Nr.
3250617121002
Packaging
1 piece
Price
£81.26
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists

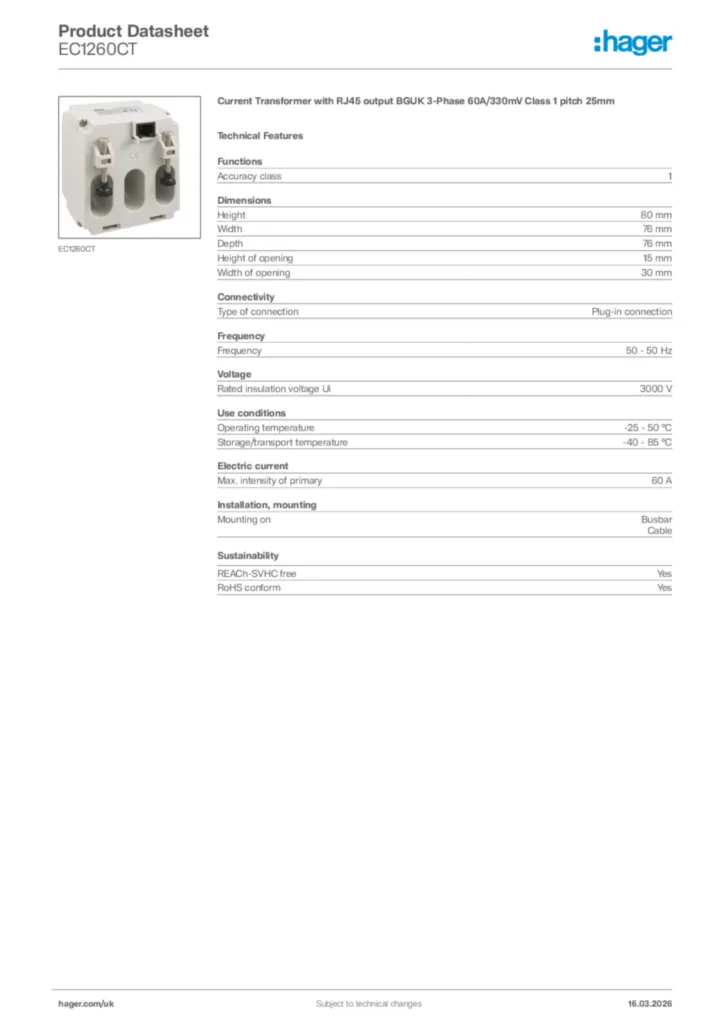

Technical characteristics
Specific identificaton attributes for Protection
-
Filter Type product3-phase current transformer replacement
Functions
-
Accuracy class1
Dimensions
-
Height80 mm
-
Width76 mm
-
Depth76 mm
-
Height of opening15 mm
-
Width of opening30 mm
Connectivity
-
Type of connectionPlug-in connection
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated insulation voltage Ui3,000 V
Use conditions
-
Operating temperature-25 - 50 °C
-
Storage/transport temperature-40 - 85 °C
Electric current
-
Max. intensity of primary60 A
Installation, mounting
-
Mounting onBusbar, Cable
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Installation manual en-GB 2018-08-24
PDF2,34 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-23
PDF142,96 kB
Declaration
Declaration of conformity International 2021-09-29
PDF276,98 kB
Declaration
Declaration of conformity International 2021-09-29
PDF269,32 kB
Declaration
Declaration of conformity International 2022-08-23
PDF132,32 kB
Declaration
Declaration of conformity International 2022-06-07
PDF446,57 kB
Declaration of conformity International 2023-12-20
PDF302,50 kB
Declaration of conformity International 2023-12-20
PDF296,11 kB
