    • EC12160CT
    EAN-Nr.
    3250617121040
    Packaging
    1 piece
    • Current trans­formers for busbar systems and accessories

    Current Transformer with RJ45 output BGUK 3-Phase 160A/330mV Class 1 pitch 25mm EC12160CT

    Price
    £86.94
    / piece *
    £86.94
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Current Transformer with RJ45 output BGUK 3-Phase 160A/330mV Class 1 pitch 25mm

    EC12160CT

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      3-phase current trans­former replace­ment
    Func­tions
    • Accuracy class
      1
    Dimen­sions
    • Height
      80 mm
    • Width
      76 mm
    • Depth
      76 mm
    • Height of opening
      15 mm
    • Width of opening
      30 mm
    Connectivity
    • Type of connec­tion
      Plug-in connec­tion
    Frequency
    • Frequency
      50 - 50 Hz
    Voltage
    • Rated insu­la­tion voltage Ui
      3,000 V
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 50 °C
    • Stor­age/trans­port temper­ature
      -40 - 85 °C
    Elec­tric current
    • Max. intensity of primary
      160 A
    Install­a­tion, mounting
    • Mounting on
      Busbar, Cable

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    Hager REACH declaration EC12160CT
    PDF
    Hager RoHS report EC12160CT
    PDF

    Downloads

    • Product image

      Image EC12160CT | Hager

      Product Image EC12160CT

    • Product datasheet

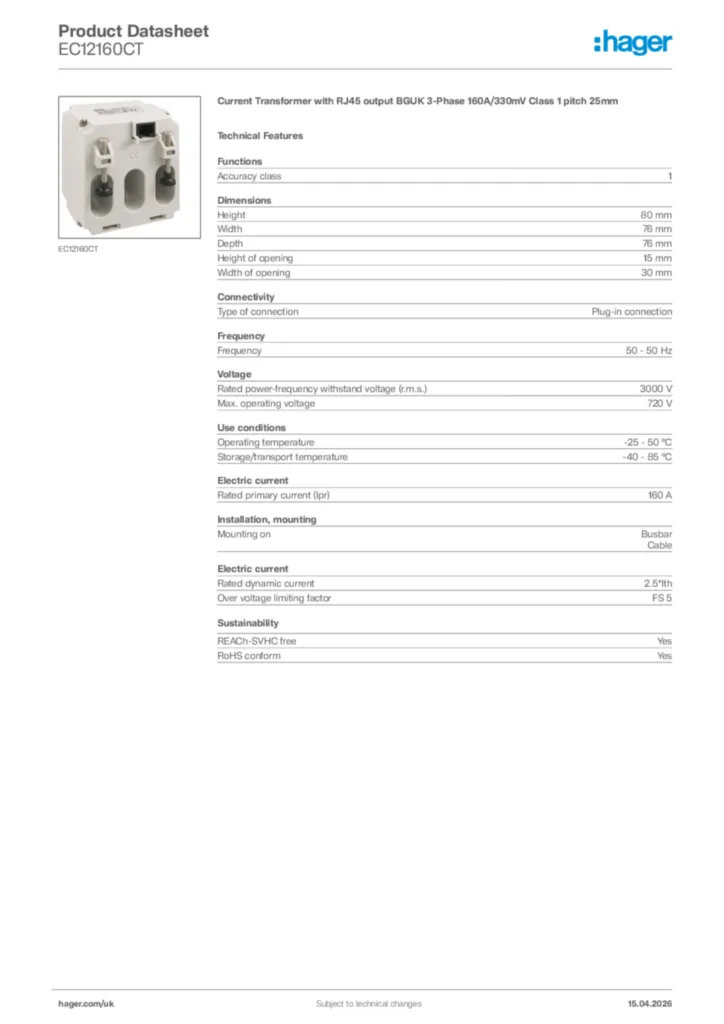

      Image Hager Product data sheet EC12160CT | Hager

      Hager Product data sheet EC12160CT

      Current Transformer with RJ45 output BGUK 3-Phase 160A/330mV Class 1 pitch 25mm

      PDF

    • Installation manual

      Image Installation manual en-GB 2018-08-24 | Hager

      Installation manual en-GB 2018-08-24

      PDF
      2,34 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-08-23

      PDF
      142,96 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-09-29

      PDF
      276,98 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-09-29

      PDF
      269,32 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-08-23

      PDF
      132,32 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-06-07

      PDF
      446,57 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      302,50 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      296,11 kB
