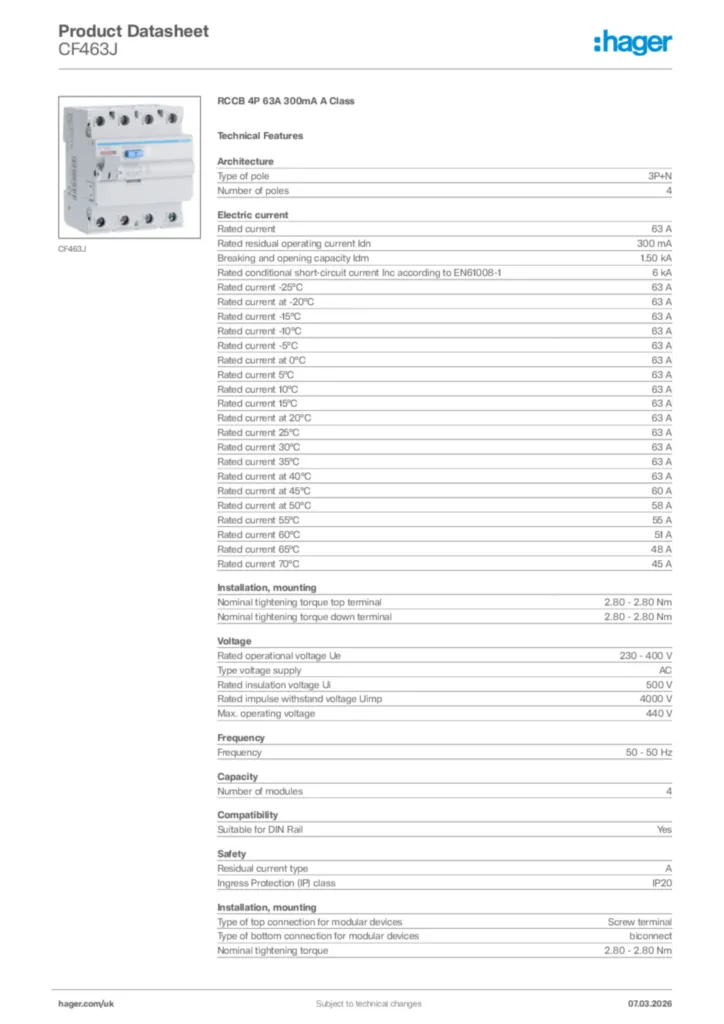

CF463J

RCCB 4P 63A 300mA A Class
EAN
3250611616269
Quantity
1
Trade price*
£243.34 /prt.*
  • Architecture
    • Neutral position
      • right
    • Number of poles
      • 4 P
    • Fixing mode
      • DIN rail type O (symmetrical)
  • Main electrical features
    • Rated operational voltage Ue
      • 230 / 400 V
    • Frequency
      • 50 Hz
    • Rated current
      • 63 A
  • Voltage
    • Rated insulation voltage
      • 500 V
    • Rated impulse withstand voltage
      • 4000 V
  • Electric current
    • Rated residual operating current
      • 300 mA
    • Breaking and opening capacity
      • 1.5 kA
    • Rated conditional short-circuit current Inc according to EN 61008-1
      • 6 kA
  • Electric current / temperature
    • Rating current 30°C
      • 63 A
  • Dimensions
    • Depth of installed product
      • 70 mm
    • Height of installed product
      • 83 mm
    • Width of installed product
      • 70 mm
  • Power
    • Total power loss under IN
      • 19.7 W
  • Tripping
    • Residual current trip mode
      • Undelayed
  • Endurance
    • Electric endurance in number of cycles
      • 2000
    • Number of mechanical operations
      • 4000
  • Capacity
    • Number of modules
      • 4
  • Installation, mounting
    • Tightening torque
      • 2,8Nm
  • Connection
    • Connection cross-sect. flexible conductor
      • 16mm²
    • Connection cross-sect. rigid cable
      • 25mm²
    • Type of connection
      • with screw
  • Standards
    • Standard text
      • IEC 61008-1
      • EN 61008-1
    • European directive WEEE
      • concerned
  • Safety
    • Protection index IP
      • IP20
    • Residual current type
      • A
  • Use conditions
    • Operating temperature
      • -25…40 °C
Documentations
Product environmental profile for CF463J 427 KBPDFDownload
Instruction manuals for CF463J 2 MBPDFDownload
Commercial Distribution Catalogue 13 MBPDFDownload
