RCBO with dangerous arc detection 1M 20A C curve 6kA Type A 30mA ARR970U
EAN-Nr.
3250611048084
Packaging
1 piece
Price
£198.50
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 2 products available
Complete your system
-
MZN175
Padlockable locking kit for MCB, RCCB and RCBO
£9.58 / piece* -
MZN176Locking wire for modular product
£9.24 / piece*

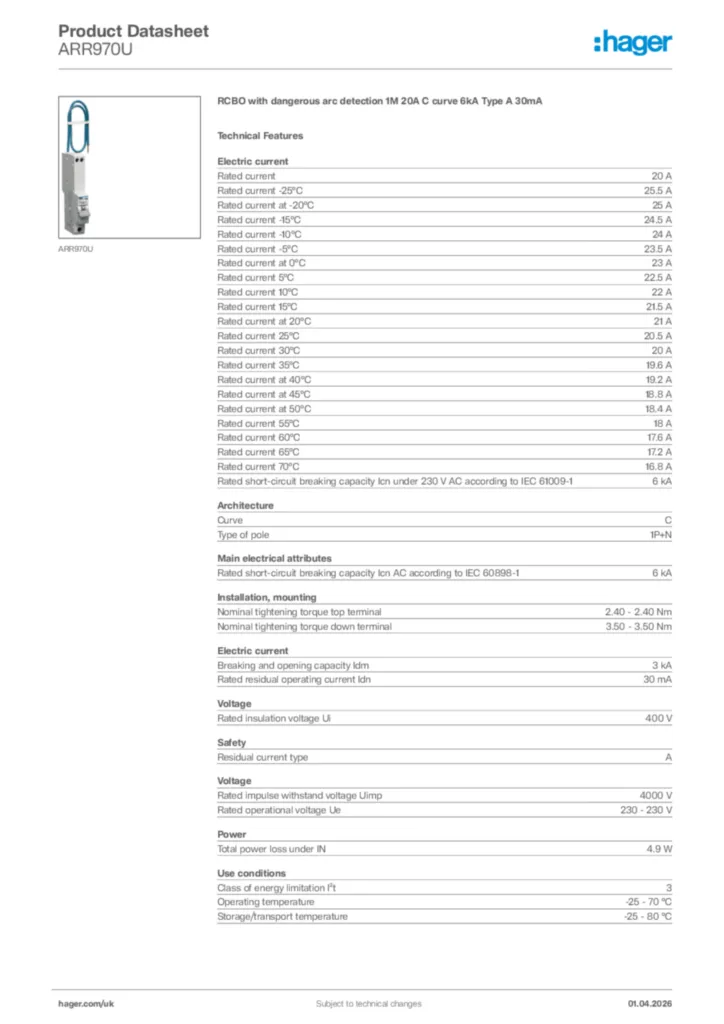

Technical characteristics
Electric current
-
Rated current20 A
-
Rated current -25°C25.50 A
-
Rated current at -20°C25 A
-
Rated current -15°C24.50 A
-
Rated current -5°C23.50 A
-
Rated current at 0°C23 A
-
Rated current 5°C22.50 A
-
Rated current 10°C22 A
-
Rated current 15°C21.50 A
-
Rated current at 20°C21 A
-
Rated current 25°C20.50 A
-
Rated current 35°C19.60 A
-
Rated current at 40°C19.20 A
-
Rated current at 45°C18.80 A
-
Rated current 55°C18 A
-
Rated current 60°C17.60 A
-
Rated current 65°C17.20 A
-
Rated current 70°C16.80 A
-
Breaking and opening capacity Idm3 kA
-
Rated residual operating current Idn30 mA
Architecture
-
CurveC
-
Type of pole1P+N
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
-
Nominal tightening torque top terminal2.40 - 2.40 Nm
-
Nominal tightening torque down terminal3.50 - 3.50 Nm
Safety
-
Residual current typeA
Voltage
-
Rated insulation voltage Ui400 V
-
Rated impulse withstand voltage Uimp4,000 V
Use conditions
-
Class of energy limitation I²t3
-
Operating temperature-25 - 70 °C
-
Storage/transport temperature-25 - 80 °C
Endurance
-
Number of mechanical operations8,000
-
Electric endurance in number of cycles2,000
Capacity
-
Number of modules1
Installation, mounting
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
Dimensions
-
Height125 mm
-
Width17.50 mm
-
Depth70 mm
