RCBO with dangerous arc detection 1M 10A B curve 6kA Type A 30mA ARR910U
EAN-Nr.
3250611044772
Packaging
1 piece
Price
£198.50
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionright
-
Number of poles2 P
-
Type of pole1P+N
-
CurveB
Main electrical features
-
Rated operational voltage Ue230 V
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage400 V
-
Max operating voltage253 V
-
Rated impulse withstand voltage4 kV
Electric current
-
Rated residual operating current30 mA
Electric current / temperature
-
Rating current 30°C10 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product125 mm
-
Width of installed product17.5 mm
Power
-
Total power loss under IN3.15 W
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations8000
Equipment
-
Quick connectno
-
Can be accessorizedNo
Standards
-
Standard textEN 62606 ; EN 61009-1
Safety
-
Residual current typeA
Use conditions
-
Operating temperature-25…70 °C
Downloads
-

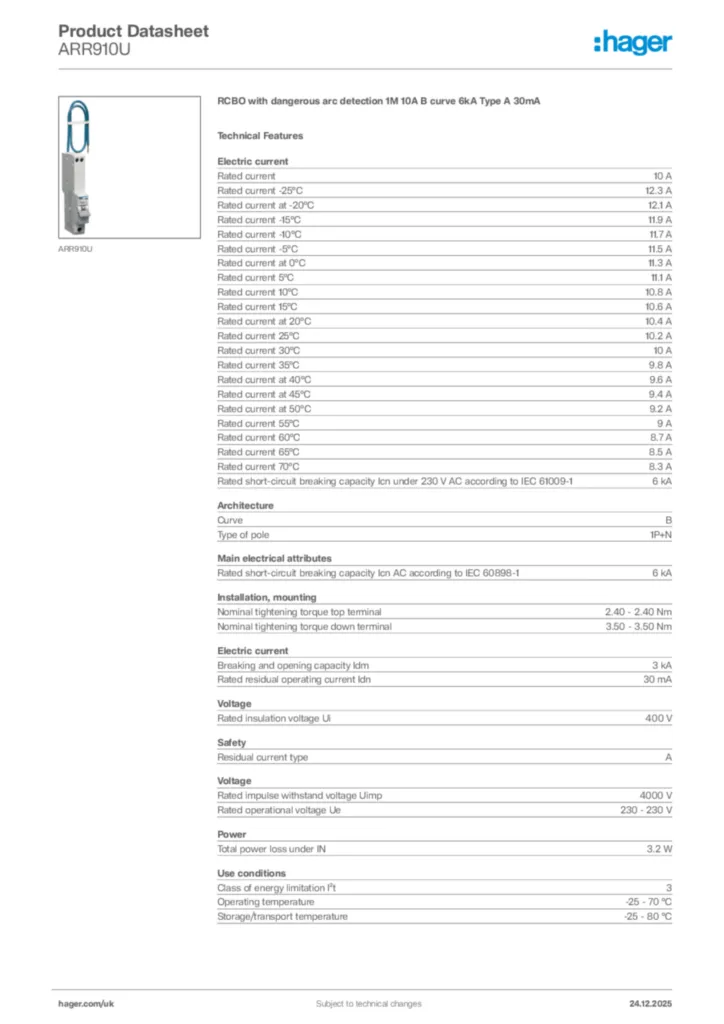

Product image
-
Instruction manual
Instruction manuals for ARR910U
PDF1011 KB
Instruction manuals for ARR910U
DIAG-GUIDE
PDF904 KB
Instruction manuals for ARR910U
PDF2 MB
Instruction manuals for ARR910U
PDF1010 KB -
Product attachment
Product Attachment for ARR910U
PDF3 MB -
Catalogue
Residential Distribution Catalogue
PDF4 MB -
Product licence
Product licence for ARR910U
PDF227 KB -
Declaration of conformity
EU Declaration of conformity for ARR910U
PDF432 KB
EU Declaration of conformity for ARR910U
PDF437 KB
EU Declaration of conformity for ARR910U
Declaration
PDF439 KB
EU Declaration of conformity for ARR910U
Declaration
PDF242 KB -
PEP document
Product environmental profile for ARR910U
PDF339 KB
Product environmental profile for ARR910U
PDF339 KB -
RoHS report
Pollutant guidelines for ARR910U
REACH-declaration 2023-10-20 (english)
PDF33 KB
