MCB with dangerous arc detection 1M 32A B curve 6kA ARM932U
EAN-Nr.
3250611044758
Packaging
1 piece
Price
£173.50
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available
Technical characteristics
Electric current
-
Rated current32 A
-
Rated current -25°C38.6 A
-
Rated current at -20°C38 A
-
Rated current -15°C37.4 A
-
Rated current -10°C36.8 A
-
Rated current -5°C36.2 A
-
Rated current at 0°C35.6 A
-
Rated current 5°C35 A
-
Rated current 10°C34.4 A
-
Rated current 15°C33.8 A
-
Rated current at 20°C33.2 A
-
Rated current 25°C32.6 A
-
Rated current 30°C32 A
-
Rated current 35°C31.3 A
-
Rated current at 40°C30.7 A
-
Rated current at 45°C30 A
-
Rated current at 50°C29.3 A
-
Rated current 55°C28.6 A
-
Rated current 60°C28 A
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-16 kA
Architecture
-
CurveB
-
Type of pole1P+N
Installation, mounting
-
Nominal tightening torque top terminal2.40 - 2.40 Nm
-
Nominal tightening torque down terminal3.50 - 3.50 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Voltage
-
Rated insulation voltage Ui400 V
-
Rated impulse withstand voltage Uimp4,000 V
-
Rated operational voltage Ue230 - 230 V
Power
-
Total power loss under IN9.4 W
Use conditions
-
Class of energy limitation I²t3
-
Operating temperature-25 - 70 °C
-
Storage/transport temperature-25 - 80 °C
Endurance
-
Number of mechanical operations8,000
-
Electric endurance in number of cycles2,000
Capacity
-
Number of modules1
Dimensions
-
Height125 mm
-
Width17.50 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

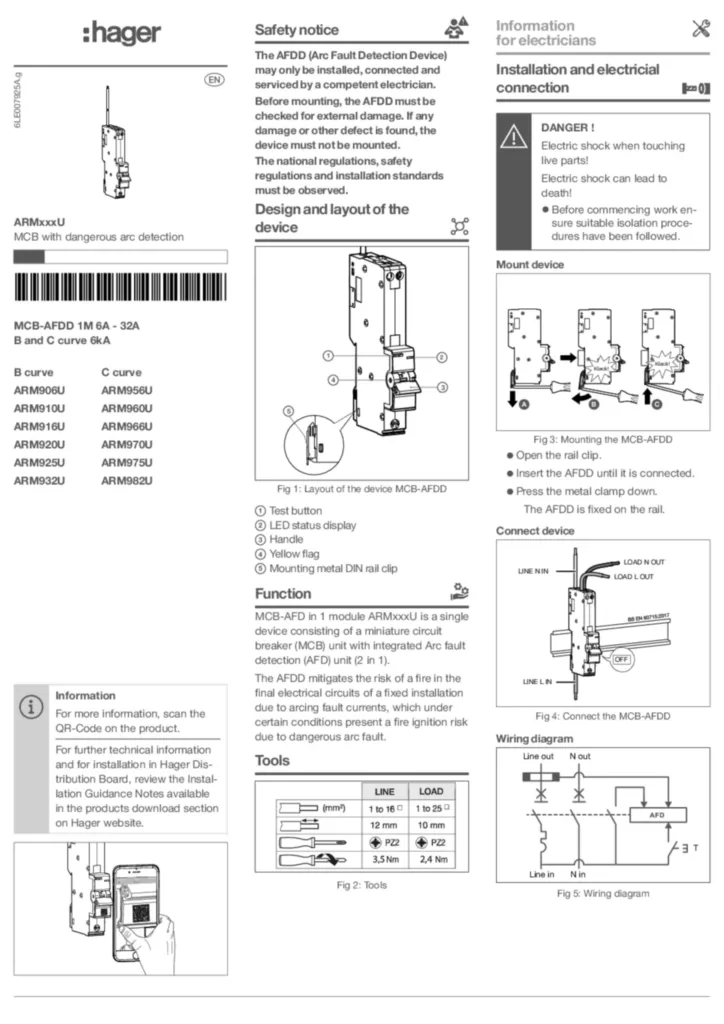

Installation manual
DIAG-GUIDE
PDF903,65 kB
Installation manual International 2022-03-02
PDF2,47 MB
Installation manual en-GB 2023-02-16
PDF1010,39 kB -
Product attachment
Guidence_notes_for_fitting_single_Mod_AFDD_Consumer_units
PDF3,38 MB -

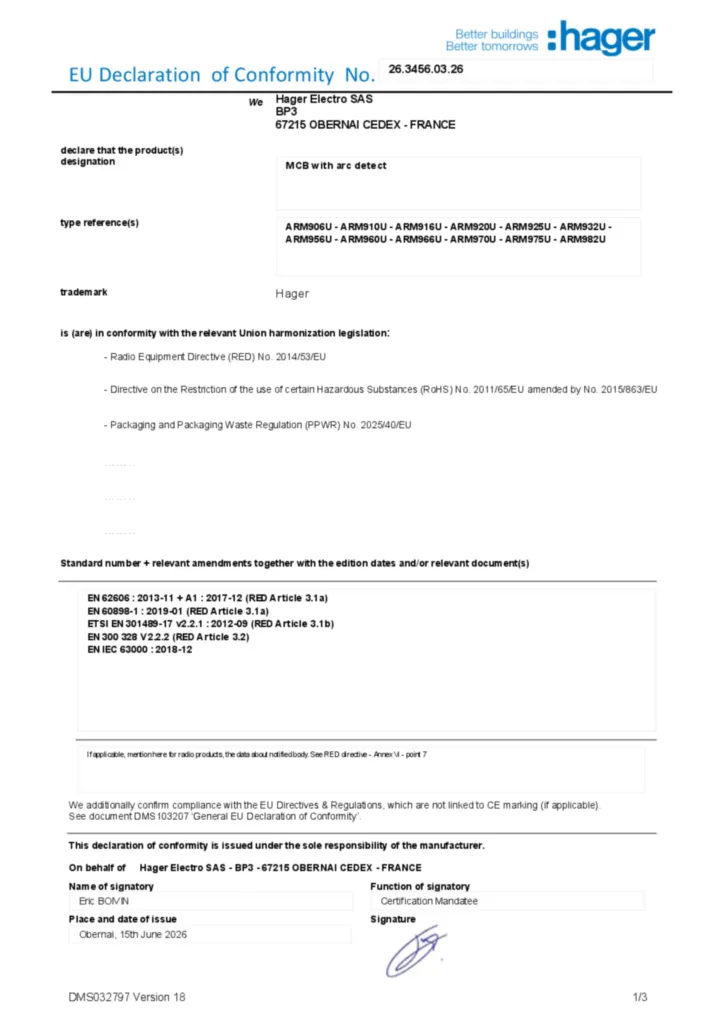

Declaration of conformity
Declaration of conformity en-GB 2024-04-19
PDF434,01 kB
Declaration of conformity en-GB 2024-04-19
PDF429,72 kB
More documentation
