MCB with dangerous arc detection 1M 25A B curve 6kA ARM925U
EAN-Nr.
3250611044741
Packaging
1 piece
£173.50
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Neutral positionright
-
Number of poles2 P
-
Type of pole1P+N
-
CurveB
Main electrical features
-
Rated operational voltage Ue230 V
-
Type of supply voltageAC
Voltage
-
Rated insulation voltage400 V
-
Max operating voltage253 V
-
Rated impulse withstand voltage4 kV
Electric current
-
Rated service breaking capacity Ics AC according IEC 60898-16 kA
-
Rated short circuit breaking capacity Icn under 230V AC according IEC60898-16 kA
Electric current / temperature
-
Rating current 30°C25 A
Dimensions
-
Depth of installed product70 mm
-
Height of installed product125 mm
-
Width of installed product17.5 mm
Power
-
Total power loss under IN6.45 W
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations8000
Equipment
-
Quick connectno
-
Can be accessorizedNo
Standards
-
Standard textEN 62606 ; EN 60898-1
Use conditions
-
Operating temperature-25…70 °C
Downloads
-

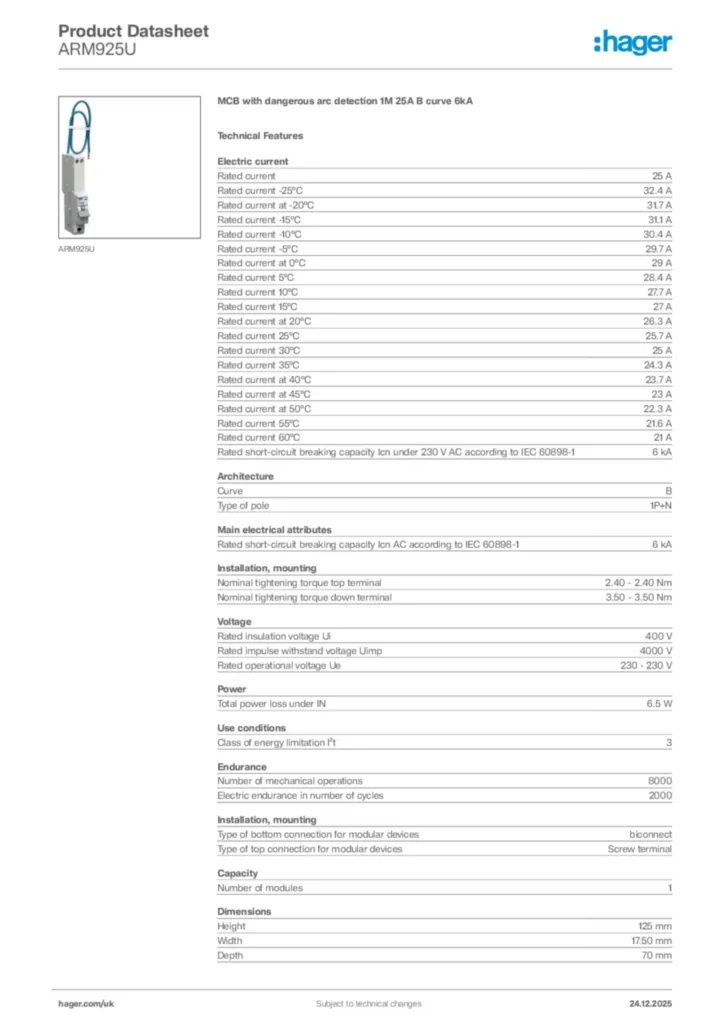

Product image
-
Instruction manual
Instruction manuals for ARM925U
DIAG-GUIDE
PDF904 KB
Instruction manuals for ARM925U
PDF2 MB
Instruction manuals for ARM925U
PDF1010 KB -
Product attachment
Product Attachment for ARM925U
PDF3 MB -
Catalogue
Residential Distribution Catalogue
PDF4 MB -
Product licence
Product licence for ARM925U
PDF227 KB -
Declaration of conformity
EU Declaration of conformity for ARM925U
PDF429 KB
EU Declaration of conformity for ARM925U
Declaration of conformity for MCB with arc defect
PDF334 KB
EU Declaration of conformity for ARM925U
PDF434 KB -
PEP document
Product environmental profile for ARM925U
PDF339 KB
Product environmental profile for ARM925U
PDF339 KB -
RoHS report
Pollutant guidelines for ARM925U
REACH-declaration 2023-10-20 (english)
PDF33 KB
Pollutant guidelines for ARM925U
RoHS-declaration 2023-10-20 (english)
PDF33 KB
More documentation
