cubyko Socket Schuko screwless &childpro wall mounted grey IP55 WNC160
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 25 products available
Referenced by
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA683cubyko Triple horizontal box empty grey IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA694cubyko Link between 2 boxes grey IP55
-
WNA691cubyko Slider for tube and cable grey IP55
-
WNA690Bcubyko Slider for 2 cables white IP55
-
WNA691Bcubyko Slider for tube and cable white IP55
-
WNA686Bcubyko Double vertical box empty white IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA401Bcubyko Single flush adapter composable white IP55
-
WNA690cubyko Slider for 2 cables grey IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA403
cubyko Triple horizontal flush adapter grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
Technical properties
Electric current
-
Rated current16 A
Voltage
-
Rated voltage250 V
-
Nominal voltage250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourGrey
-
RAL code7011
-
Surface finishMatt
-
MaterialPolycarbonate (PC), Polypropylene (PP), Thermoplastic
-
TreatmentUntreated
Dimensions
-
Height76 mm
-
Width76 mm
-
Depth63 mm
-
Number of units2
-
Built-in depth flush-mounted boxes0
-
Built-in depth0
Connection
-
Connector/plug typePlug clamp
Installation, mounting
-
Mounting onSurface mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting
Equipment
-
Connector/plug type socket outletSCHUKO
-
Rotated central insertNo
-
With hinged lidYes
-
With round protective earth pinNo
-
With signal lampNo
-
With lockYes
Accessories
-
Has labelling fieldNo
Cover, door
-
Type of lidSelf-closing hinged cover, can be arrested in end position
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP55
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related SystemsHager cubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

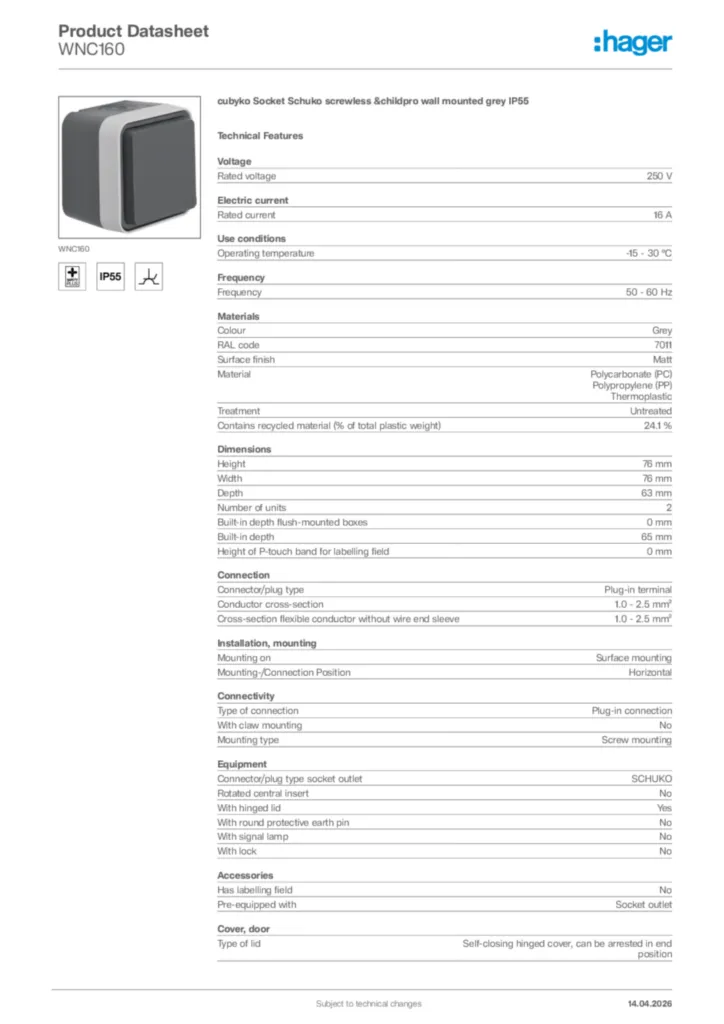

Product datasheet
undefined
PDF -
Tools
Tools de-DE 2024-10-02
URL
Tools de-DE 2025-11-13
URL -
Product certificate
Product certificate en-GB 2024-03-19
PDF1,39 MB -
Declaration of conformity
Declaration of conformity International 2021-07-14
PDF111,30 kB
