cubyko Socket 2P+E detrompage composable white IP55 WNA105B
EAN
3250617175050
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surface-mounted housing for flush-mounted switching device 5 products available
Compatible products
-
Referenced by 25 products available
Complete your system
-
WNA686B
cubyko Double vertical box empty white IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
Referenced by
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA681B
Surface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA682B
cubyko Double horizontal box empty with 2 sliders white IP55
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA683B
cubyko Triple horizontal box empty white IP55
-
WNA683cubyko Triple horizontal box empty grey IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA694cubyko Link between 2 boxes grey IP55
-
WNA691cubyko Slider for tube and cable grey IP55
-
WNA690Bcubyko Slider for 2 cables white IP55
-
WNA691Bcubyko Slider for tube and cable white IP55
-
WNA686B
cubyko Double vertical box empty white IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA401Bcubyko Single flush adapter composable white IP55
-
WNA690cubyko Slider for 2 cables grey IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA403
cubyko Triple horizontal flush adapter grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
Technical properties
Electric current
-
Rated current16 A
Voltage
-
Nominal voltage250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPure white
-
RAL code9010
-
Surface finishMatt
-
MaterialPolycarbonate (PC), Polypropylene (PP)
-
TreatmentUntreated
Dimensions
-
Height75 mm
-
Width75 mm
-
Depth22.80 mm
-
Number of units1
-
Built-in depth flush-mounted boxes35 mm
Connection
-
Connector/plug typeTurn screw lock
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting
Equipment
-
Connector/plug type socket outletEarthing pin
-
Rotated central insertNo
-
With hinged lidYes
-
With round protective earth pinYes
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldYes
Cover, door
-
Type of lidSelf-closing hinged cover, can be arrested in end position
Capacity
-
Number of modules2
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP55
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related SystemsHager cubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

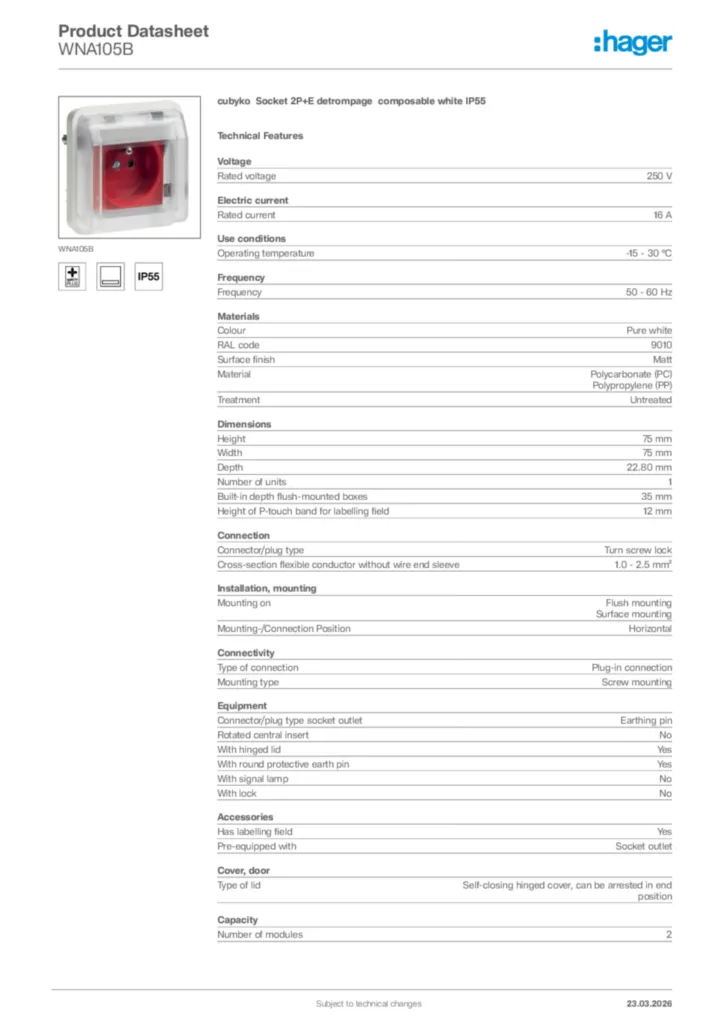

Product datasheet
