Cubyko LT 2-gang 2-way push-button 1O/1F composable with light grey IP55 WNA045
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Illumination insert for domestic switching devices 8 products available
Compatible products
-
Referenced by 25 products available
Complete your system
-
WUZ699Control lamp 250V White integrated range "L" form
-
WUZ698Signal lamp 250V White integrated range "I" form
-
WUZ697Signal lamp 28V Red, integrated range "I" form
-
WUZ696Control lamp 250V Blue integrated range "L" form
-
WUZ695Signal lamp 250V Red integrated range "I" form
-
WUZ692Signal lamp 28V Blue integrated range "I" form
-
WUZ691
Control lamp 250V Red integrated range "L" form
-
WUZ690Signal lamp 250V Bleu integrated range "I" form
Referenced by
-
WNA690Bcubyko Slider for 2 cables white IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA686Bcubyko Double vertical box empty white IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA683cubyko Triple horizontal box empty grey IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA681cubyko Single box empty grey IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA694cubyko Link between 2 boxes grey IP55
-
WNA691cubyko Slider for tube and cable grey IP55
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA691Bcubyko Slider for tube and cable white IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA401Bcubyko Single flush adapter composable white IP55

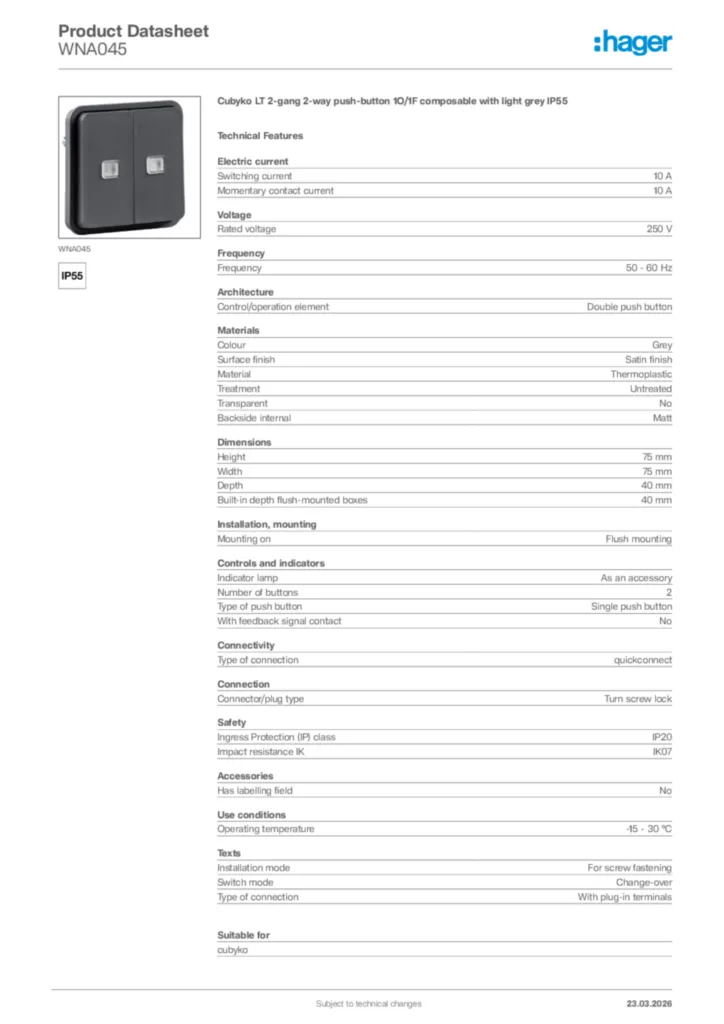

Technical properties
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementDouble push button
Materials
-
ColourGrey
-
Surface finishSatin finish
-
MaterialThermoplastic
-
TreatmentUntreated
-
TransparentNo
-
Backside internalMat
Dimensions
-
Height75 mm
-
Width75 mm
-
Depth40 mm
-
Built-in depth flush-mounted boxes40 mm
Installation, mounting
-
Mounting onFlush mounting
Controls and indicators
-
Indicator lampAs an accessory
-
Number of buttons2
-
Type of push buttonSingle push button
-
With feedback signal contactNo
Connectivity
-
Type of connectionquickconnect
Connection
-
Connector/plug typeTurn screw lock
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK07
Accessories
-
Has labelling fieldNo
-
Related Systemscubyko
