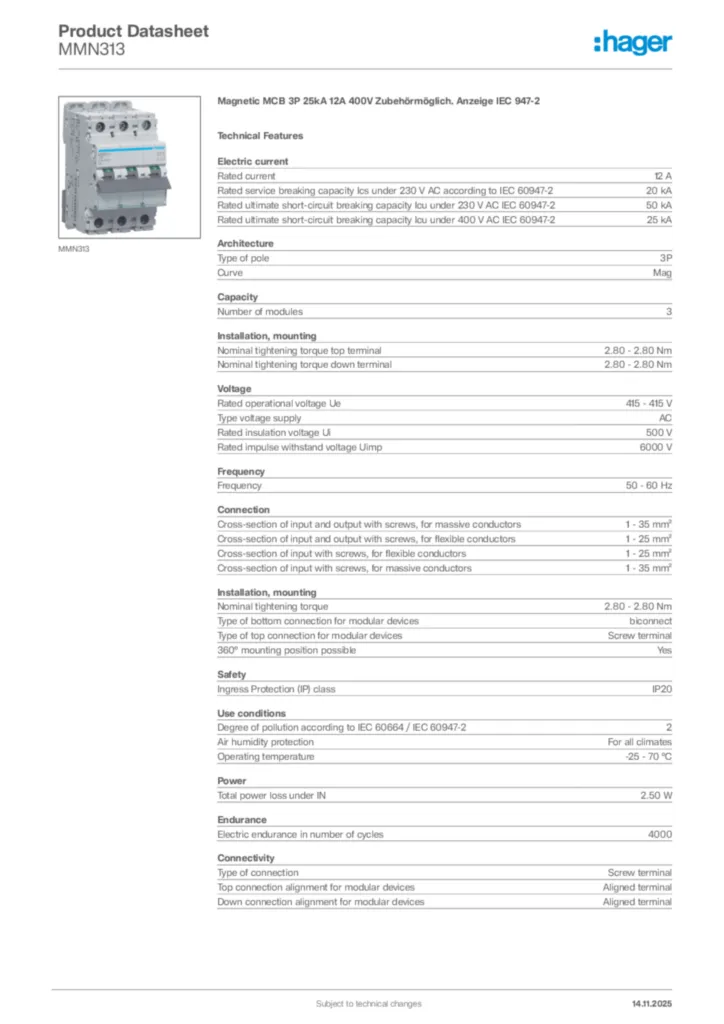

Magnetic MCB 3P 25kA 12A 400V Zubehörmöglich. Anzeige IEC 947-2 MMN313
EAN
3250614440182
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Terminal cover 1 products available -
AOB type AC/A-SEL 1 products available -
AOB type A-HI 5 products available -
AOB type AC 7 products available
Complete your system
-
BF325
Earth leakage add-on block 3P 25A 300mA A high immunity Class
-
BD340Earth leakage add-on block 3P 40A 30mA A high immunity Class
-
BF363Earth leakage add-on block 3P 63A 300mA A high immunity Class
-
BD325Earth leakage add-on block 3P 25A 30mA A high immunity Class
-
BD363Earth leakage add-on block 3P 63A 30mA A high immunity Class
-
BD326
Earth leakage add-on block 3P 25A 30mA AC Class
-
BG364Earth leakage add-on block 3P 63A 500mA AC Class
-
BD364
Earth leakage add-on block 3P 63A 30mA AC Class
-
BF326Earth leakage add-on block 3P 25A 300mA AC Class
-
BF364Earth leakage add-on block 3P 63A 300mA AC Class
-
BD341Earth leakage add-on block 3P 40A 30mA AC Class
-
BF341Earth leakage add-on block 3P 40A 300mA AC Class
Technical properties
Electric current
-
Rated current12 A
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-220 kA
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-225 kA
Architecture
-
Type of pole3P
-
CurveMag
Capacity
-
Number of modules3
Installation, mounting
-
Nominal tightening torque top terminal2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.80 - 2.80 Nm
-
Nominal tightening torque2.80 - 2.80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Voltage
-
Rated operational voltage Ue415 - 415 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Air humidity protectionFor all climates
-
Operating temperature-25 - 70 °C
Power
-
Total power loss under IN2.50 W
Endurance
-
Electric endurance in number of cycles4000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width52.50 mm
-
Depth70 mm
