Earth leakage add-on block 3P 63A 30mA A high immunity Class BD363
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 28 products available
Referenced by
-
NDN363AMCB 3P 10kA/15kA D-63A 3M
-
NF350AMCB 3P 6/10kA C-50A 3M
-
MMN310Magnetic MCB 3P 25kA 10A 400V access. indicator IEC 947-2
-
MMN304Magnetic MCB 3P 25kA 4A 400V Zubehörmöglich. Anzeige IEC 947-2
-
MMN300Magnetic MCB 3P 25kA 0.63A 400V Zubehörmöglich. Anzeige IEC 947-2
-
NRN350MCB 3P 15kA C-50A 3M
-
NF363AMCB 3P 6/10kA C-63A 3M
-
NFN350MCB 3P 6/10kA C-50A 3M
-
NGN350MCB 3P 6/10kA D-50A 3M
-
NFN363MCB 3P 6/10kA C-63A 3M
-
NDN350AMCB 3P 10kA/15kA D-50A 3M
-
NBN350AMCB 3P 10kA/15kA B-50A 3M
-
NBN363AMCB 3P 10kA/15kA B-63A 3M
-
NEN363MCB 3P 6/10kA B-63A 3M
-
NCN350AMCB 3P 10kA/15kA C-50A 3M
-
NCN363AMCB 3P 10kA/15kA C-63A 3M
-
NGN363MCB 3P 6/10kA D-63A 3M
-
MMN316Magnetic MCB 3P 25kA 16A 400V Zubehörmöglich. Anzeige IEC 947-2
-
MMN313Magnetic MCB 3P 25kA 12A 400V Zubehörmöglich. Anzeige IEC 947-2
-
NQN363MCB 3P 15kA B-63A 3M
Technical properties
Electric current
-
Rated current63 A
-
Rated residual operating current Idn30 mA
Architecture
-
Number of poles3
Capacity
-
Number of modules3
Frequency
-
Frequency50 - 50 Hz
Power
-
Total power loss under IN9.7 W
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
Endurance
-
Electric endurance in number of cycles2000
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

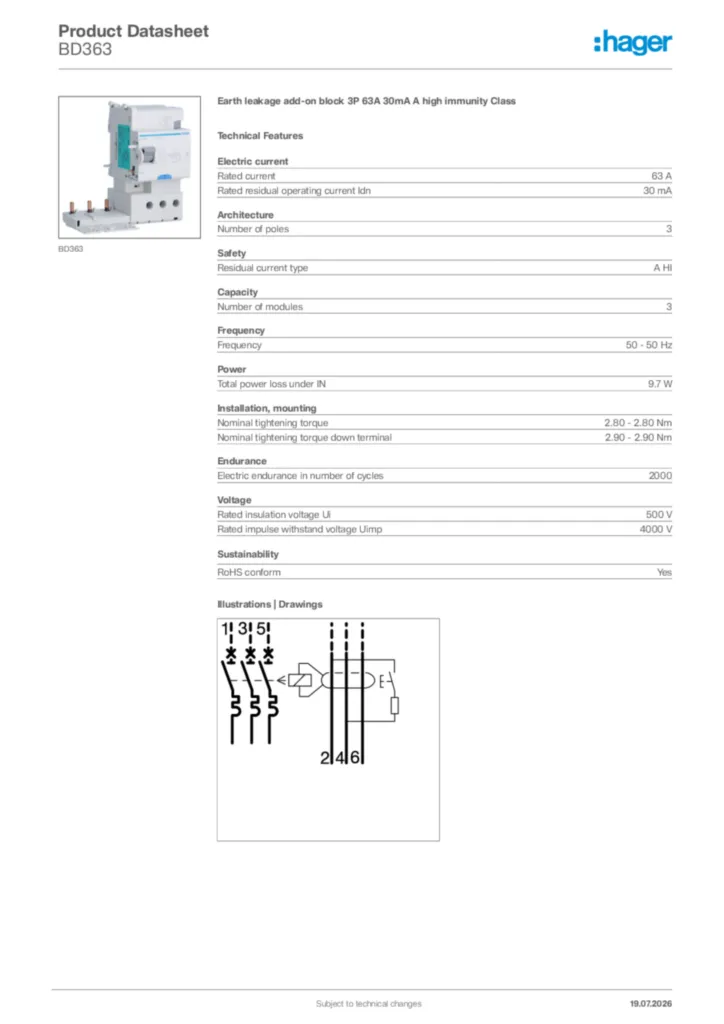

Hager Product data sheet BD363
Earth leakage add-on block 3P 63A 30mA A high immunity Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
More documentation
Discover more of this product range
-
5
-
1
BR464NEarth leakage add-on block 4P 63A 500mA AC S Class -
2
BE264Earth leakage add-on block 2P 63A 100mA AC Class -
3
BF341Earth leakage add-on block 3P 40A 300mA AC Class -
4
BP464Earth leakage add-on block 4P 63A 300mA AC S Class -
5
BFH825Earth leakage add-on-block with double output 4P 25A 300mA A high immunity class
