Earth leakage add-on block 2P 25A 300mA A high immunity Class BF225
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 105 products available
Referenced by
-
NEN206MCB 2P 6/10kA B-6A 2M
-
MCN201MCB 2P 6kA C-1A 2M
-
NDN204AMCB 2P 10kA/15kA D-4A 2M
-
NCN203AMCB 2P 10kA/15kA C-3A 2M
-
NBN210AMCB 2P 10kA/15kA B-10A 2M
-
NRN225MCB 2P 25kA C-25A 2M
-
NGN210MCB 2P 6/10kA D-10A 2M
-
NFN202MCB 2P 6/10kA C-2A 2M
-
NDN220AMCB 2P 10kA/15kA D-20A 2M
-
NBN225AMCB 2P 10kA/15kA B-25A 2M
-
NCN204AMCB 2P 10kA/15kA C-4A 2M
-
NGN225MCB 2P 6/10kA D-25A 2M
-
NCN216AMCB 2P 10kA/15kA C-16A 2M
-
NDN225AMCB 2P 10kA/15kA D-25A 2M
-
NFN210MCB 2P 6/10kA C-10A 2M
-
NBN216AMCB 2P 10kA/15kA B-16A 2M
-
NBN206AMCB 2P 10kA/15kA B-6A 2M
-
NGN204MCB 2P 6/10kA D-4A 2M
-
NBN220AMCB 2P 10kA/15kA B-20A 2M
-
NRN206MCB 2P 25kA C-6A 2M
Technical properties
Electric current
-
Rated current25 A
-
Rated residual operating current Idn300 mA
Architecture
-
Number of poles2
Safety
-
Residual current typeA HI
Capacity
-
Number of modules2
Frequency
-
Frequency50 - 50 Hz
Power
-
Total power loss under IN2 W
Installation, mounting
-
Nominal tightening torque1.70 - 1.70 Nm
-
Nominal tightening torque down terminal2.20 - 2.20 Nm
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations2000
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

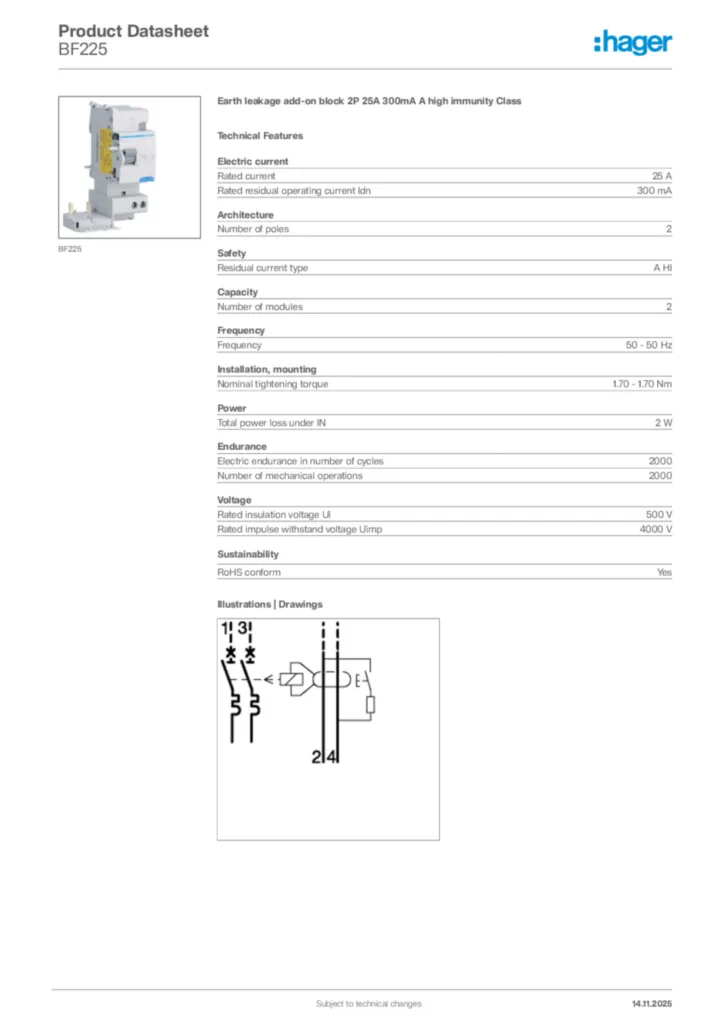

Hager Product data sheet BF225
Earth leakage add-on block 2P 25A 300mA A high immunity Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
