Earth leakage add-on-block with double output 4P 63A 30mA A high immunity class BDH863

Name: BDH863
Brand: Hager
SKU: BDH8639

EAN

3250611310068

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

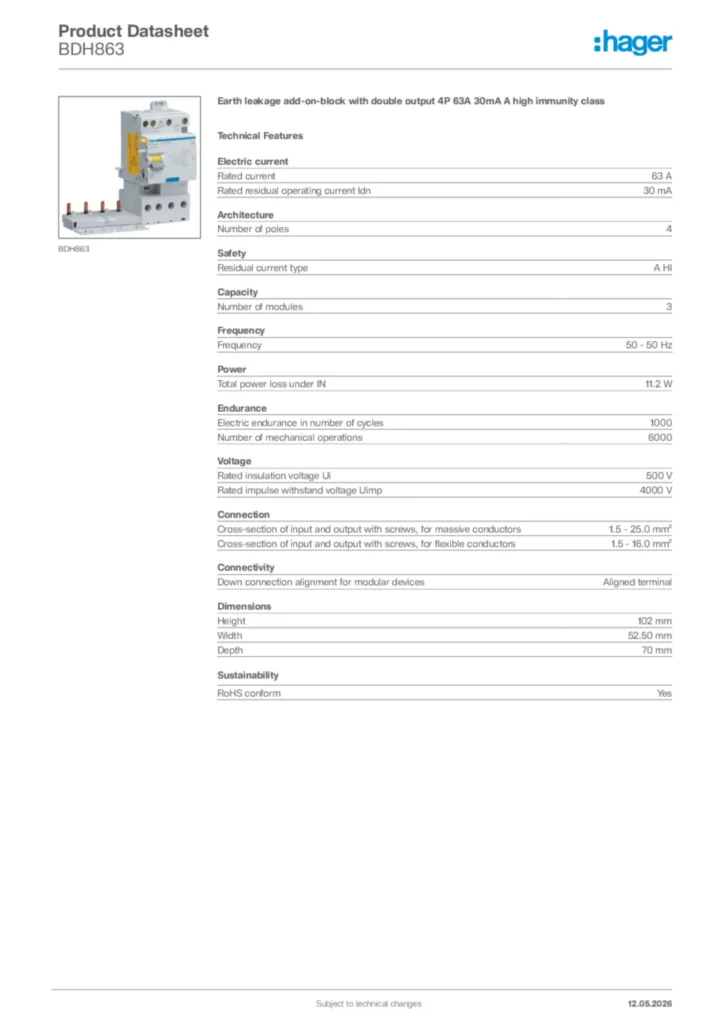

Download the data sheet

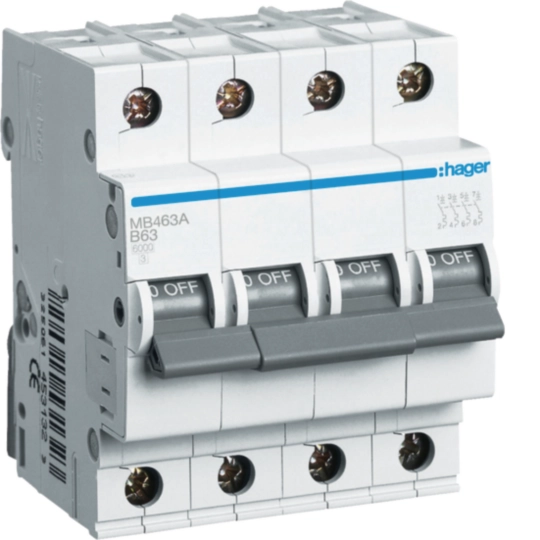

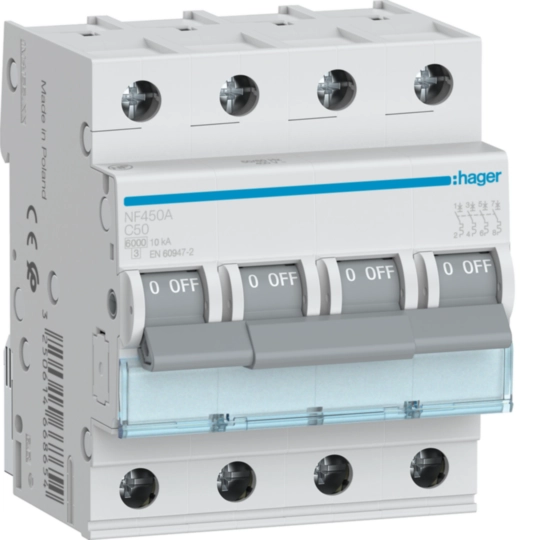

Complete your system

Referenced by 24 products available

Technical properties

Rated current

63 A
Rated residual operating current Idn

30 mA

Number of poles

4

Residual current type

A HI

Number of modules

3

Frequency

50 - 50 Hz

Total power loss under IN

11.2 W

Electric endurance in number of cycles

1000
Number of mechanical operations

6000

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Cross-section of input and output with screws, for massive conductors

1.5 - 25.0 mm²
Cross-section of input and output with screws, for flexible conductors

1.5 - 16.0 mm²

Down connection alignment for modular devices

Aligned terminal

Height

102 mm
Width

52.50 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
