The Hager Earth leakage add-on block 4P 63A 100mA AC Class provides residual current protection when coupled to a compatible 4‑pole MCB. Rated 63A, Idn 100mA, it suits 230/400V, 50Hz three‑phase+N installations for fire/equipment protection. With 500V insulation and 4kV impulse withstand, it’s robust and reliable. Neutral on the left. Ideal for residential and commercial panels.

EAN

3250611354642

Packaging

1 Piece

Add-on blocks for MCB and multipolar

Earth leakage add-on block 2P 40A 300mA AC Class Left Neutral 2 Modules BE464

Technical properties
Environmental value
Documentations
More products

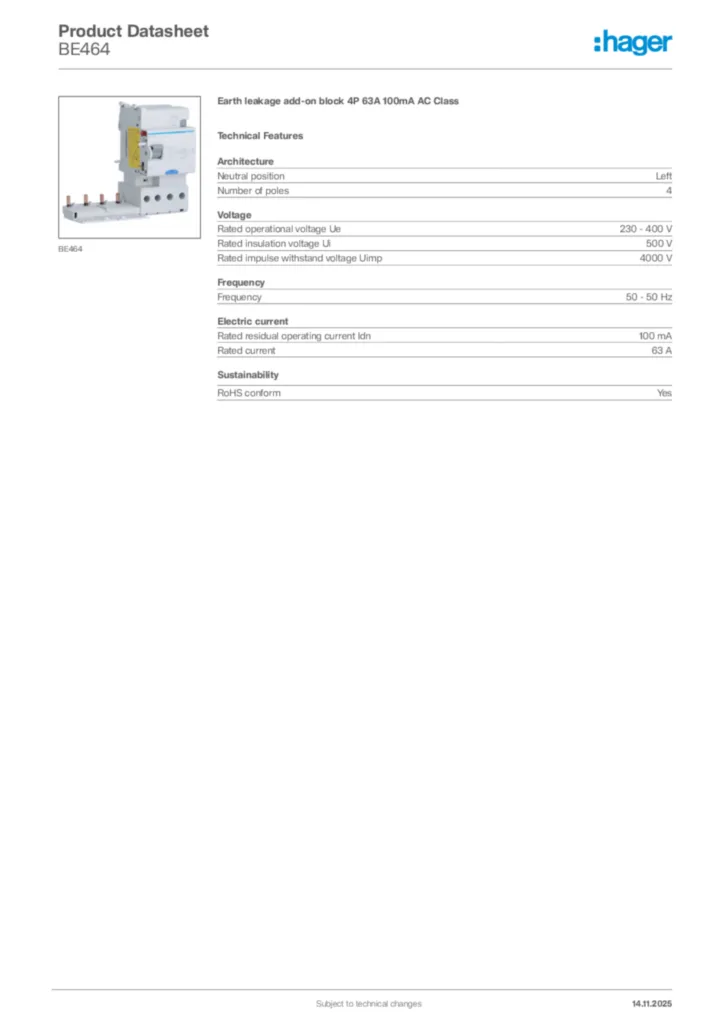

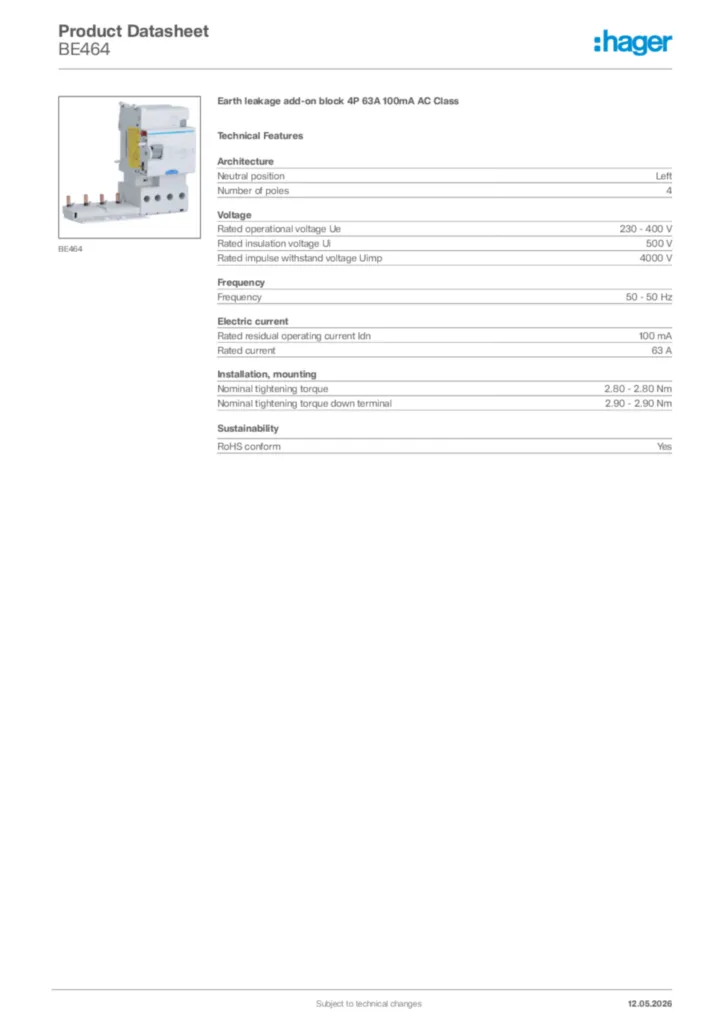

Download the data sheet

Technical properties

Neutral position

Left
Number of poles

4

Rated operational voltage Ue

230 - 400 V
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 50 Hz

Rated residual operating current Idn

100 mA
Rated current

63 A

Nominal tightening torque

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.90 - 2.90 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
