The Hager 3P Earth Leakage Add-on Block 40A 300mA AC Class adds residual current protection to compatible 3-pole breakers. Rated 230-400 V, 50 Hz, it suits three-phase installations to reduce indirect contact and fire risks. Compact 3-module width with left neutral, Ui 500 V and 4 kV impulse withstand for robust performance.
EAN
3250611363415
Packaging
1 Piece
Modular switch 3P 80A 400V AC AC22 category IP20 3 modules BF341
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles3
Capacity
-
Number of modules3
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn300 mA
-
Rated current40 A
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

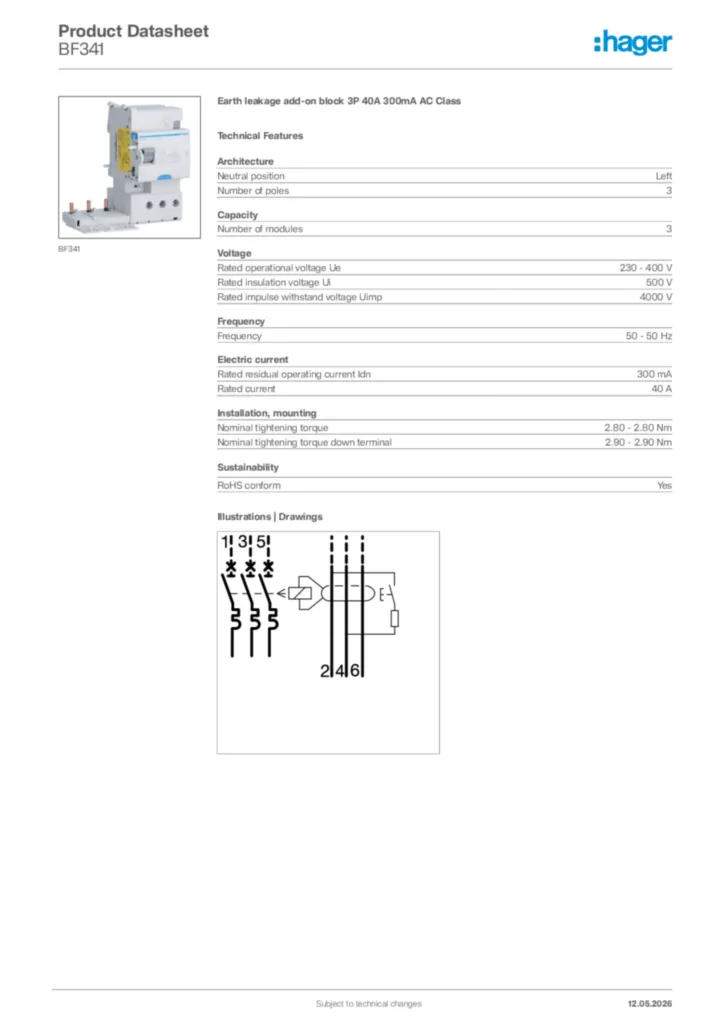

Product datasheet
Hager Product data sheet BF341
Earth leakage add-on block 3P 40A 300mA AC Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
