Earth leakage add-on block 2P 63A 300mA A high immunity Class BF263

EAN
3250611362630
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Earth leakage add-on block 2P 63A 300mA A high immunity Class

BF263

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

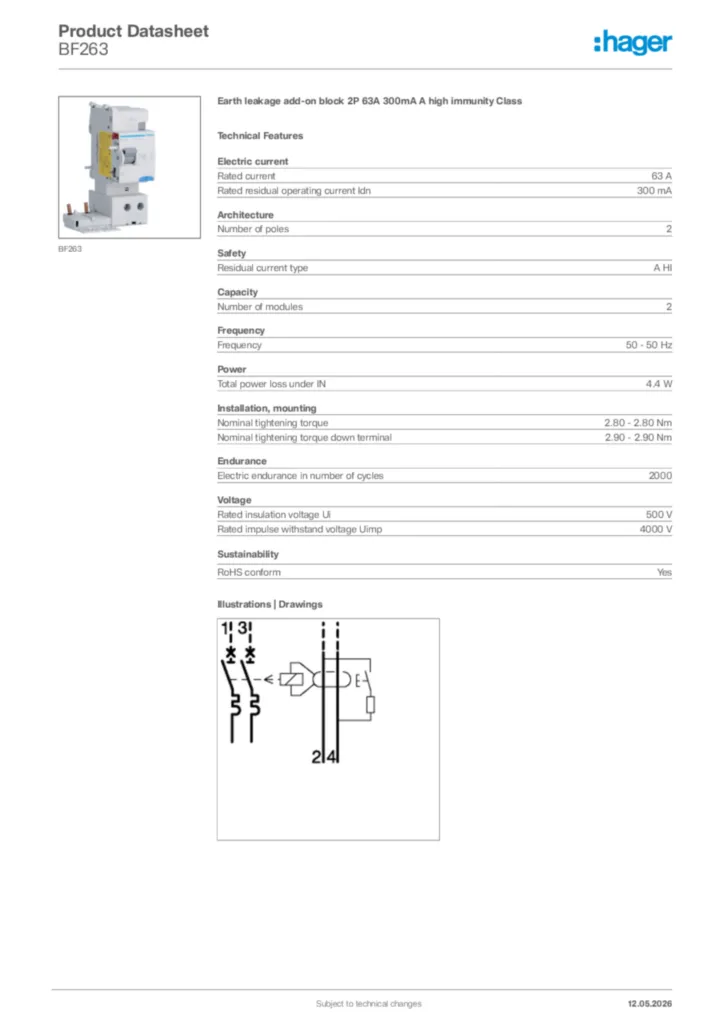

Download the data sheet

Complete your system

Compatible products

  • Referenced by 78 products available

Referenced by

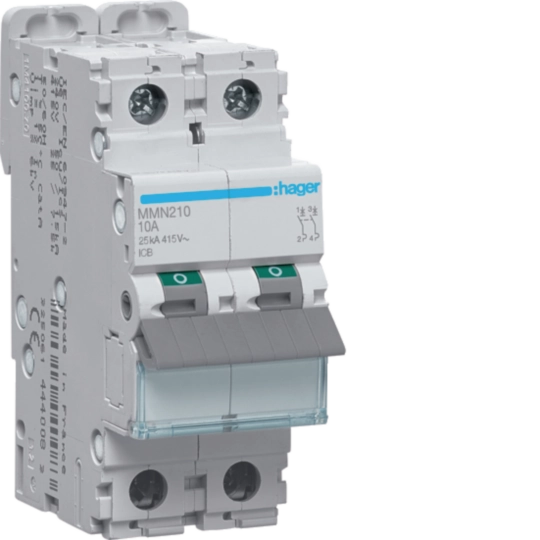

  • MMN210

    Magnetic MCB 2P 25kA 10A 400V Zubehörmöglich. Anzeige IEC 947-2
    0.00 €  / *
  • NDN263A

    MCB 2P 10kA/15kA D-63A 2M
    0.00 €  / *

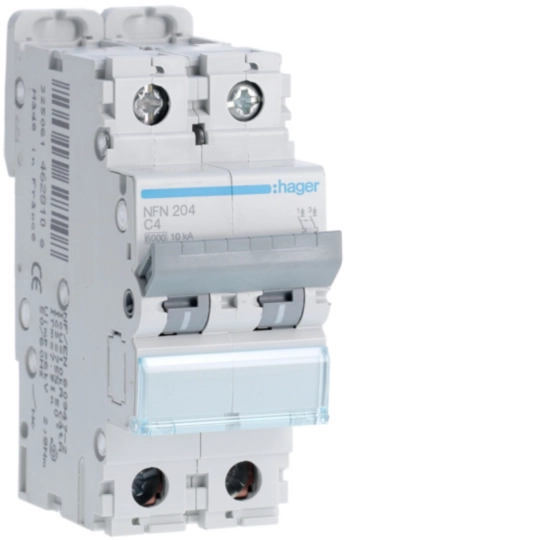

  • NFN204

    MCB 2P 6/10kA C-4A 2M
    0.00 €  / *
  • NRN232

    MCB 2P 20kA C-32A 2M
    0.00 €  / *
  • NEN206

    MCB 2P 6/10kA B-6A 2M
    0.00 €  / *
  • NGN250

    MCB 2P 6/10kA D-50A 2M
    0.00 €  / *
  • NDN250A

    MCB 2P 10kA/15kA D-50A 2M
    0.00 €  / *
  • NBN263A

    MCB 2P 10kA/15kA B-63A 2M
    0.00 €  / *
  • NGN204

    MCB 2P 6/10kA D-4A 2M
    0.00 €  / *
  • NFN250

    MCB 2P 6/10kA C-50A 2M
    0.00 €  / *
  • NFN240

    MCB 2P 6/10kA C-40A 2M
    0.00 €  / *
  • NGN225

    MCB 2P 6/10kA D-25A 2M
    0.00 €  / *
  • NCN263A

    MCB 2P 10kA/15kA C-63A 2M
    0.00 €  / *
  • NFN202

    MCB 2P 6/10kA C-2A 2M
    0.00 €  / *
  • NBN250A

    MCB 2P 10kA/15kA B-50A 2M
    0.00 €  / *
  • NGN210

    MCB 2P 6/10kA D-10A 2M
    0.00 €  / *
  • NRN225

    MCB 2P 25kA C-25A 2M
    0.00 €  / *
  • NFN203

    MCB 2P 6/10kA C-3A 2M
    0.00 €  / *
  • NRN250

    MCB 2P 15kA C-50A 2M
    0.00 €  / *
  • NEN240

    MCB 2P 6/10kA B-40A 2M
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    63 A
  • Rated residual oper­ating current Idn
    300 mA
Archi­tec­ture
  • Number of poles
    2
Safety
  • Residual current type
    A HI
Capa­city
  • Number of modules
    2
Frequency
  • Frequency
    50 - 50 Hz
Install­a­tion, mounting
  • Nominal tight­ening torque
    2.80 - 2.80 Nm
Power
  • Total power loss under IN
    4.4 W
Endur­ance
  • Elec­tric endur­ance in number of cycles
    2000
Voltage
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    4000 V

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration BF263
PDF
Hager RoHS report BF263
PDF

Downloads

  • Image BF263 | Hager Africa

    Product Image BF263

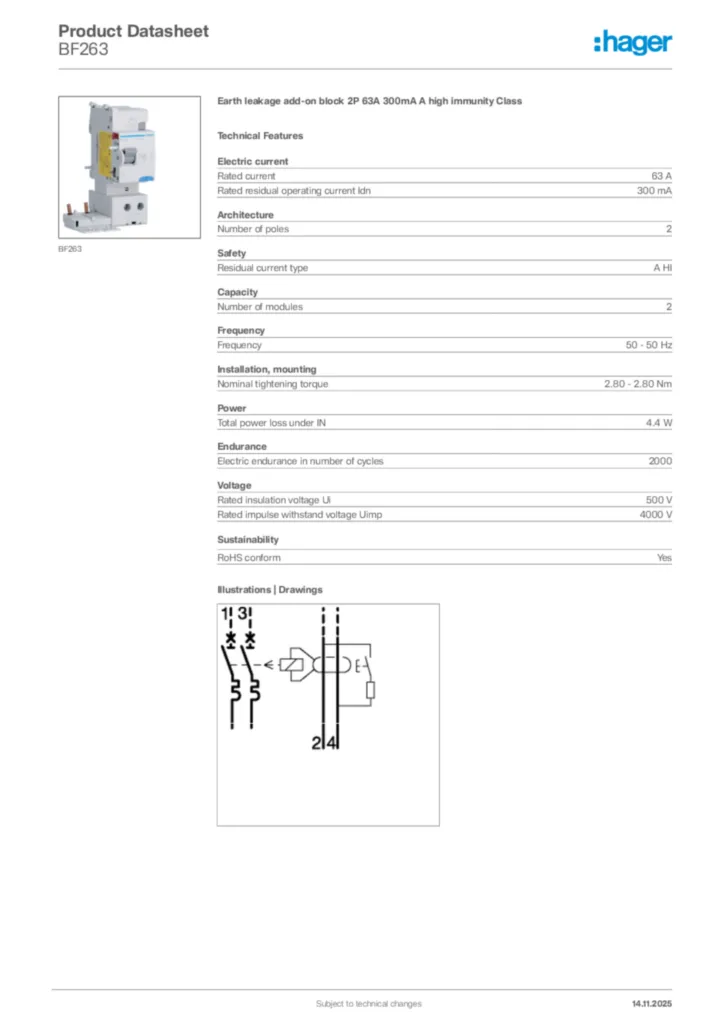

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Installation manual

    Image Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29 | Hager Africa

    Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29

    PDF
    1,61 MB

  • Declaration of conformity

    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-11-10

    PDF
    920,46 kB
    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-12-07

    PDF
    1,14 MB
    Image EU Declaration of Conformity | Hager Africa

    EU Declaration of Conformity

    Declaration of conformity en-GB 2024-11-12

    PDF
    452,70 kB
