The Hager earth leakage add-on block 4P 25A 300mA AC class with double output adds residual current protection to compatible modular devices, guarding against earth faults and fire risk. Rated 25A, Idn 300mA, 230-400 V, 50 Hz, Ui 500 V, Uimp 4 kV. Compact 3 modules (52.5×102×70 mm) with left neutral and aligned terminals for quick wiring. Ideal for 3-phase residential and commercial boards.
EAN
3250611310075
Packaging
1 Piece
Earth leakage add-on block 4P 63A 500mA AC class 230-400V BFC825
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles4
Capacity
-
Number of modules3
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn300 mA
-
Rated current25 A
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height102 mm
-
Width52.50 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

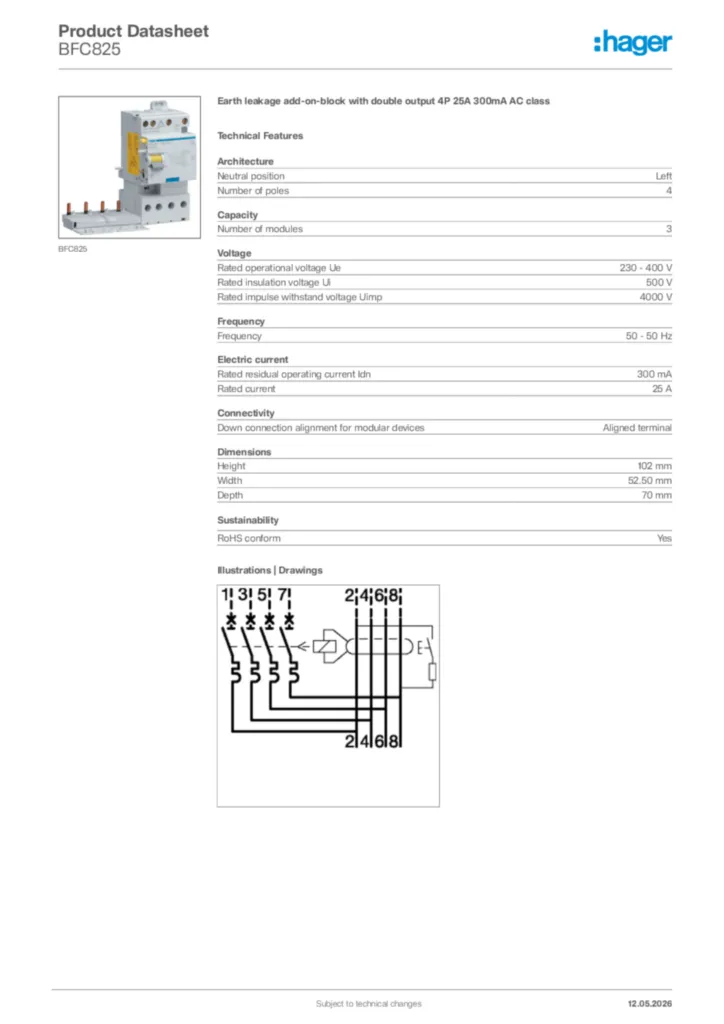

Hager Product data sheet BFC825
Earth leakage add-on-block with double output 4P 25A 300mA AC class
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2018-12-06
PDF79,82 kB
