The Hager Earth leakage add-on block 4P 25A 300mA AC Class provides residual current protection against earth faults for 3-phase+N circuits. With 300 mA Idn, it enhances fire protection on 230/400 V networks. Rated 25 A, AC type, 2 modules, left neutral. Ui 500 V and 4 kV impulse withstand add robustness. Ideal for residential or commercial panels, it mounts beside compatible breakers to complete protection.
EAN
3250611364269
VPE
1 piece
Earth leakage add-on block 2P 63A 300mA AC class, 2 modules BF426
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Architecture
-
Neutral positionLeft
-
Number of poles4
Capacity
-
Number of modules2
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn300 mA
-
Rated current IN25 A
Installation, mounting
-
Nominal tightening torque1.70 - 1.70 Nm
-
Nominal tightening torque down terminal2.20 - 2.20 Nm
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

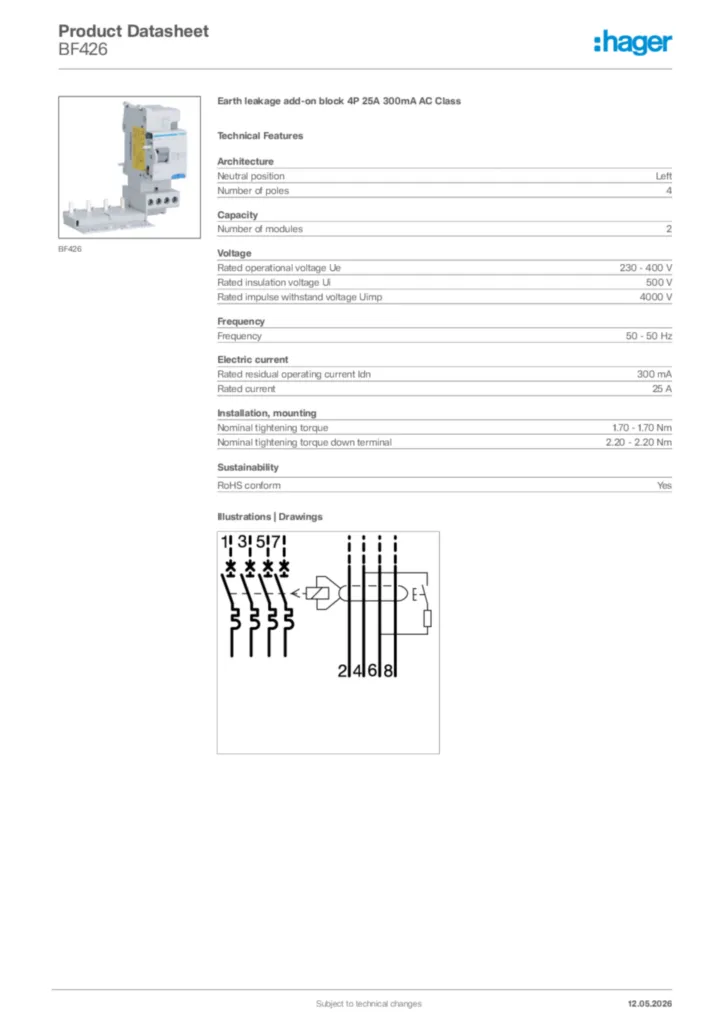

Hager Product data sheet BF426
