The Hager Earth Leakage Add-on Block 2P 25A 300mA AC Class provides residual current protection when paired with a compatible MCB. With 230-400 V Ue, 25 A rating and 300 mA Idn (AC class for sinusoidal faults), it helps reduce fire risk and equipment damage. Compact 2-module design with left neutral, Ui 500 V and 4 kV impulse withstand. Ideal for residential and light commercial panels.

EAN

3250611362265

Packaging

1 Piece

Add-on blocks for MCB and multipolar

Earth leakage add-on block 4P 40A 30mA AC double output, left N, 3M BF226

Technical properties
Environmental value
Documentations
More products

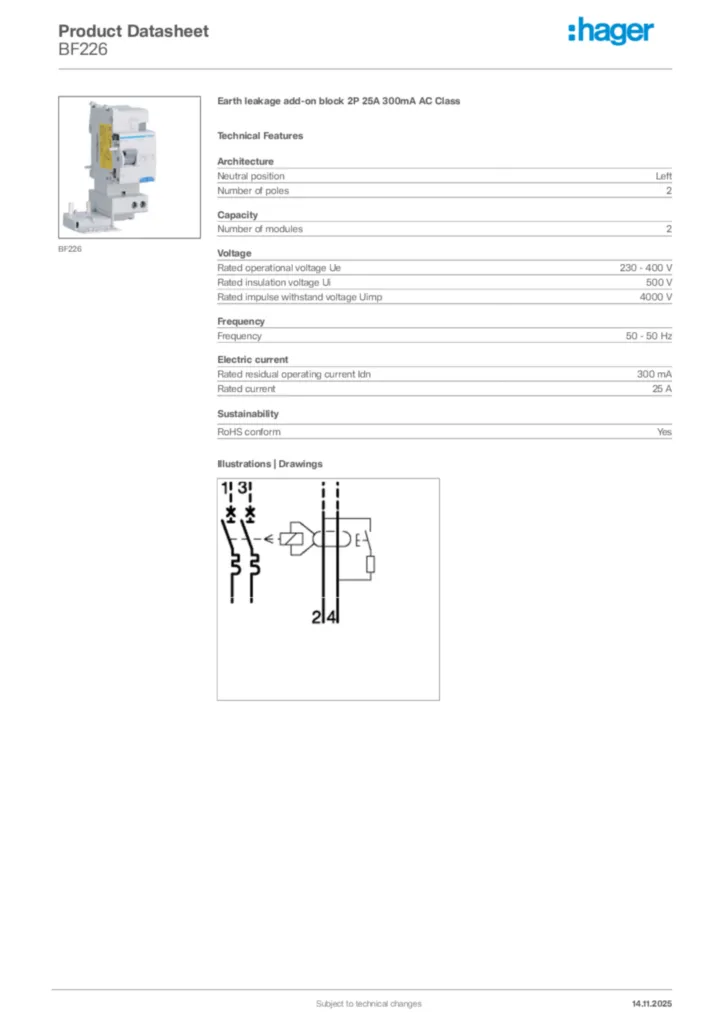

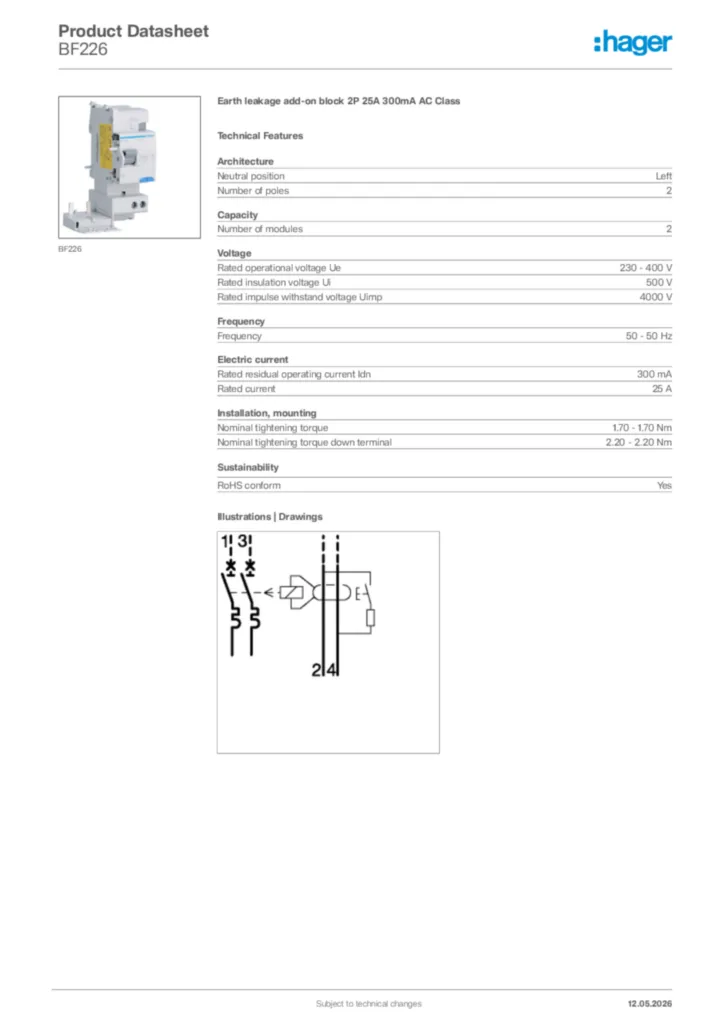

Download the data sheet

Technical properties

Neutral position

Left
Number of poles

2

Number of modules

2

Rated operational voltage Ue

230 - 400 V
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 50 Hz

Rated residual operating current Idn

300 mA
Rated current

25 A

Nominal tightening torque

1.70 - 1.70 Nm
Nominal tightening torque down terminal

2.20 - 2.20 Nm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
