Earth leakage add-on block 3P 63A 300mA AC Class BF364
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 98 products available
Referenced by
-
NBN320AMCB 3P 10kA/15kA B-20A 3M
-
NDN363AMCB 3P 10kA/15kA D-63A 3M
-
NQN310MCB 3P 25kA B-10A 3M
-
NCN363AMCB 3P 10kA/15kA C-63A 3M
-
NGN332MCB 3P 6/10kA D-32A 3M
-
NFN310MCB 3P 6/10kA C-10A 3M
-
NEN363MCB 3P 6/10kA B-63A 3M
-
NBN306AMCB 3P 10kA/15kA B-6A 3M
-
NFN325MCB 3P 6/10kA C-25A 3M
-
NBN310AMCB 3P 10kA/15kA B-10A 3M
-
NFN320MCB 3P 6/10kA C-20A 3M
-
NBN363AMCB 3P 10kA/15kA B-63A 3M
-
NDN310AMCB 3P 10kA/15kA D-10A 3M
-
NBN350AMCB 3P 10kA/15kA B-50A 3M
-
NDN350AMCB 3P 10kA/15kA D-50A 3M
-
NFN363MCB 3P 6/10kA C-63A 3M
-
NRN306MCB 3P 25kA C-6A 3M
-
NGN304MCB 3P 6/10kA D-4A 3M
-
NCN301AMCB 3P 10kA/15kA C-1A 3M
-
NCN304AMCB 3P 10kA/15kA C-4A 3M
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles3
Capacity
-
Number of modules3
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn300 mA
-
Rated current63 A
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

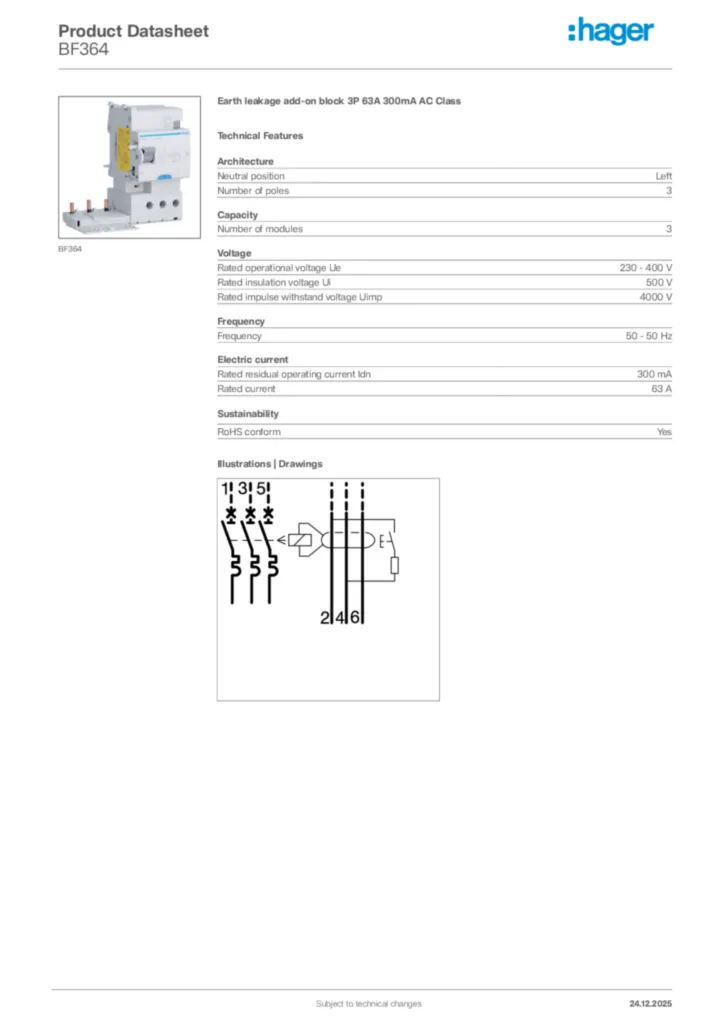

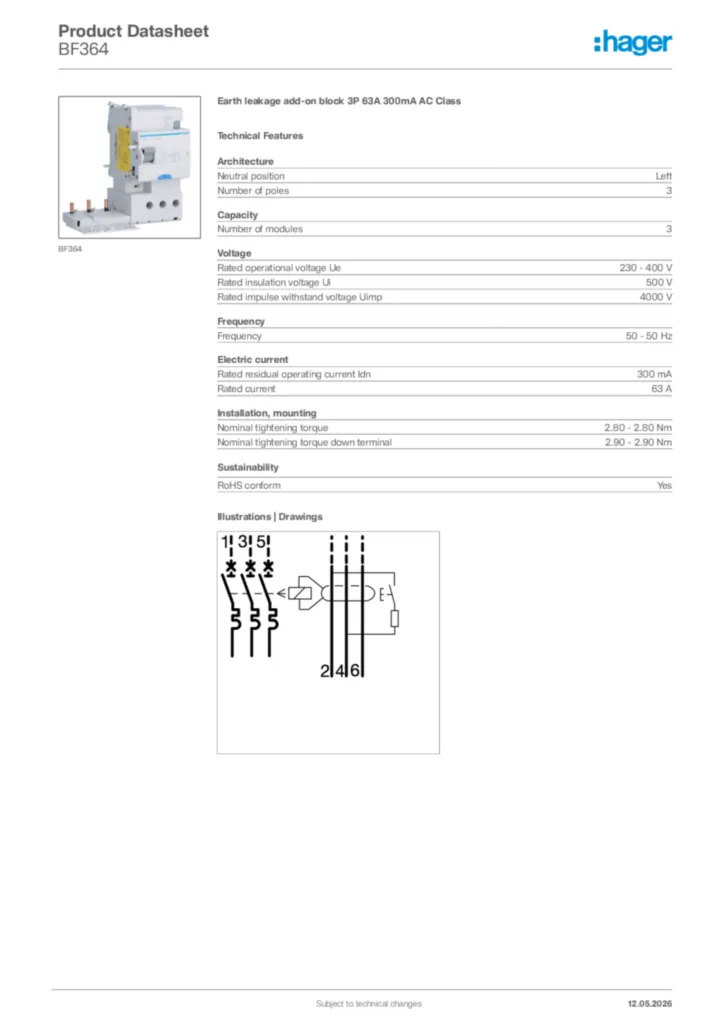

Hager Product data sheet BF364
Earth leakage add-on block 3P 63A 300mA AC Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
