The Hager 3P 63A 30mA AC-class earth leakage add-on block provides residual-current protection when paired with compatible three-pole breakers. Its 30mA sensitivity enhances personal safety and fire prevention, while 63A capacity suits demanding circuits. Rated Ui 500V with 4kV impulse withstand for robustness on 50Hz networks. Left neutral and 3-module width streamline wiring and panel space.
EAN
3250611343646
VPE
1 piece
Single-phase kWh meter 1P+N Direct 80A MID Modbus RS-485 2 Modules BD364
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Architecture
-
Neutral positionLeft
-
Number of poles3
Capacity
-
Number of modules3
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn30 mA
-
Rated current IN63 A
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

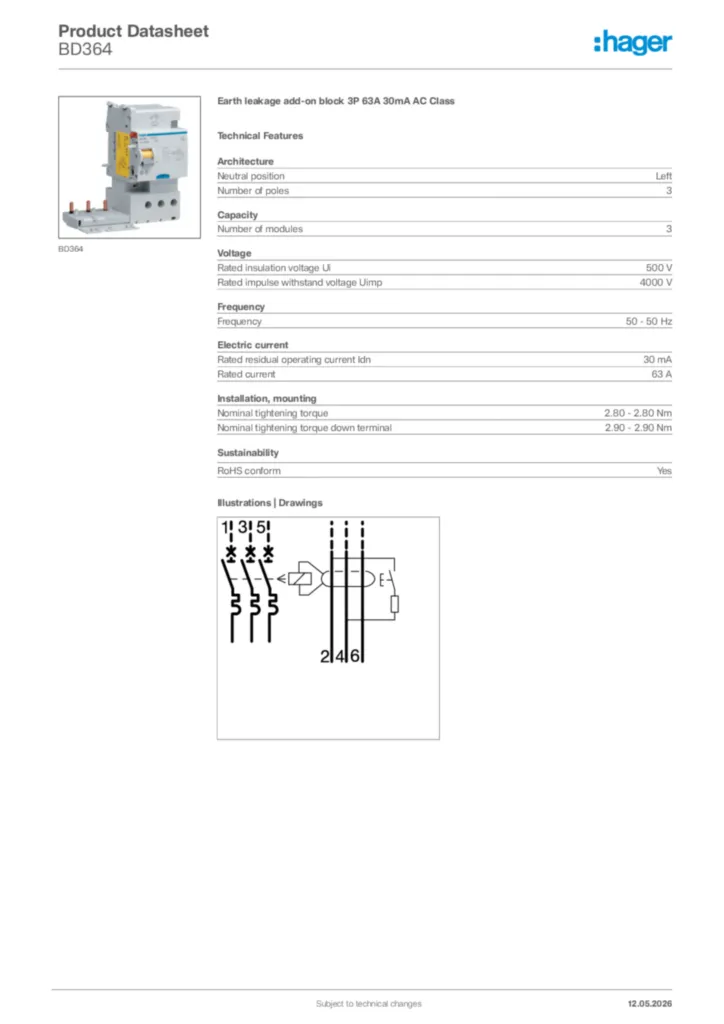

Hager Product data sheet BD364
Earth leakage add-on block 3P 63A 30mA AC Class
PDF -
ProductInstallationManual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
ProductECDeclaration
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
Declaration of conformity en-US 2026-07-14
PDF443,02 kB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
