Earth leakage add-on block 3P 40A 30mA A high immunity Class BD340

EAN
3250611343400
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Earth leakage add-on block 3P 40A 30mA A high immunity Class

BD340

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Compatible products

  • Referenced by 28 products available

Referenced by

  • NCN340A

    MCB 3P 10kA/15kA C-40A 3M
    0.00 €  / *

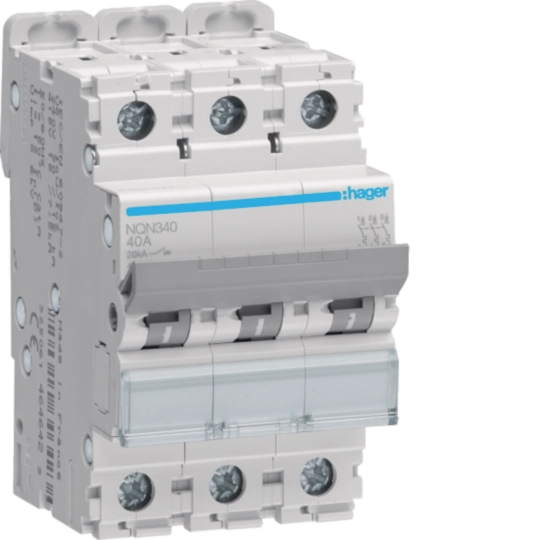

  • NQN340

    MCB 3P 20kA B-40A 3M
    0.00 €  / *
  • NQN332

    MCB 3P 20kA B-32A 3M
    0.00 €  / *
  • MMN310

    Magnetic MCB 3P 25kA 10A 400V access. indicator IEC 947-2
    0.00 €  / *
  • MMN304

    Magnetic MCB 3P 25kA 4A 400V Zubehörmöglich. Anzeige IEC 947-2
    0.00 €  / *
  • MMN300

    Magnetic MCB 3P 25kA 0.63A 400V Zubehörmöglich. Anzeige IEC 947-2
    0.00 €  / *
  • NF340A

    MCB 3P 6/10kA C-40A 3M
    0.00 €  / *
  • NF332A

    MCB 3P 6/10kA C-32A 3M
    0.00 €  / *

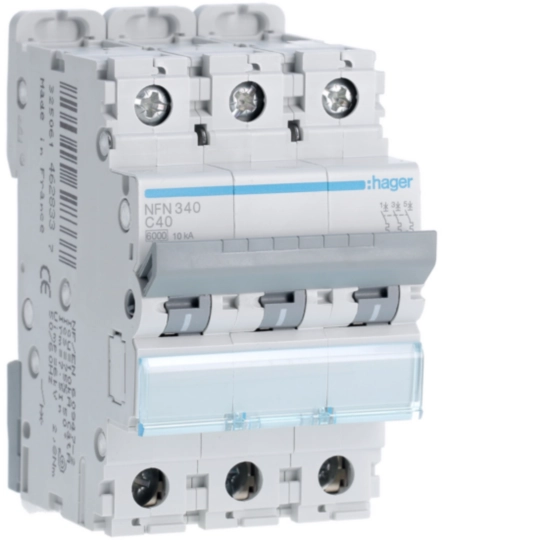

  • NFN340

    MCB 3P 6/10kA C-40A 3M
    0.00 €  / *
  • NRN340

    MCB 3P 20kA C-40A 3M
    0.00 €  / *
  • NDN332A

    MCB 3P 10kA/15kA D-32A 3M
    0.00 €  / *

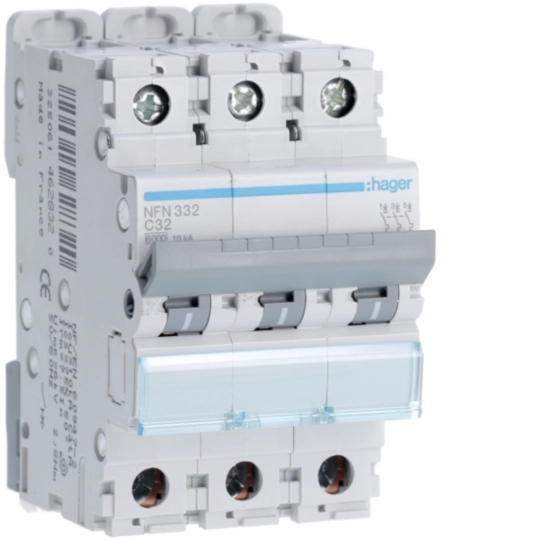

  • NFN332

    MCB 3P 6/10kA C-32A 3M
    0.00 €  / *
  • NDN340A

    MCB 3P 10kA/15kA D-40A 3M
    0.00 €  / *
  • NGN332

    MCB 3P 6/10kA D-32A 3M
    0.00 €  / *

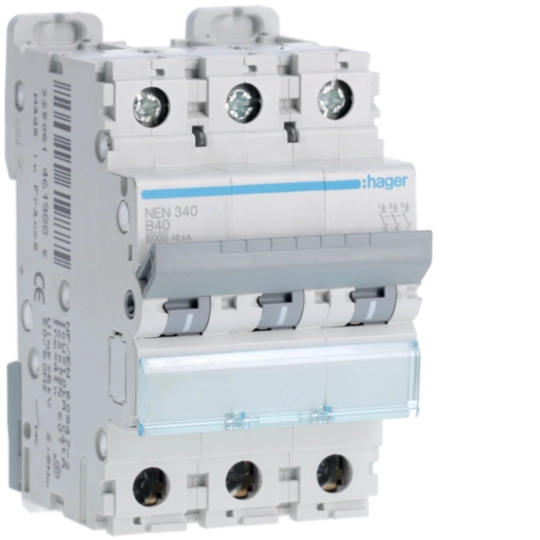

  • NEN340

    MCB 3P 6/10kA B-40A 3M
    0.00 €  / *
  • NBN340A

    MCB 3P 10kA/15kA B-40A 3M
    0.00 €  / *
  • NBN332A

    MCB 3P 10kA/15kA B-32A 3M
    0.00 €  / *
  • NCN332A

    MCB 3P 10kA/15kA C-32A 3M
    0.00 €  / *
  • MMN316

    Magnetic MCB 3P 25kA 16A 400V Zubehörmöglich. Anzeige IEC 947-2
    0.00 €  / *

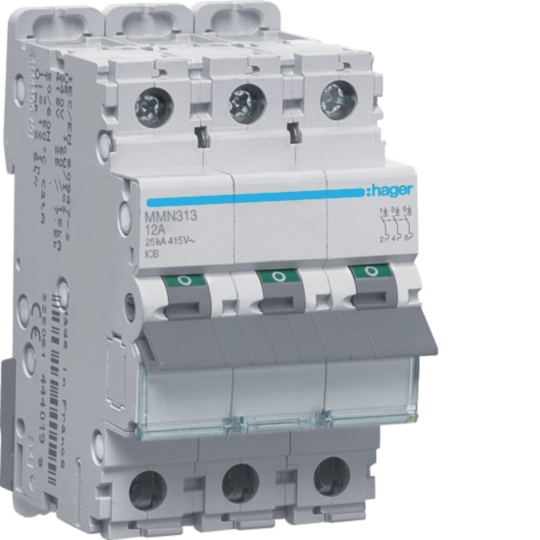

  • MMN313

    Magnetic MCB 3P 25kA 12A 400V Zubehörmöglich. Anzeige IEC 947-2
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    40 A
  • Rated residual oper­ating current Idn
    30 mA
Archi­tec­ture
  • Number of poles
    3
Safety
  • Residual current type
    A HI
Capa­city
  • Number of modules
    3
Frequency
  • Frequency
    50 - 50 Hz
Install­a­tion, mounting
  • Nominal tight­ening torque
    2.80 - 2.80 Nm
Power
  • Total power loss under IN
    3.8 W
Endur­ance
  • Elec­tric endur­ance in number of cycles
    2000
  • Number of mech­an­ical oper­a­tions
    1000
Voltage
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    4000 V
Connec­tion
  • Cross-sec­tion of input and output with screws, for massive conductors
    1 - 25 mm²
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    1 - 16 mm²
Connectivity
  • Down connec­tion align­ment for modular devices
    Aligned terminal
Dimen­sions
  • Height
    70 mm
  • Width
    35 mm
  • Depth
    92 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

Certifications and documents

Hager REACH declaration BD340
PDF
Hager RoHS report BD340
PDF

Downloads

  • Image BD340 | Hager Africa

    Product Image BD340

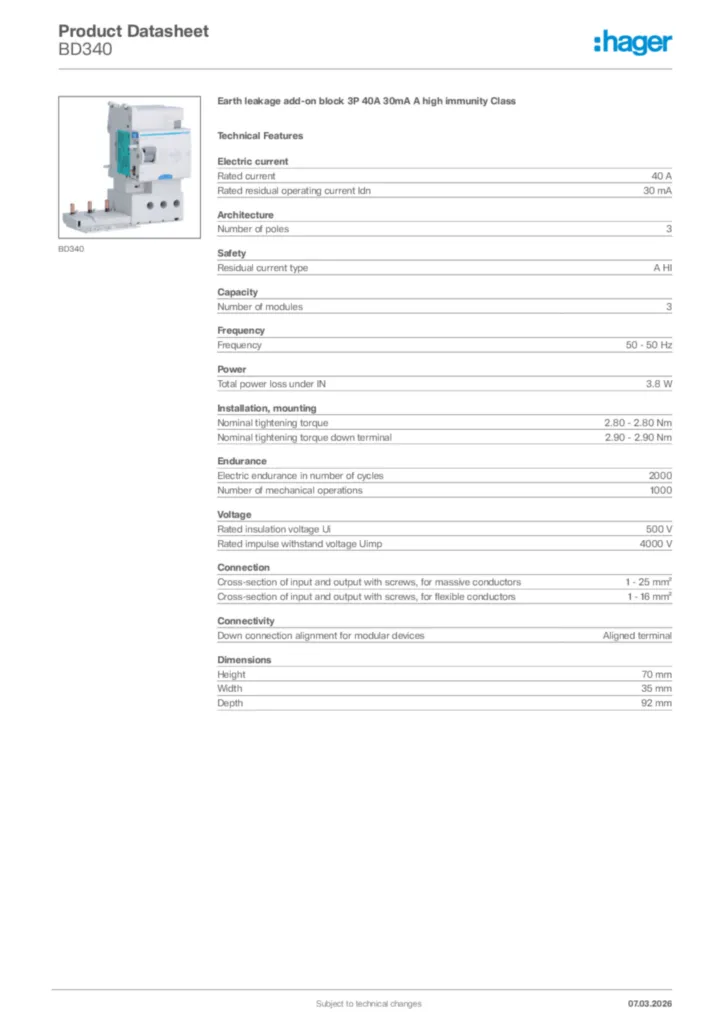

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Declaration of conformity

    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-11-10

    PDF
    920,46 kB
    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-12-07

    PDF
    1,14 MB
    Image EU Declaration of Conformity | Hager Africa

    EU Declaration of Conformity

    Declaration of conformity en-GB 2024-11-12

    PDF
    452,70 kB
More documentation

Discover more of this product range

    5
  • 1
    BG364 - Earth leakage add-on block 3P 63A 500mA AC Class
    BG364
    Earth leakage add-on block 3P 63A 500mA AC Class
  • 2
    BDC225F - Add-on block 1P+N 25A 30mA AC
    BDC225F
    Add-on block 1P+N 25A 30mA AC
  • 3
    BTH280E - Earth leakage add-on-block 2P 125A Adjustable type HI
    BTH280E
    Earth leakage add-on-block 2P 125A Adjustable type HI
  • 4
    BDC380E - Earth leakage add-on-block 3P 125A 30mA type AC
    BDC380E
    Earth leakage add-on-block 3P 125A 30mA type AC
  • 5
    BTH480E - Earth leakage add-on-block 4P 125A Adjustable type HI
    BTH480E
    Earth leakage add-on-block 4P 125A Adjustable type HI
