Earth leakage add-on block 3P 25A 300mA A high immunity Class BF325

EAN
3250611363255
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Earth leakage add-on block 3P 25A 300mA A high immunity Class

BF325

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Compatible products

  • Referenced by 92 products available

Referenced by

  • NDN310A

    MCB 3P 10kA/15kA D-10A 3M
    0.00 €  / *
  • NFN325

    MCB 3P 6/10kA C-25A 3M
    0.00 €  / *
  • NBN325A

    MCB 3P 10kA/15kA B-25A 3M
    0.00 €  / *
  • NQN310

    MCB 3P 25kA B-10A 3M
    0.00 €  / *
  • NFN310

    MCB 3P 6/10kA C-10A 3M
    0.00 €  / *
  • NCN306A

    MCB 3P 10kA/15kA C-6A 3M
    0.00 €  / *
  • NRN320

    MCB 3P 25kA C-20A 3M
    0.00 €  / *
  • MCN316A

    MCB 3P 6kA C-16A 3M
    0.00 €  / *
  • NBN306A

    MCB 3P 10kA/15kA B-6A 3M
    0.00 €  / *
  • NBN320A

    MCB 3P 10kA/15kA B-20A 3M
    0.00 €  / *
  • NBN310A

    MCB 3P 10kA/15kA B-10A 3M
    0.00 €  / *
  • NRN306

    MCB 3P 25kA C-6A 3M
    0.00 €  / *
  • NGN304

    MCB 3P 6/10kA D-4A 3M
    0.00 €  / *
  • NCN301A

    MCB 3P 10kA/15kA C-1A 3M
    0.00 €  / *
  • NCN304A

    MCB 3P 10kA/15kA C-4A 3M
    0.00 €  / *
  • NDN304A

    MCB 3P 10kA/15kA D-4A 3M
    0.00 €  / *
  • NFN316

    MCB 3P 6/10kA C-16A 3M
    0.00 €  / *
  • NGN316

    MCB 3P 6/10kA D-16A 3M
    0.00 €  / *
  • NFN300

    MCB 3P 6/10kA C-0.5A 3M
    0.00 €  / *
  • NGN320

    MCB 3P 6/10kA D-20A 3M
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    25 A
  • Rated residual oper­ating current Idn
    300 mA
Archi­tec­ture
  • Number of poles
    3
Safety
  • Residual current type
    A HI
Capa­city
  • Number of modules
    2
Frequency
  • Frequency
    50 - 50 Hz
Install­a­tion, mounting
  • Nominal tight­ening torque
    1.70 - 1.70 Nm
Power
  • Total power loss under IN
    3 W
Endur­ance
  • Elec­tric endur­ance in number of cycles
    2000
  • Number of mech­an­ical oper­a­tions
    2000
Voltage
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    4000 V
Connec­tion
  • Cross-sec­tion of input and output with screws, for massive conductors
    1 - 10 mm²
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    1 - 6 mm²
Connectivity
  • Down connec­tion align­ment for modular devices
    Aligned terminal
Dimen­sions
  • Height
    70 mm
  • Width
    35 mm
  • Depth
    92 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

Certifications and documents

Hager REACH declaration BF325
PDF

Downloads

  • Image BF325 | Hager Africa

    Product Image BF325

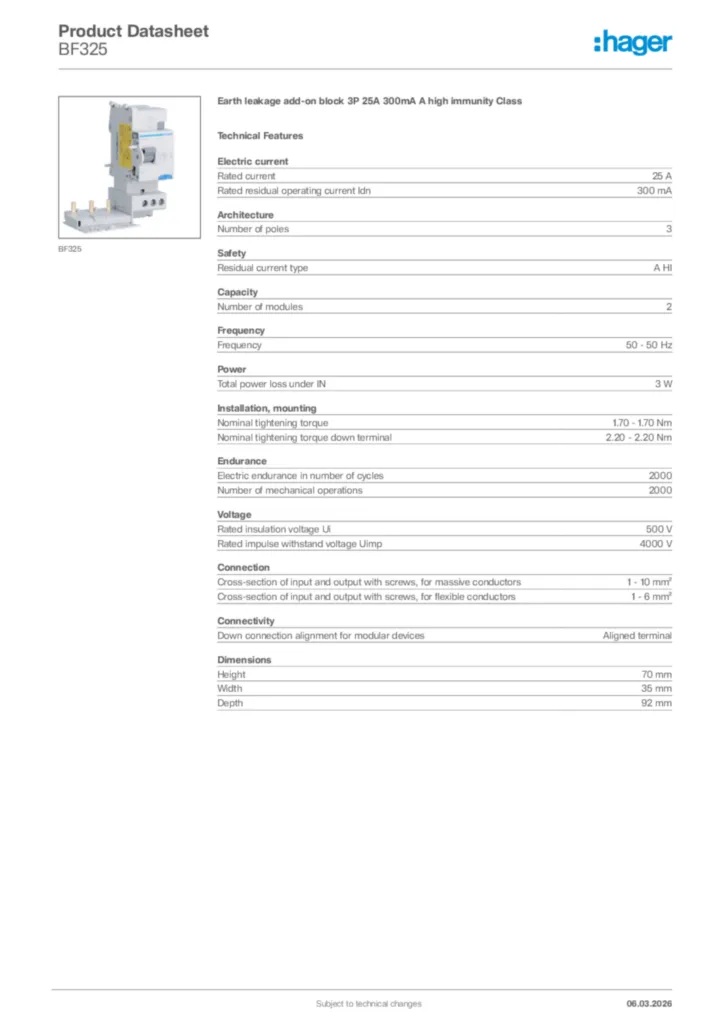

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Declaration of conformity

    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-11-10

    PDF
    920,46 kB
    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-12-07

    PDF
    1,14 MB
    Image EU Declaration of Conformity | Hager Africa

    EU Declaration of Conformity

    Declaration of conformity en-GB 2024-11-12

    PDF
    452,70 kB
