Earth leakage add-on block 4P 25A 30mA AC Class BD426
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 77 products available
Referenced by
-
NBN420AMCB 4P 10kA/15kA B-20A 4M
-
NBN425AMCB 4P 10kA/15kA B-25A 4M
-
NCN401AMCB 4P 10kA/15kA C-1A 4M
-
NCN410AMCB 4P 10kA/15kA C-10A 4M
-
NCN420AMCB 4P 10kA/15kA C-20A 4M
-
NFN406MCB 4P 6/10kA C-6A 4M
-
NBN416AMCB 4P 10kA/15kA B-16A 4M
-
NFN402MCB 4P 6/10kA C-2A 4M
-
NDN425AMCB 4P 10kA/15kA D-25A 4M
-
NDN420A
MCB 4P 10kA/15kA D-20A 4M
-
NGN420MCB 4P 6/10kA D-20A 4M
-
NDN416AMCB 4P 10kA/15kA D-16A 4M
-
NGN416MCB 4P 6/10kA D-16A 4M
-
NRN406MCB 4P 25kA C-6A 4M
-
NBN406AMCB 4P 10kA/15kA B-6A 4M
-
NBN410AMCB 4P 10kA/15kA B-10A 4M
-
NCN402AMCB 4P 10kA/15kA C-2A 4M
-
NCN404AMCB 4P 10kA/15kA C-4A 4M
-
NCN406AMCB 4P 10kA/15kA C-6A 4M
-
NFN425MCB 4P 6/10kA C-25A 4M
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles4
Capacity
-
Number of modules2
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn30 mA
-
Rated current25 A
Installation, mounting
-
Nominal tightening torque1.70 - 1.70 Nm
-
Nominal tightening torque down terminal2.20 - 2.20 Nm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

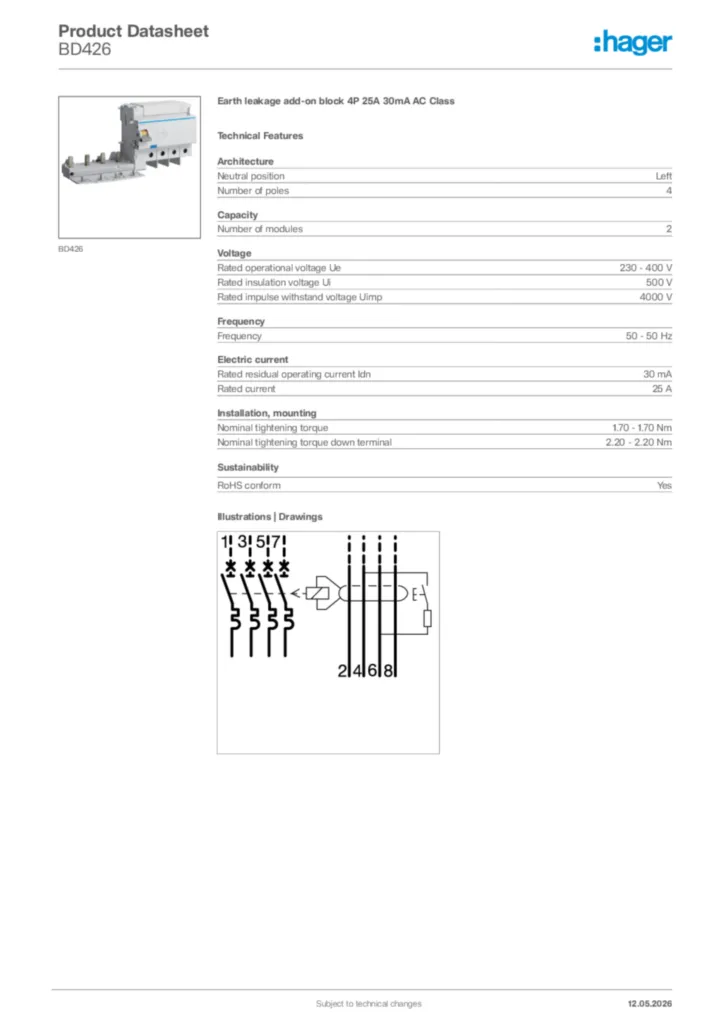

Product datasheet
Hager Product data sheet BD426
Earth leakage add-on block 4P 25A 30mA AC Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
