The Hager Earth leakage add-on block 3P 40A 30mA AC Class provides residual current protection for 3-phase circuits when paired with compatible breakers. With 30 mA sensitivity and 40 A rating, it enhances shock and fire protection in residential and commercial boards. AC class suits sinusoidal faults; Ui 500 V and 4 kV Uimp add robustness. Left neutral, 3 modules, easy wiring with 2.8/2.9 Nm terminals.
EAN
3250611343417
VPE
1 piece
Contactor 3P 85A AC-3, 220V AC coil 50/60Hz, Ue 690V, Ui 1000V BD341
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Architecture
-
Neutral positionLeft
-
Number of poles3
Capacity
-
Number of modules3
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn30 mA
-
Rated current IN40 A
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

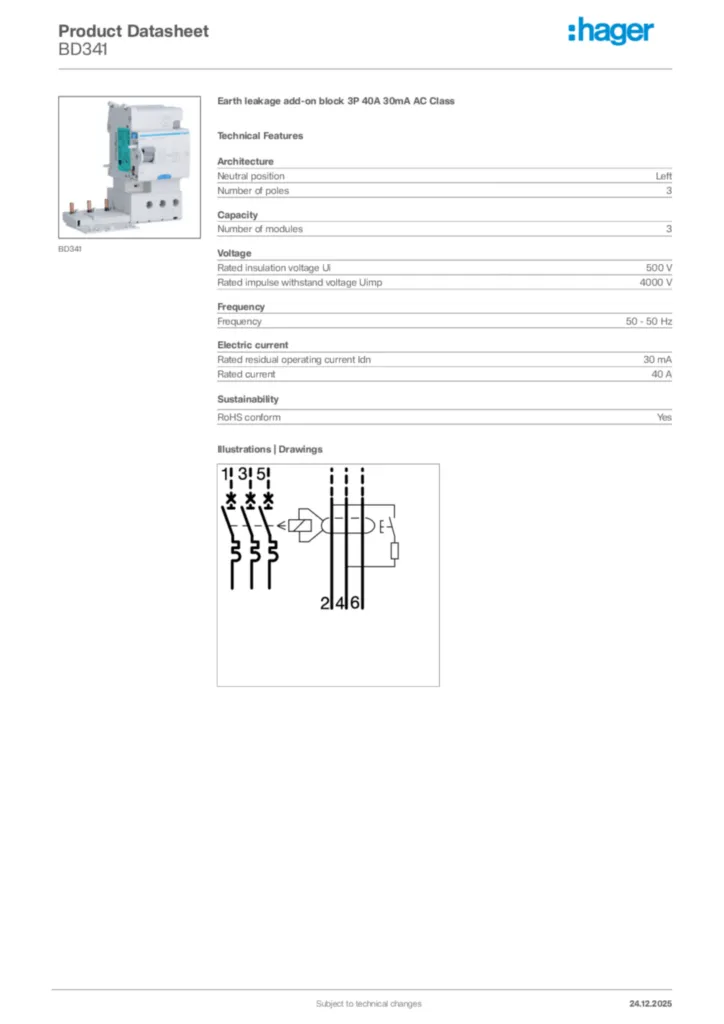

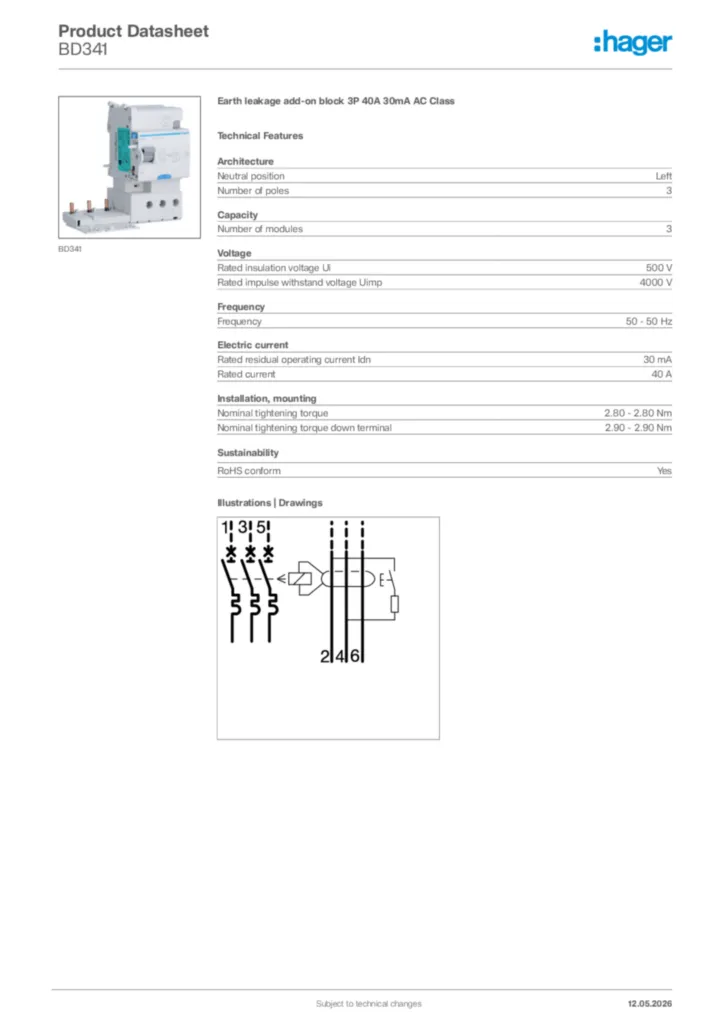

Hager Product data sheet BD341
