Earth leakage add-on block 3P 63A 500mA AC Class BG364

EAN
3250611373261
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Earth leakage add-on block 3P 63A 500mA AC Class

BG364

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Compatible products

  • Referenced by 129 products available

Referenced by

  • NFN332

    MCB 3P 6/10kA C-32A 3M
    0.00 €  / *
  • NDN304A

    MCB 3P 10kA/15kA D-4A 3M
    0.00 €  / *
  • NCN304A

    MCB 3P 10kA/15kA C-4A 3M
    0.00 €  / *
  • NCN301A

    MCB 3P 10kA/15kA C-1A 3M
    0.00 €  / *
  • NGN304

    MCB 3P 6/10kA D-4A 3M
    0.00 €  / *
  • NRN306

    MCB 3P 25kA C-6A 3M
    0.00 €  / *

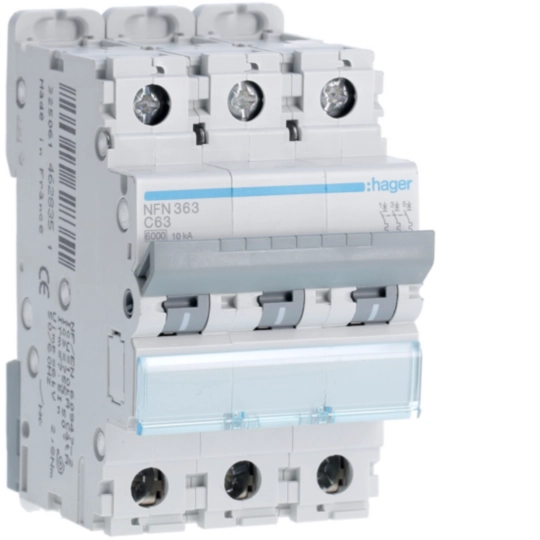

  • NFN363

    MCB 3P 6/10kA C-63A 3M
    0.00 €  / *
  • NDN350A

    MCB 3P 10kA/15kA D-50A 3M
    0.00 €  / *
  • NBN350A

    MCB 3P 10kA/15kA B-50A 3M
    0.00 €  / *
  • NDN332A

    MCB 3P 10kA/15kA D-32A 3M
    0.00 €  / *
  • NDN310A

    MCB 3P 10kA/15kA D-10A 3M
    0.00 €  / *
  • NBN363A

    MCB 3P 10kA/15kA B-63A 3M
    0.00 €  / *
  • NBN320A

    MCB 3P 10kA/15kA B-20A 3M
    0.00 €  / *
  • NBN310A

    MCB 3P 10kA/15kA B-10A 3M
    0.00 €  / *
  • NFN325

    MCB 3P 6/10kA C-25A 3M
    0.00 €  / *
  • NFN320

    MCB 3P 6/10kA C-20A 3M
    0.00 €  / *
  • NFN310

    MCB 3P 6/10kA C-10A 3M
    0.00 €  / *
  • NCN306A

    MCB 3P 10kA/15kA C-6A 3M
    0.00 €  / *
  • NRN320

    MCB 3P 25kA C-20A 3M
    0.00 €  / *
  • NGN332

    MCB 3P 6/10kA D-32A 3M
    0.00 €  / *

Technical properties

Archi­tec­ture
  • Neutral posi­tion
    Left
  • Number of poles
    3
Voltage
  • Rated oper­a­tional voltage Ue
    230 - 400 V
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    4000 V
Frequency
  • Frequency
    50 - 50 Hz
Elec­tric current
  • Rated residual oper­ating current Idn
    500 mA
  • Rated current
    63 A
Connectivity
  • Down connec­tion align­ment for modular devices
    Aligned terminal
Install­a­tion, mounting
  • Nominal tight­ening torque
    2.80 - 2.80 Nm
  • Nominal tight­ening torque down terminal
    2.90 - 2.90 Nm
Dimen­sions
  • Height
    70 mm
  • Width
    61 mm
  • Depth
    83 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

Certifications and documents

Hager REACH declaration BG364
PDF
Hager RoHS report BG364
PDF

Downloads

  • Image BG364 | Hager Africa

    Product Image BG364

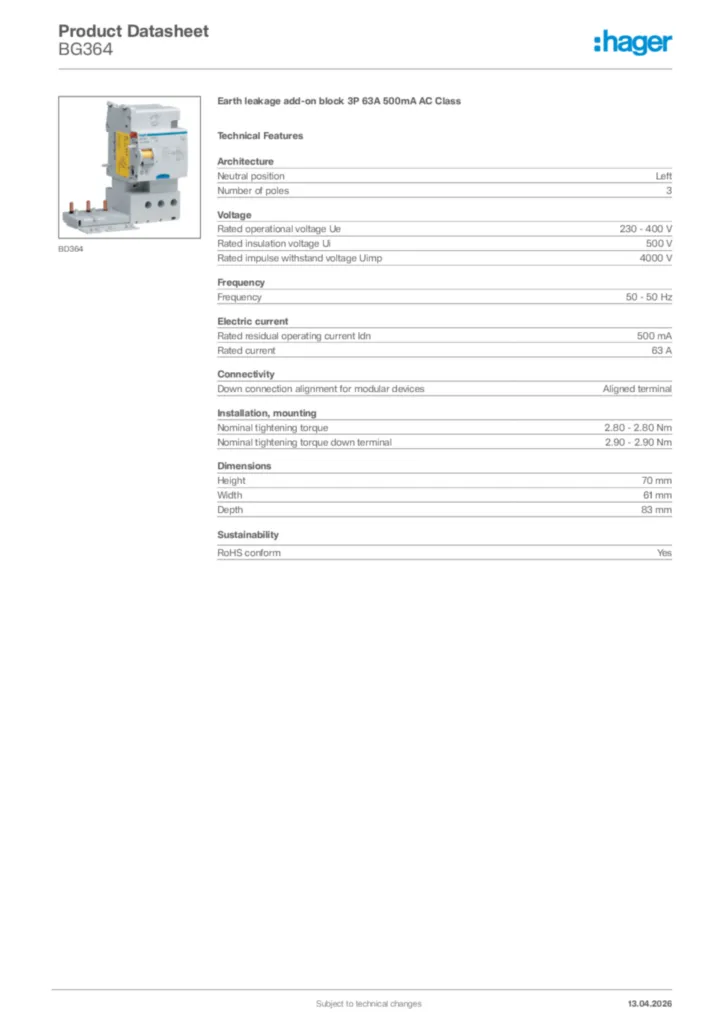

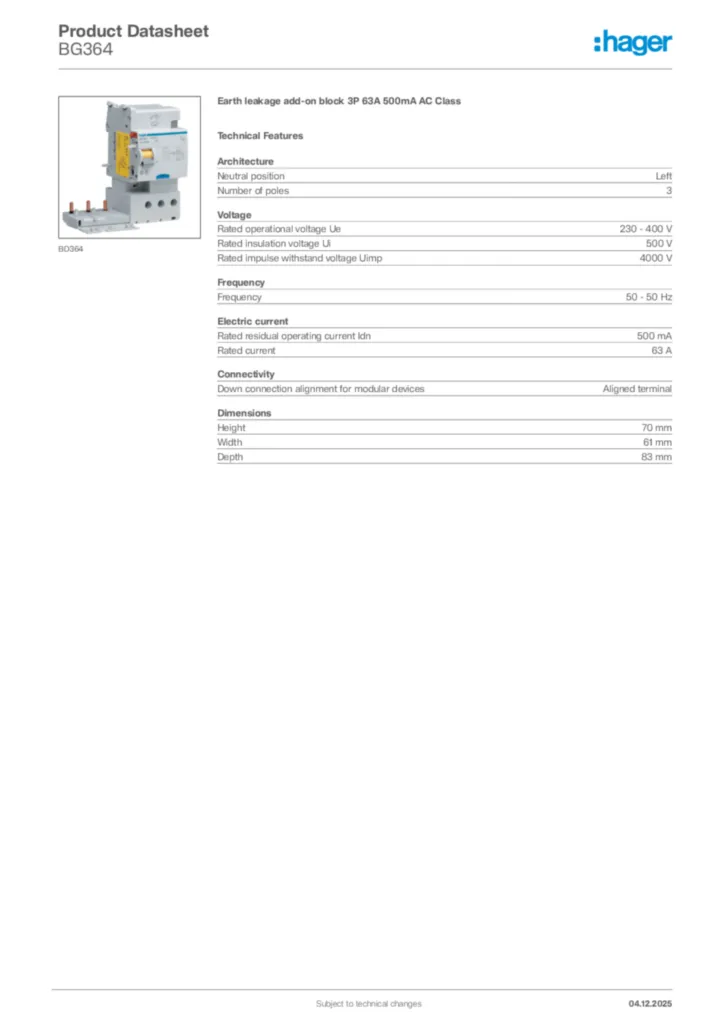

  • Product datasheet

    Image Hager Product data sheet BG364 | Hager Africa

    Hager Product data sheet BG364

    Earth leakage add-on block 3P 63A 500mA AC Class

    PDF

  • Declaration of conformity

    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-11-10

    PDF
    920,46 kB
    Image Declaration | Hager Africa

    Declaration

    Declaration of conformity International 2021-12-07

    PDF
    1,14 MB
    Image EU Declaration of Conformity | Hager Africa

    EU Declaration of Conformity

    Declaration of conformity en-GB 2024-11-12

    PDF
    452,70 kB
