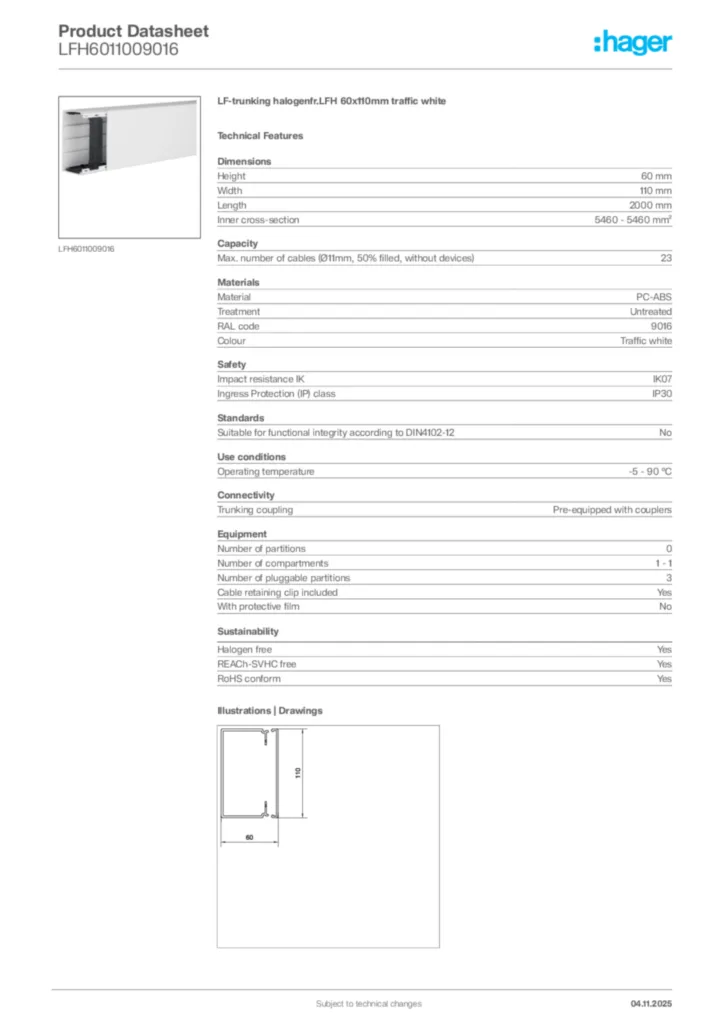

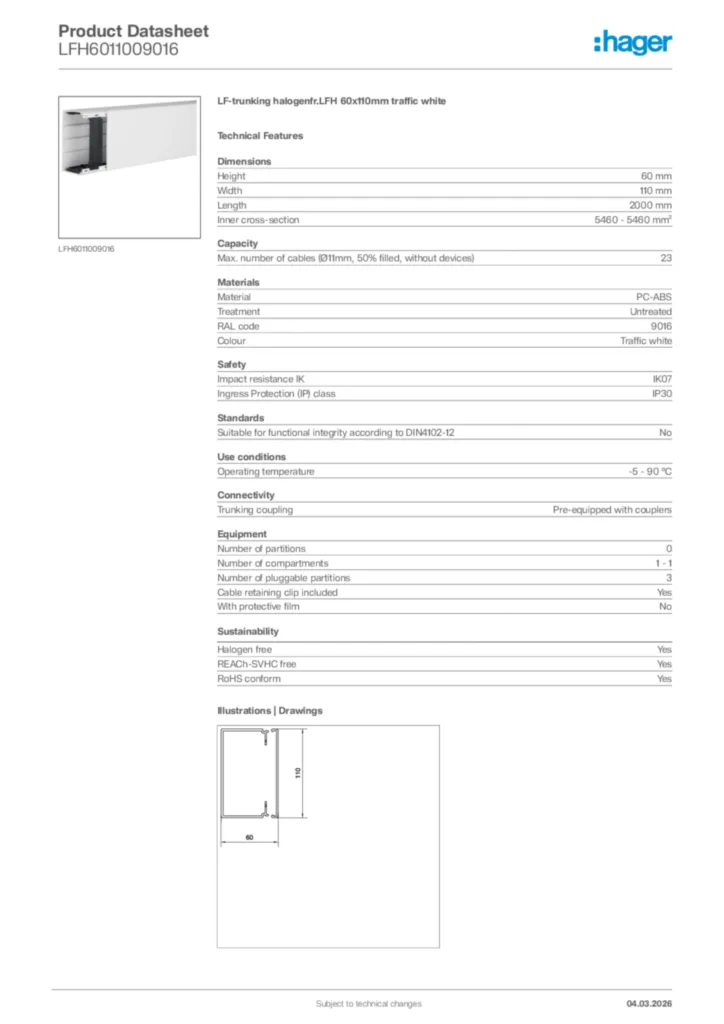

    LF-trunking halogenfr.LFH 60x110mm traffic white LFH6011009016

    Complete your system

    Optional accessories

    • End piece for install­a­tion duct 2 products available
    • Internal corner for install­a­tion duct 2 products available
    • External corner for install­a­tion duct 2 products available
    • Flat angle for install­a­tion duct 2 products available
    • Cable clip/re­tainer for install­a­tion duct 1 products available
    • T-piece for install­a­tion duct 1 products available

    Technical properties

    Dimen­sions
    • Height
      60 mm
    • Width
      110 mm
    • Length
      2000 mm
    • Inner cross-sec­tion
      5460 - 5460 mm²
    Capa­city
    • Max. number of cables (Ø11mm, 50% filled, without devices)
      23
    Mater­ials
    • Material
      PC-ABS
    • Treat­ment
      Untreated
    • RAL code
      9016
    • Colour
      Traffic white
    Safety
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP30
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 90 °C
    Connectivity
    • Trunking coup­ling
      Pre-equipped with couplers
    Equip­ment
    • Number of parti­tions
      0
    • Number of compart­ments
      1 - 1
    • Number of plug­gable parti­tions
      3
    • Cable retaining clip included
      Yes
    • With protective film
      No

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes
