The Hager external corner for LF/LFF/LFH 60x110 trunking provides a clean, safe transition on outside corners. Halogen‑free PC‑ABS in traffic white (RAL9016), IK07 impact rated, and operable -5 to 90°C. Adjustable 83-97° with overlapping design to mask cuts and tolerances. Quick click mounting speeds installation. Ideal for residential and commercial cable management.
EAN
4012740013383
Packaging
1 Piece
Trunking LFF 60x110mm 2m PVC IP40 IK07 pre-coupled +2 clips Traffic white LFF6011039016
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height60 mm
-
Width110 mm
-
Measurement a48 mm
Accessories
-
Type of accessoryMoulded
Settings
-
Angle range83 - 97
Materials
-
MaterialPC-ABS
-
TreatmentUntreated
-
ColourTraffic white
-
RAL code9016
Safety
-
Impact resistance IKIK07
Standards
-
Suitable for functional integrity according to DIN4102-12No
Use conditions
-
Operating temperature-5 - 90 °C
Equipment
-
With protective filmNo
Configuration
-
OverlappingYes
Connectivity
-
Mounting typeClick mounting
-
Related SeriesLFF 60x110, LFH 60x110
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

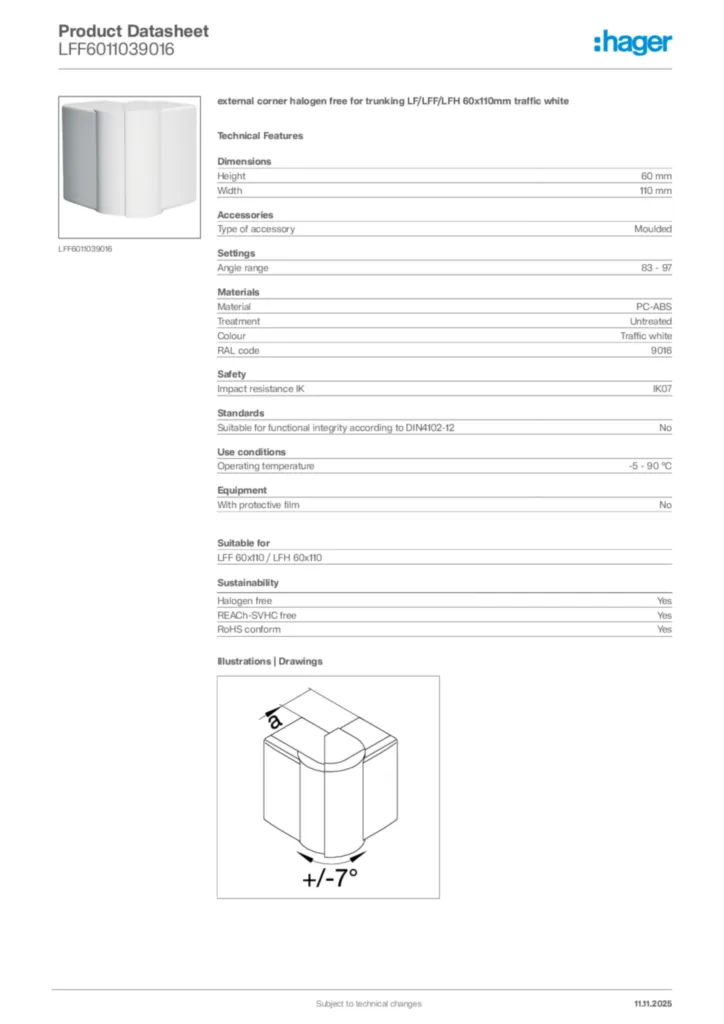

Product datasheet
