The Hager halogen-free internal corner for LF/FB 60x110 trunking delivers a neat 90° inner bend and continuous cable protection. Molded ABS in traffic white RAL9016 matches the duct for a clean finish. IK07 impact resistance and -5 to 60°C rating ensure durability. Dimensions 61 x 110 mm (a=130 mm). Compatible with FB 60x110 and LFH 60x110 series for quick, safe routing in residential and commercial installs.

EAN

4012740012430

Packaging

1 Piece

Cable trunking systems - LF

Internal corner halogen-free 90° for trunking LF/LFF/FB 60x230 RAL9016 IK07 LF6011049016

Technical properties
Environmental value
Documentations
More products

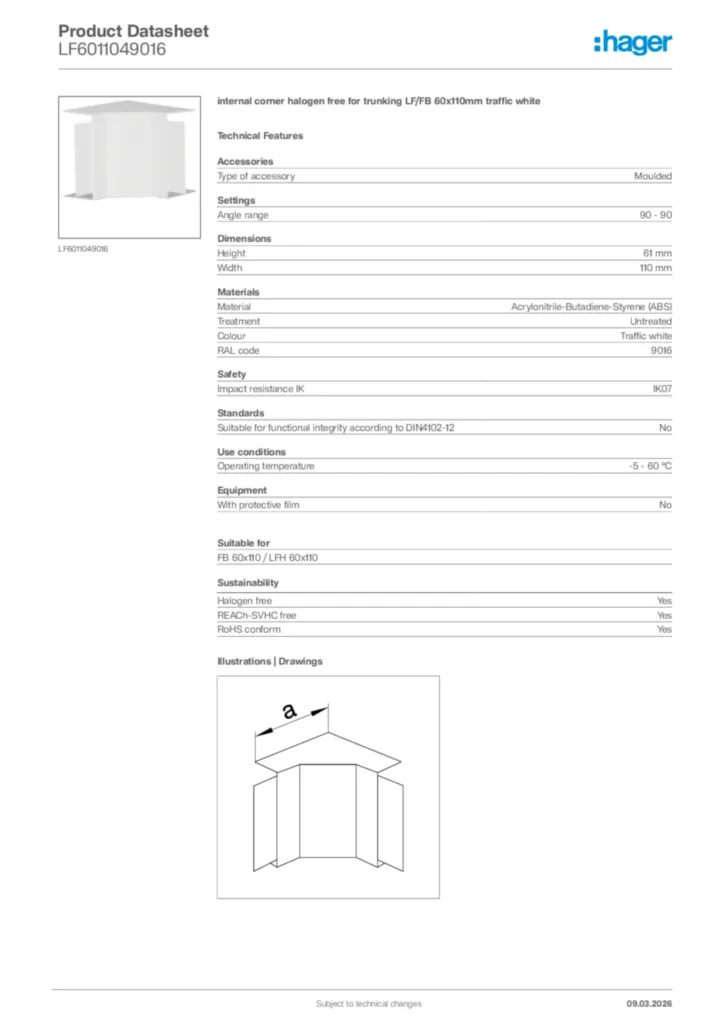

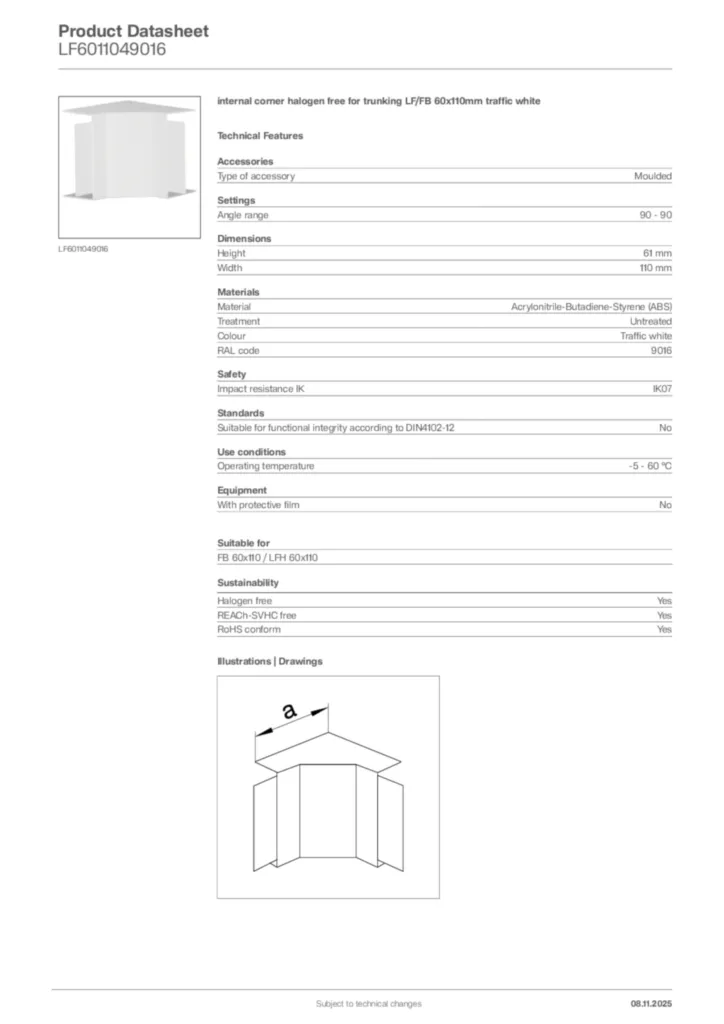

Download the data sheet

Technical properties

Type of accessory

Moulded

Angle range

90 - 90

Height

61 mm
Width

110 mm
Measurement a

130 mm

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No

Related Series

FB 60x110, LFH 60x110

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
