The Hager external corner, halogen-free, for LF/FB 60x110 mm trunking delivers a neat 90° external bend while preserving cable capacity. Moulded ABS (IK07) in traffic white RAL9016 ensures robust, clean finishes with low-smoke safety. Dimensions 61×110 mm (A=70 mm). Operating -5 to 60°C. Compatible with FB 60x110 and LFH 60x110. Ideal for quick, tidy trunking transitions in residential and commercial installs.

EAN

4012740012423

Packaging

1 Piece

Cable trunking systems - LF

Endcap Halogen-free for trunking 60x230mm IK07 Traffic white RAL9016 LF6011039016

Technical properties
Environmental value
Documentations
More products

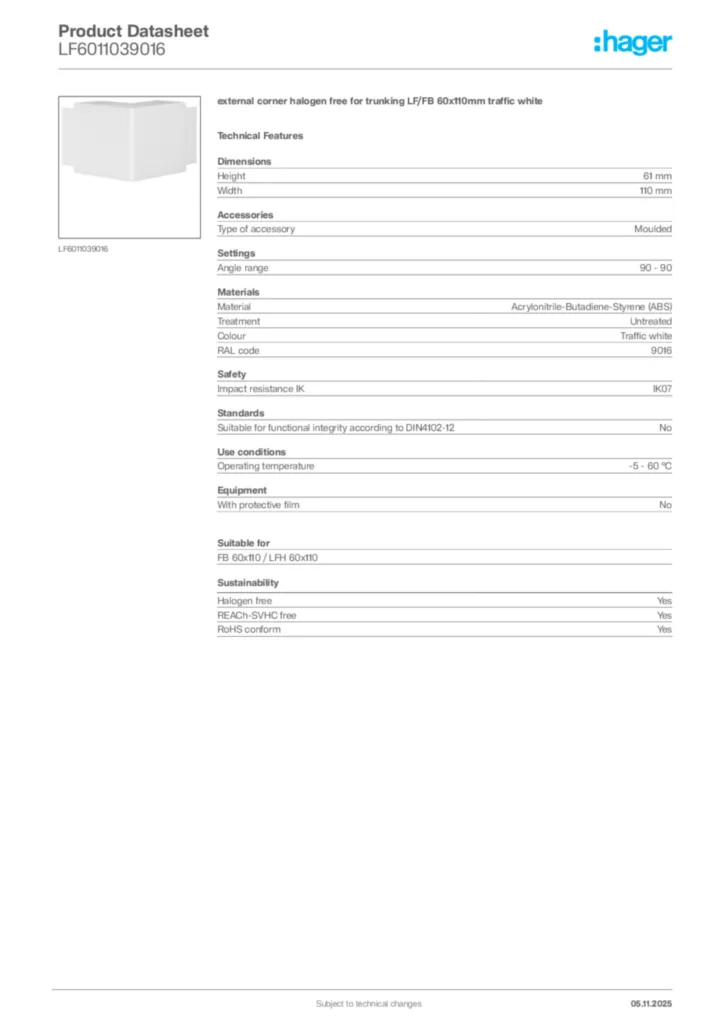

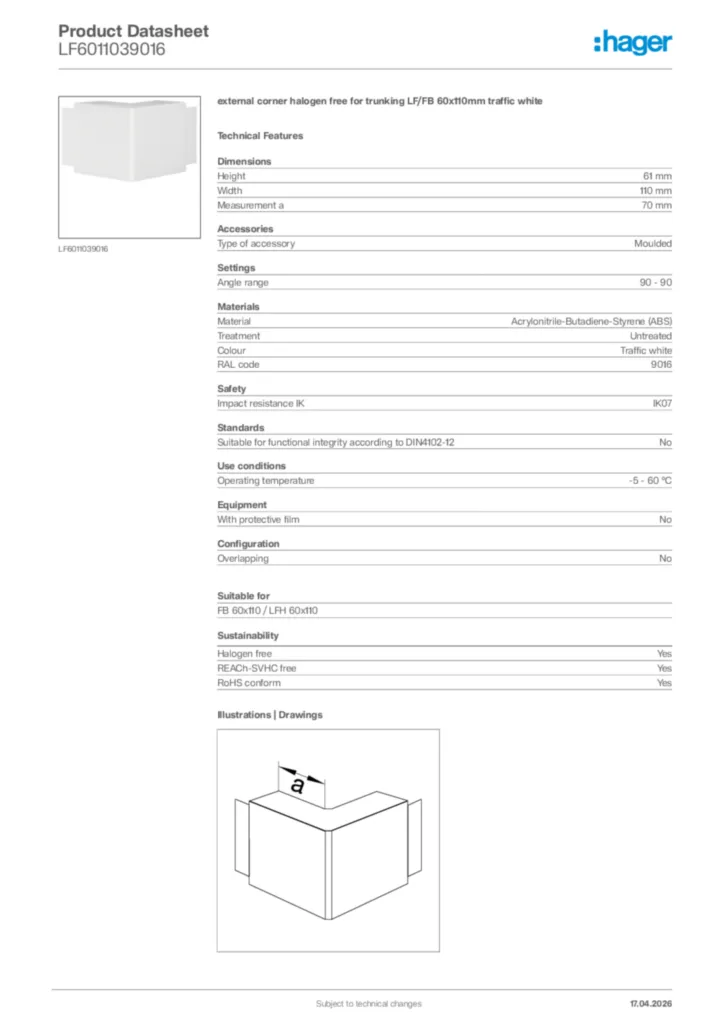

Download the data sheet

Technical properties

Height

61 mm
Width

110 mm
Measurement a

70 mm

Type of accessory

Moulded

Angle range

90 - 90

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Suitable for functional integrity according to DIN4102-12

No

Operating temperature

-5 - 60 °C

With protective film

No

Overlapping

No

Related Series

FB 60x110, LFH 60x110

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
