Hager halogen-free T-piece for LF/LFH/FB 60x110 trunking enables neat 90° branching of cable runs. Robust ABS (IK07) in traffic white RAL9016, dimensions H61 x W110 x A190 mm. Operating -5 to 90°C for reliable service in residential and commercial installs. Molded design speeds fitting and ensures a seamless match with the 60x110 system while reducing toxic emissions in case of fire.

EAN

4012740012461

Packaging

1 Piece

Cable trunking systems - LF

T-piece halogen-free for LF/FB trunking 60x150mm IK07 Stone Grey RAL7030 LF6011089016

Technical properties
Environmental value
Documentations
More products

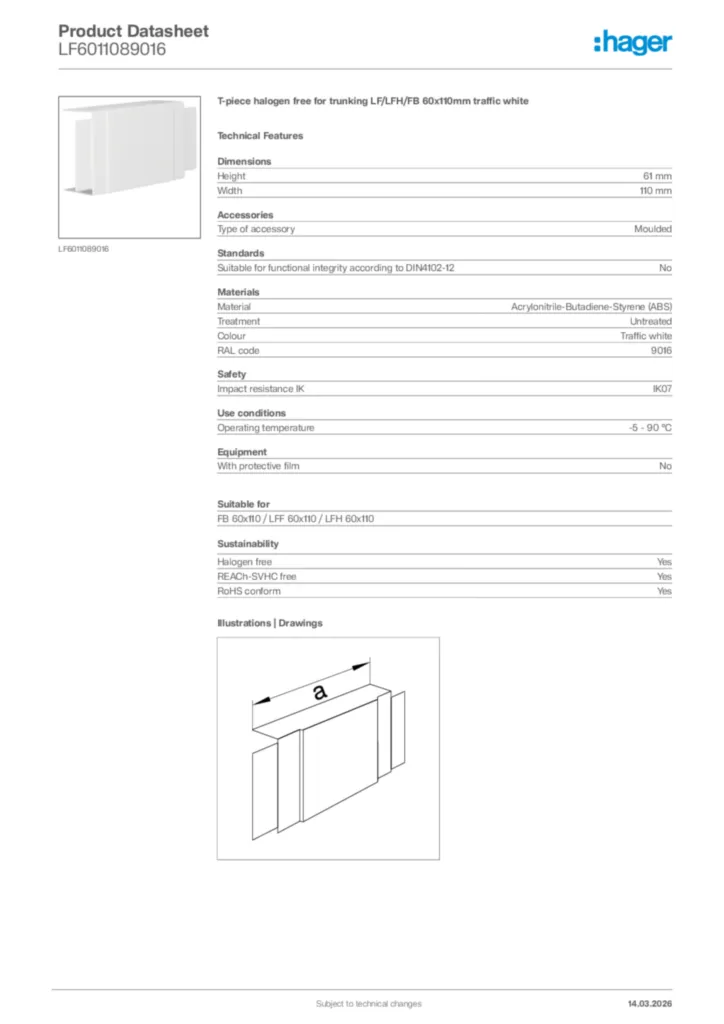

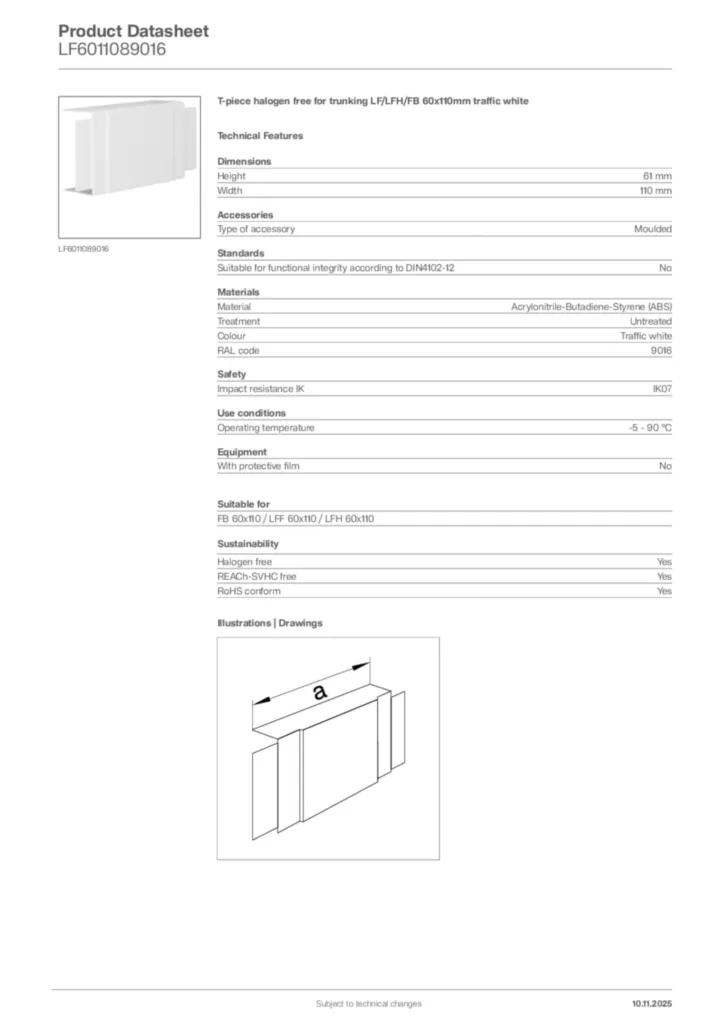

Download the data sheet

Technical properties

Height

61 mm
Width

110 mm
Measurement a

190 mm

Type of accessory

Moulded

Suitable for functional integrity according to DIN4102-12

No

Material

Acrylonitrile-Butadiene-Styrene (ABS)
Treatment

Untreated
Colour

Traffic white
RAL code

9016

Impact resistance IK

IK07

Operating temperature

-5 - 90 °C

With protective film

No

Overlapping

No
With antibacterial treatment

No

Related Series

FB 60x110, LFF 60x110, LFH 60x110

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
