Trunking LFF 60x110mm with coupling and 2 cable clips traffic white LFF6011009016

EAN
4012740013369
Packaging
16 Meters

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Trunking LFF 60x110mm with coupling and 2 cable clips traffic white

LFF6011009016

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (11)
    • Parti­tion for install­a­tion duct 1 products available
    • End piece for install­a­tion duct 1 products available
    • Joint cover for install­a­tion duct 1 products available
    • Face plate for wall duct 1 products available
    • Junc­tion box for wall duct 1 products available
    • Surface mounting plate/sup­port install­a­tion duct 1 products available

    Complete your system

    • Parti­tion for install­a­tion duct
    • End piece for install­a­tion duct
    • Joint cover for install­a­tion duct
    • Face plate for wall duct
    • Junc­tion box for wall duct
    • Surface mounting plate/sup­port install­a­tion duct
    • Internal corner for install­a­tion duct
    • External corner for install­a­tion duct
    • Flat angle for install­a­tion duct
    • Cable clip/re­tainer for install­a­tion duct
    • T-piece for install­a­tion duct
    • M2026

      partition LF H60
      0.00 €  / *
    • LFF6011069016

      endcap halogen free for trunking LF/LFF/LFH (40, 60)x110mm traffic white
      0.00 €  / *
    • LFF11079016

      Joint cover lid for tehalit.LF/LFF width=110mm traffic white
      0.00 €  / *
    • LFF71H1109016

      1 gang 45x45 mm support LFF40/60110 traffic white
      0.00 €  / *
    • LFF71Z1109016

      CEE socket for LFF60110 traffic white
      0.00 €  / *
    • LFF71U1109016

      60 mm support for LFF40/60110 traffic white
      0.00 €  / *
    • LFF6011049016

      internal corner halogen free for trunking LF/LFF/LFH 60x110mm traffic white
      0.00 €  / *
    • LFF6011039016

      external corner halogen free for trunking LF/LFF/LFH 60x110mm traffic white
      0.00 €  / *
    • LFF6011059016

      flat angle overlapping halogen free for LF/LFF/LFH 60x110mm traffic white
      0.00 €  / *
    • M5429

      Cable retainer, LF/LFF/LFP B=110mm
      0.00 €  / *
    • LF6011089016

      T-piece halogen free for trunking LF/LFH/FB 60x110mm traffic white
      0.00 €  / *

    Technical properties

    Dimen­sions
    • Height
      60 mm
    • Width
      110 mm
    • Length
      2000 mm
    • Inner cross-sec­tion
      5460 - 5460 mm²
    Capa­city
    • Max. number of cables (Ø11mm, 50% filled, without devices)
      23
    Mater­ials
    • Material
      Polyvinyl­chloride (PVC)
    • Treat­ment
      Untreated
    • RAL code
      9016
    • Colour
      Traffic white
    Safety
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    Stand­ards
    • Suit­able for func­tional integ­rity according to DIN4102-12
      No
    Use condi­tions
    • Oper­ating temper­ature
      -5 - 60 °C
    Connectivity
    • Trunking coup­ling
      Pre-equipped with couplers
    Equip­ment
    • Number of parti­tions
      0
    • Number of compart­ments
      1 - 1
    • Number of plug­gable parti­tions
      3
    • Cable retaining clip included
      Yes
    • With protective film
      Yes

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP - Distribution trunking - series LFF (english)
    PDF
    383,26 kB
    Hager REACH declaration LFF6011009016
    PDF
    Hager RoHS report LFF6011009016
    PDF

    Downloads

    • Image LFF6011009016 | Hager Africa

      Product Image LFF6011009016

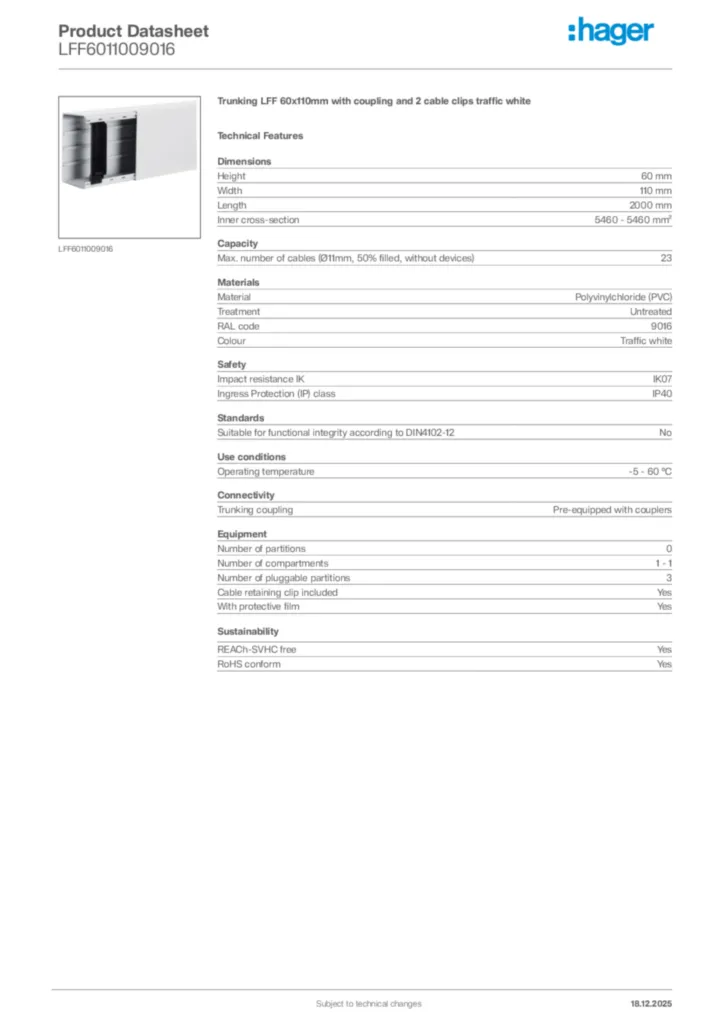

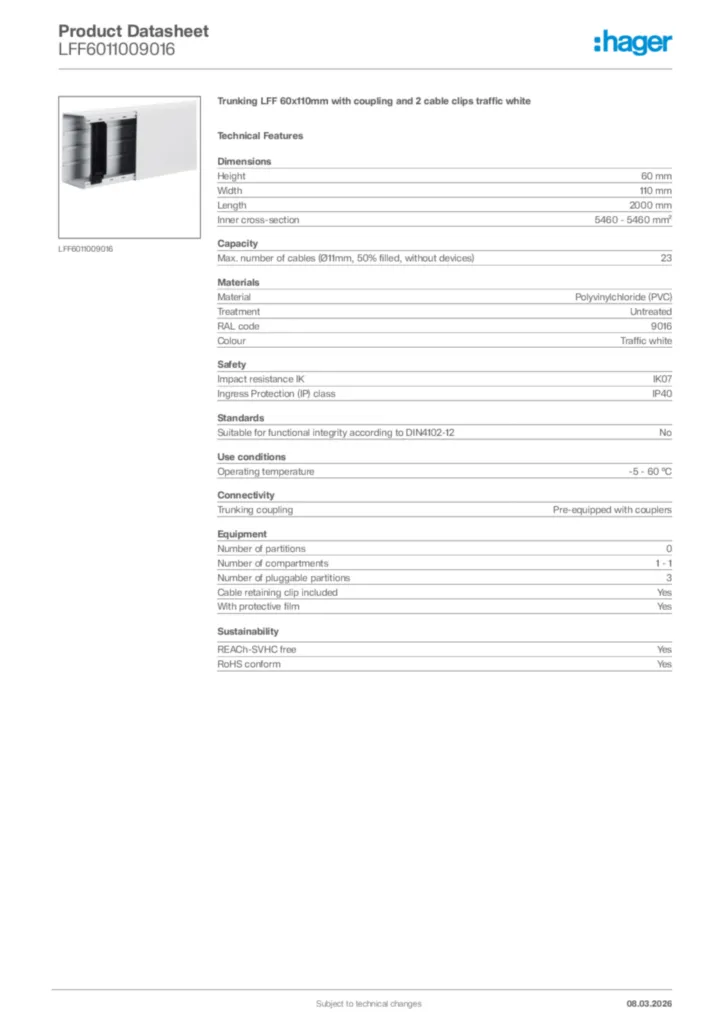

    • Product datasheet

      Image Hager Product data sheet LFF6011009016 | Hager Africa

      Hager Product data sheet LFF6011009016

      Trunking LFF 60x110mm with coupling and 2 cable clips traffic white

      PDF

    • Product licence

      Image Product_Licence_NF004_1074_LFF | Hager Africa

      Product_Licence_NF004_1074_LFF

      Product licence International 2021-02-12

      PDF
      1,52 MB

    • Declaration of conformity

      Image EU-Declaration LFF T045A FR_EN 26072019 | Hager Africa

      EU-Declaration LFF T045A FR_EN 26072019

      Declaration of conformity International 2020-06-25

      PDF
      48,04 kB
