The Hager NewVegaD surface-mounted enclosure (1200×550×193 mm) delivers high-capacity distribution with 168 modules over 7 rows/5 rails. Rated 160 A, 230-400 V, it features 4 conduit inlets and an earthing terminal block for safe, tidy wiring. Class II, IP30, metal/plastic in RAL 9010. Ideal for indoor residential or commercial boards requiring large capacity and clean, organized installation.
EAN
3250612548378
Packaging
1 Piece
Distribution Enclosure NewVegaD 168M 7-row Surface-mounted IP30 160A FD72AN
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Distributor assembly switch 4 products available -
Gland plate for enclosure 5 products available -
Cover for distribution board 3 products available -
DIN rail 1 products available -
Distributor assembly terminal blocks 2 products available -
Cover/infill panel/identification strip 1 products available
Complete your system
-
FD00P4
Kit, NewVegaD, with 2 side cable entry plates, square until M40, for FD…
-
FD00P3Cable entry plate, NewVegaD, top/bottom, rectangular with round knock-outs
-
FD00P2Cable entry plate, NewVegaD, top/bottom, rectangular with 2 flanges IP41
-
FD00P1Cable entry plate, NewVegaD, top/bottom, rectangular
-
VZ741Rear cable entry flange IP41 for NewVegaD and Univers FW boards
-
FD02C2Kit, NewVegaD, 300x500mm, with depth-adjustable perforated plate and plain cover
-
FD02A3Kit, NewVegaD, 300x500mm, for rail-mounted devices, 1x24mod.+1depth-adjust.DIN rail
-
FD02A2Kit, NewVegaD, 300x500mm, with depth-adjustable DIN rails and plain cover
-
FD02A1Kit, NewVegaD, 300x500mm, for rail-mounted devices, 2x24 modules
Technical properties
Connection
-
Number of conduit inlets4
Voltage
-
Nominal voltage230 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current IN160 A
Equipment
-
Number of rails5
-
Number of rows7
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules168
Dimensions
-
Height1200 mm
-
Width550 mm
-
Depth193 mm
-
Number of width units24
Cover, door
-
Number of cabinet doors0
-
Number of locks0
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Materials
-
MaterialMetal, Plastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

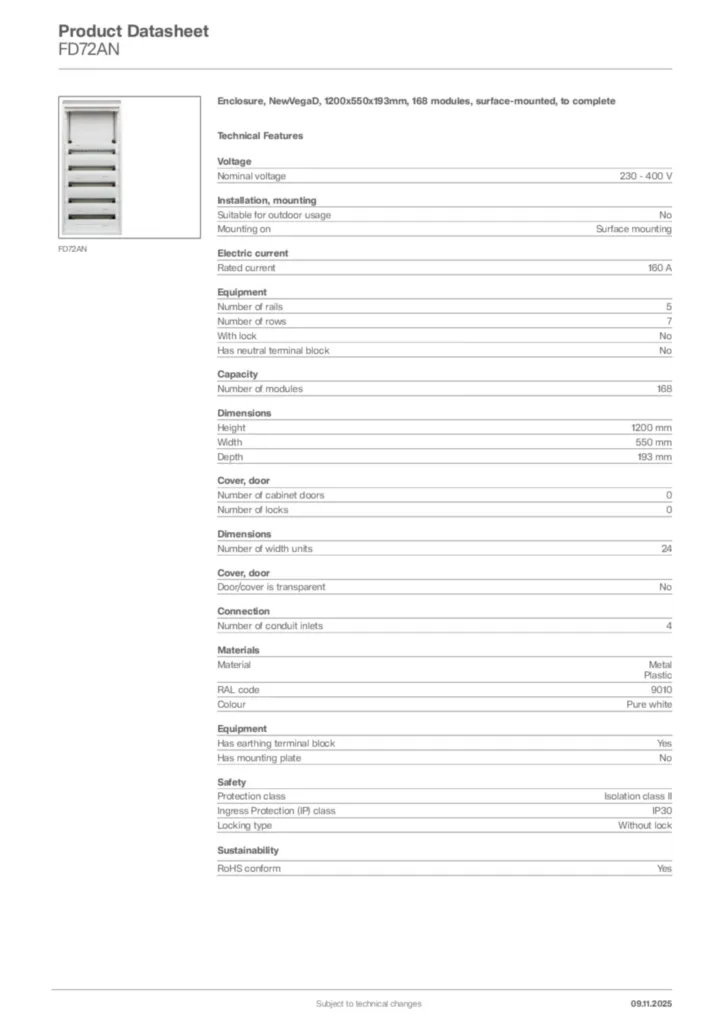

Product datasheet

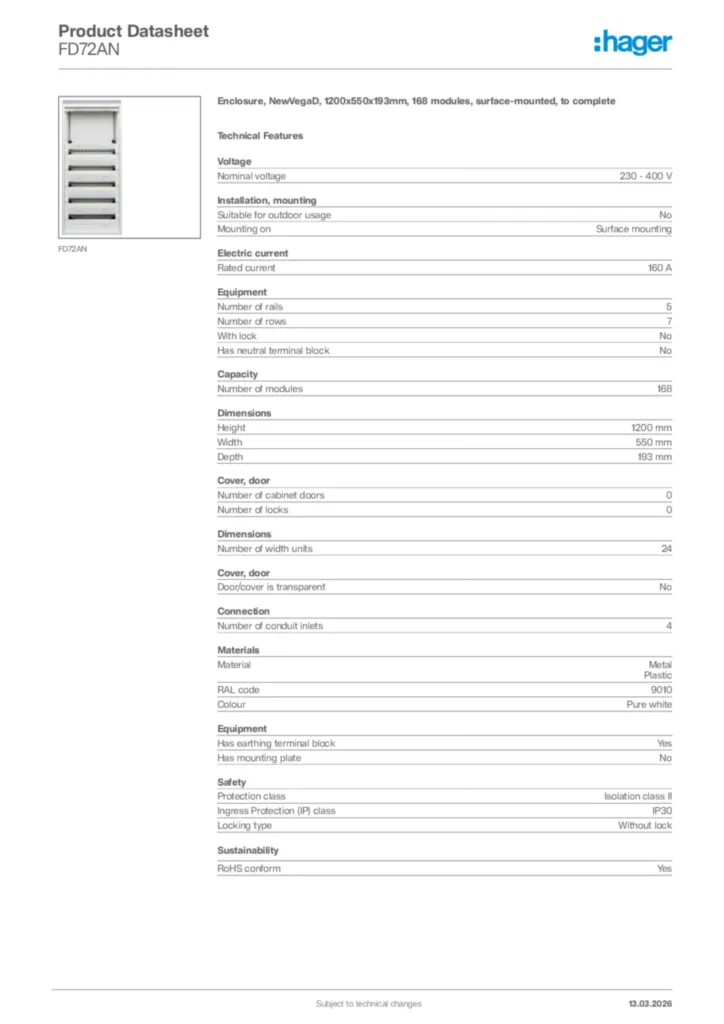

Hager Product data sheet FD72AN
Enclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, to complete
PDF -
Handbook
Technical manual for New VegaD enclosures
Surface, flush boards and accessories (FR)
PDF11,49 MB
Technical manual for New VegaD enclosures
Surface, flush boards and accessories (EN)
PDF11,76 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-11
PDF190,72 kB
