    The Hager brass busbar terminal 160A, 4-pole, ensures robust power distribution and secure terminations in switchboards. Per pole it accepts 1x 25-70 mm², 3x 10-35 mm², or 8x 2.5-25 mm², offering high wiring flexibility. Compact 9-module design (96×162×44 mm) saves panel space. 5 Nm tightening torque provides reliable, vibration-resistant connections for residential and commercial installations.
    EAN
    3250613803582
    Packaging
    1 Piece
    • vega D

    Moulded Case Circuit Breaker 3P 40A 70kA LSI h3+ P160 KJ160A

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Moulded Case Circuit Breaker 3P 40A 70kA LSI h3+ P160

    KJ160A

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Elec­tric current
    • Rated current IN
      160 A
    Archi­tec­ture
    • Number of poles
      4
    Dimen­sions
    • Height
      96 mm
    • Width
      162 mm
    • Depth
      44 mm
    Capa­city
    • Number of modules
      9
    Install­a­tion, mounting
    • Nominal tight­ening torque
      5 - 5 Nm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    Certifications and documents

    PEP - Distribution bar 250A, 4pole + Connectors (English)
    PDF
    393,36 kB
    REACH declaration KJ160A
    PDF
    RoHS report KJ160A
    PDF

    Downloads

    • Image KJ160A  | Hager Africa

      Product Image KJ160A

    • Product datasheet

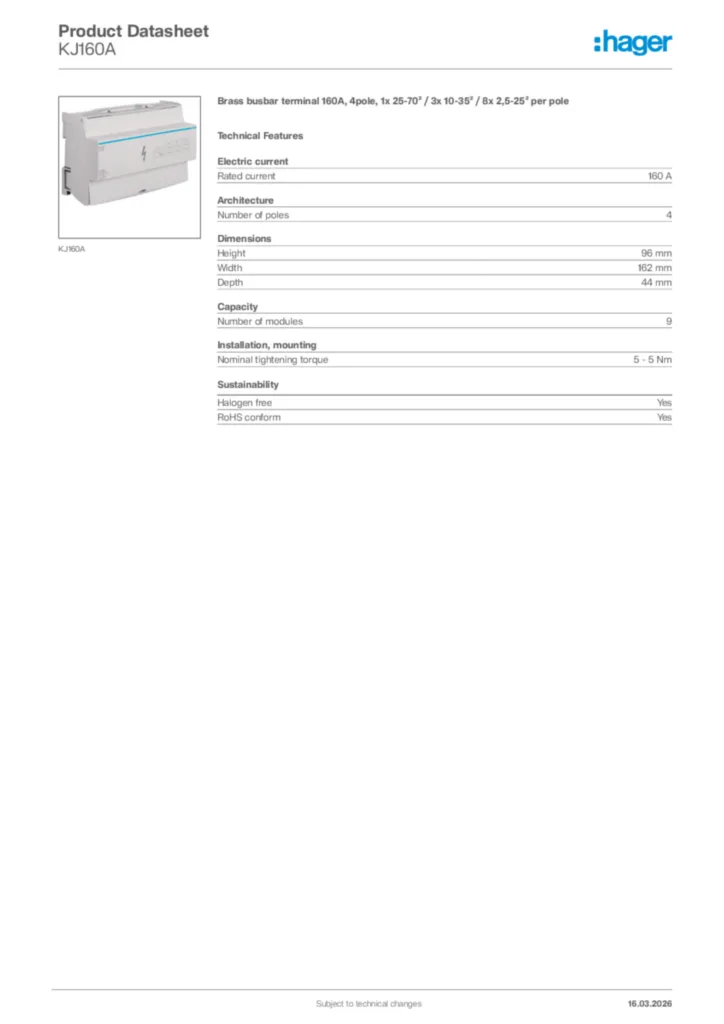

      Image Hager Product data sheet KJ160A  | Hager Africa

      Hager Product data sheet KJ160A

      Brass busbar terminal 160A, 4pole, 1x 25-70² / 3x 10-35² / 8x 2,5-25² per pole

      PDF
    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-07-22  | Hager Africa

      Declaration of conformity en-GB 2026-07-22

      PDF
      290,81 kB
      Image Deklaracja zgodności UE  | Hager Africa

      Deklaracja zgodności UE

      Bloki rozdzielcze i akcesoria; KJ…

      PDF
      274,85 kB
