Kit, NewVegaD, 300x500mm, for MCCB H3+ 250A (In 160A)+ add-on FD02K2
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 16 products available
Referenced by
-
FU72ANEnclosure, NewVegaD, 1287x550x182mm, 168 modules, flush-mounted, to complete
-
FU62ANEnclosure, NewVegaD, 1137x550x182mm, 144 modules, flush-mounted, to complete
-
FU52ANEnclosure, NewVegaD, 987x550x182mm, 120 modules, flush-mounted, to complete
-
FU42ANEnclosure, NewVegaD, 837x550x182mm, 96 modules, flush-mounted, to complete
-
FU32ANEnclosure, NewVegaD, 687x550x182mm, 72 modules, flush-mounted, to complete
-
FU22ANEnclosure, NewVegaD, 537x550x182mm, 48 modules, flush-mounted, to complete
-
FD72DNEnclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, distribution
-
FD72ANEnclosure, NewVegaD, 1200x550x193mm, 168 modules, surface-mounted, to complete
-
FD62DNEnclosure, NewVegaD, 1050x550x193mm, 144 modules, surface-mounted, distribution
-
FD62ANEnclosure, NewVegaD, 1050x550x193mm, 144 modules, surface-mounted, to complete
-
FD52DNEnclosure, NewVegaD, 900x550x193mm, 120 modules, surface-mounted, distribution
-
FD52ANEnclosure, NewVegaD, 900x550x193mm, 120 modules, surface-mounted, to complete
-
FD42DNEnclosure, NewVegaD, 750x550x193mm, 96 modules, surface-mounted, distribution
-
FD42ANEnclosure, NewVegaD, 750x550x193mm, 96 modules, surface-mounted, to complete
-
FD32DNEnclosure, NewVegaD, 600x550x193mm, 72 modules, surface-mounted, distribution
-
FD22DNEnclosure, NewVegaD, 450x500x193mm, 48 modules, surface-mounted, distribution
Technical properties
Dimensions
-
Height300 mm
-
Width500 mm
-
Depth147 mm
Equipment
-
Number of rails1
Materials
-
RAL code9010
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

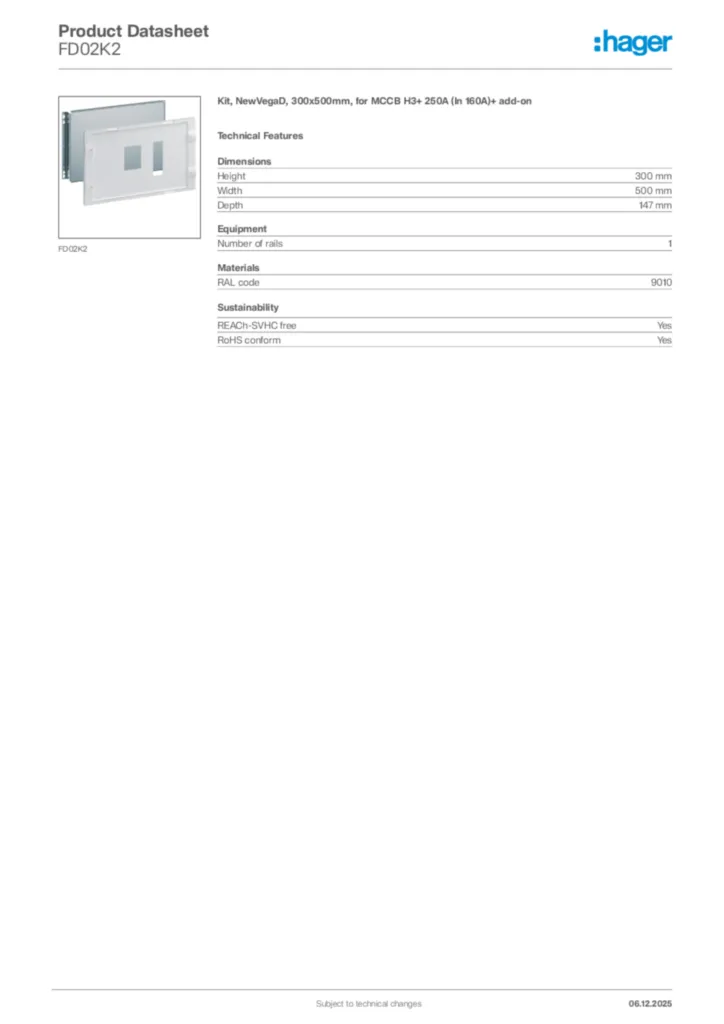

Hager Product data sheet FD02K2
Kit, NewVegaD, 300x500mm, for MCCB H3+ 250A (In 160A)+ add-on
PDF -
Handbook
Handbook en-GB 2023-07-07
PDF11,76 MB
Handbook fr-FR 2023-09-11
PDF11,49 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-11
PDF190,72 kB
