The Hager NewVegaD surface-mounted enclosure (1050x550x193 mm) provides 144-module capacity over 6 rows for versatile residential or light commercial distribution. Rated 160 A, 230-400 V, Class II, IP30 for safe indoor use. Supplied to be completed, it accepts modular devices and accessories. Includes 4 conduit inlets, 4 rails, earthing terminal block, metal/plastic build in RAL 9010 pure white.
EAN
3250612548361
VPE
1 piece
Enclosure NewVegaD 144M 6-row surface-mounted distribution IP30 Class II 160A FD62AN
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Distributor assembly switch 4 product.page.accessories.products-available -
Gland plate for enclosure 5 product.page.accessories.products-available -
Cover for distribution board 3 product.page.accessories.products-available -
Distributor assembly terminal blocks 2 product.page.accessories.products-available -
Cover/infill panel/identification strip 1 product.page.accessories.products-available -
Common Accessories 3 product.page.accessories.products-available
product.page.accessories.title-modal
-
FD00P4
Kit, NewVegaD, with 2 side cable entry plates, square until M40, for FD…
-
FD00P3Cable entry plate, NewVegaD, top/bottom, rectangular with round knock-outs
-
FD00P2Cable entry plate, NewVegaD, top/bottom, rectangular with 2 flanges IP41
-
FD00P1Cable entry plate, NewVegaD, top/bottom, rectangular
-
VZ741Rear cable entry flange IP41 for NewVegaD and Univers FW boards
-
FD02C2Kit, NewVegaD, 300x500mm, with depth-adjustable perforated plate and plain cover
-
FD02A3Kit, NewVegaD, 300x500mm, for rail-mounted devices, 1x24mod.+1depth-adjust.DIN rail
-
FD02A2Kit, NewVegaD, 300x500mm, with depth-adjustable DIN rails and plain cover
-
FD02A1Kit, NewVegaD, 300x500mm, for rail-mounted devices, 2x24 modules
Technical characteristics
Connection
-
Number of conduit inlets4
Voltage
-
Nominal voltage230 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current IN160 A
Equipment
-
Number of rails4
-
Number of rows6
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules144
Dimensions
-
Height1050 mm
-
Width550 mm
-
Depth193 mm
-
Number of width units24
Cover, door
-
Number of cabinet doors0
-
Number of locks0
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Materials
-
MaterialMetal, Plastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-

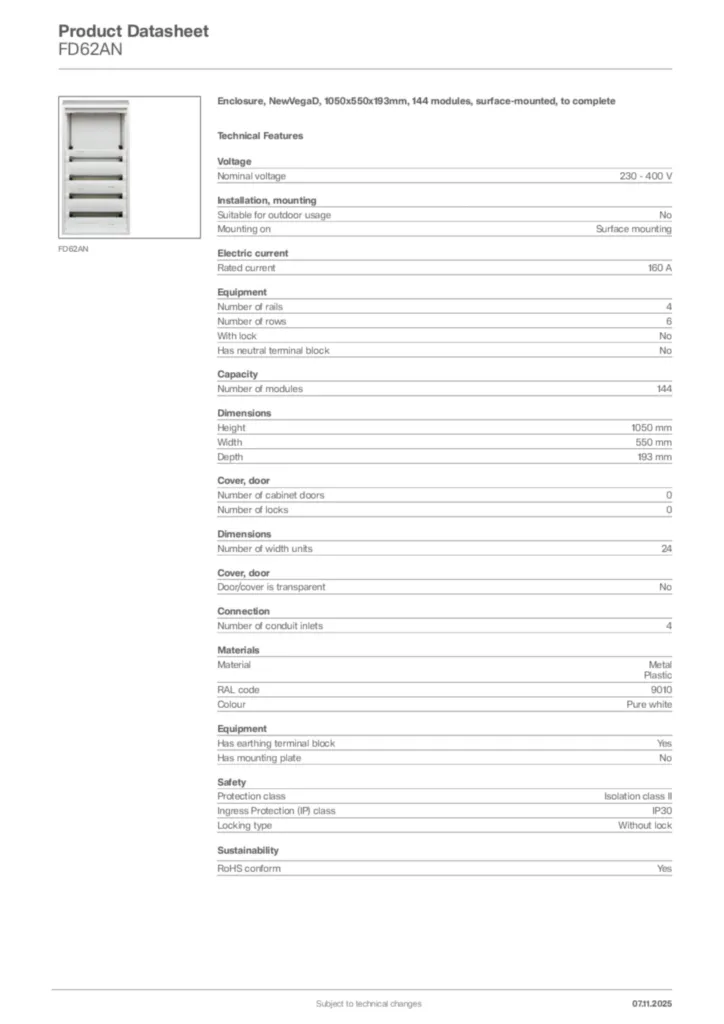

GeneratedProductDatasheet

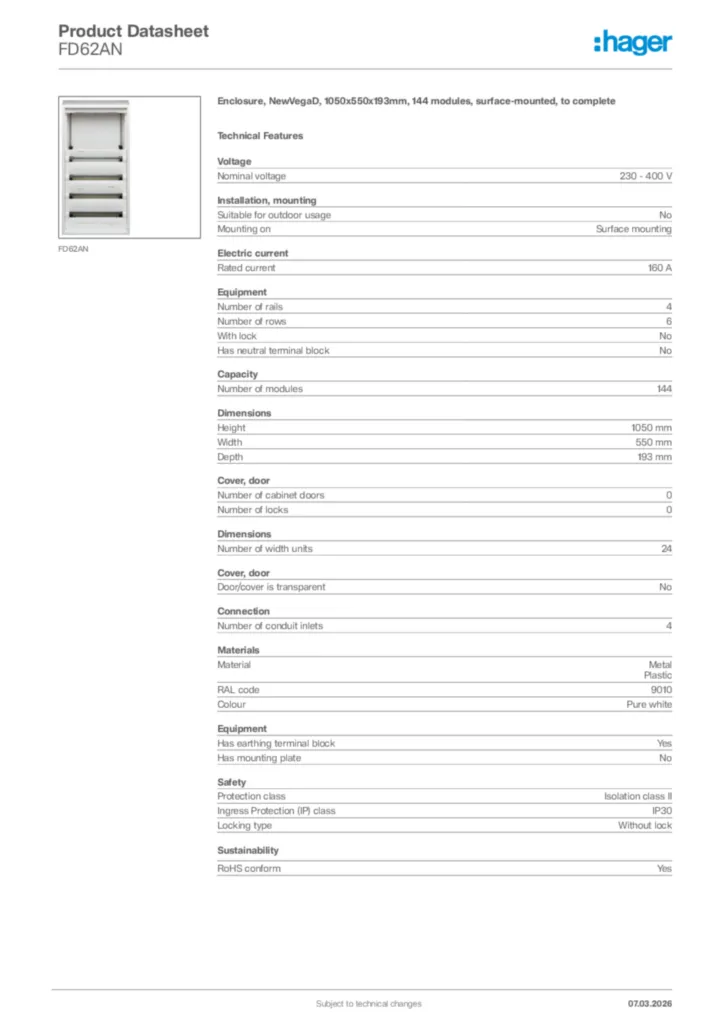

Hager Product data sheet FD62AN
