Earth leakage add-on block 4P 40A 300mA AC Class BF441
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 24 products available
Referenced by
-
NBN432AMCB 4P 10kA/15kA B-32A 4M
-
NF440AMCB 4P 6/10kA C-40A 4M
-
NF432A
MCB 4P 6/10kA C-32A 4M
-
NGN432MCB 4P 6/10kA D-32A 4M
-
NDN440AMCB 4P 10kA/15kA D-40A 4M
-
NCN440AMCB 4P 10kA/15kA C-40A 4M
-
NDN432AMCB 4P 10kA/15kA D-32A 4M
-
NFN432MCB 4P 6/10kA C-32A 4M
-
NCN432AMCB 4P 10kA/15kA C-32A 4M
-
NRN432MCB 4P 20kA C-32A 4M
-
NFN440MCB 4P 6/10kA C-40A 4M
-
NEN432MCB 4P 6/10kA B-32A 4M
-
NBN440AMCB 4P 10kA/15kA B-40A 4M
-
NRN440MCB 4P 20kA C-40A 4M
-
NQN432MCB 4P 20kA B-32A 4M
-
NGN440MCB 4P 6/10kA D-40A 4M
-
NQN440MCB 4P 20kA B-40A 4M
-
NEN440MCB 4P 6/10kA B-40A 4M
-
MC432AMCB 4P 6kA C-32A 4M
-
MC440AMCB 4P 6kA C-40A 4M
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles4
Capacity
-
Number of modules3
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn300 mA
-
Rated current40 A
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

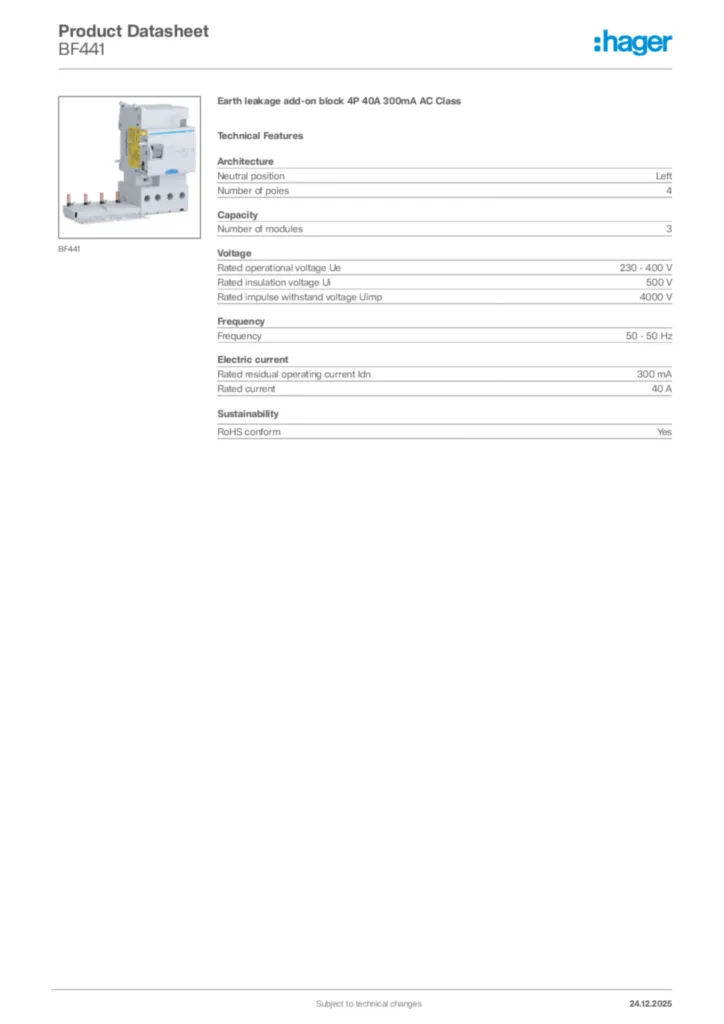

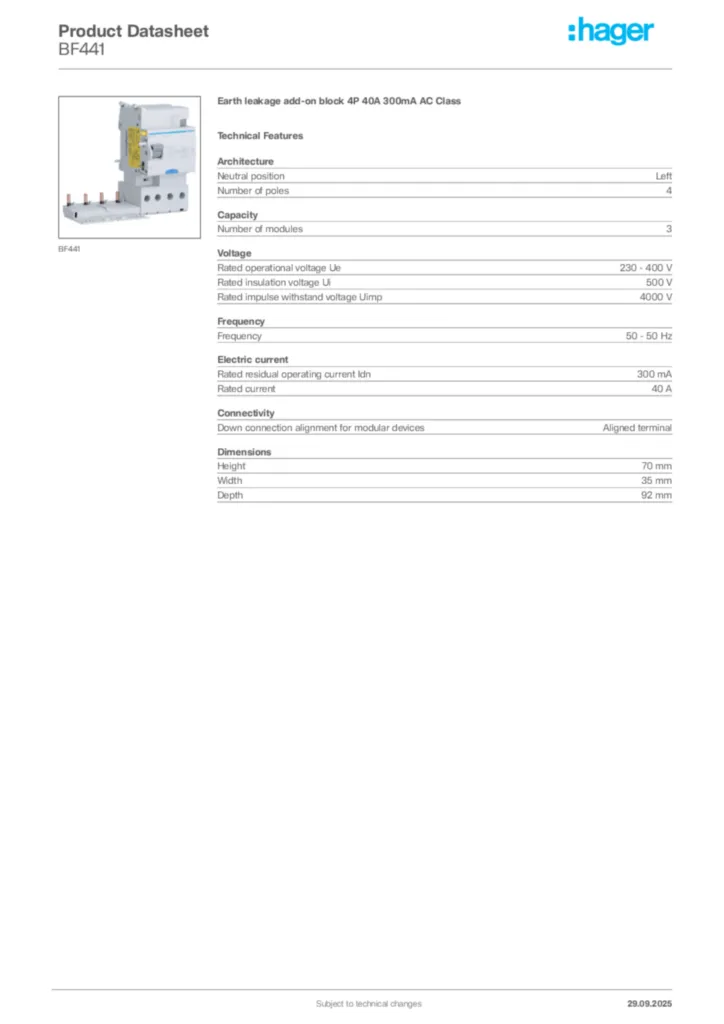

Product datasheet
Hager Product data sheet BF441
Earth leakage add-on block 4P 40A 300mA AC Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
More documentation
Discover more of this product range
-
5
-
1
BR464NEarth leakage add-on block 4P 63A 500mA AC S Class -
2
BE264Earth leakage add-on block 2P 63A 100mA AC Class -
3
BF341Earth leakage add-on block 3P 40A 300mA AC Class -
4
BP464Earth leakage add-on block 4P 63A 300mA AC S Class -
5
BFH825Earth leakage add-on-block with double output 4P 25A 300mA A high immunity class
