MCB 4P 6/10kA C-40A 4M NF440A

Name: NF440A
Brand: Hager
SKU: NF440A1

EAN

3250614668647

Packaging

Accessories
Technical properties
Environmental value
Documentations
More products

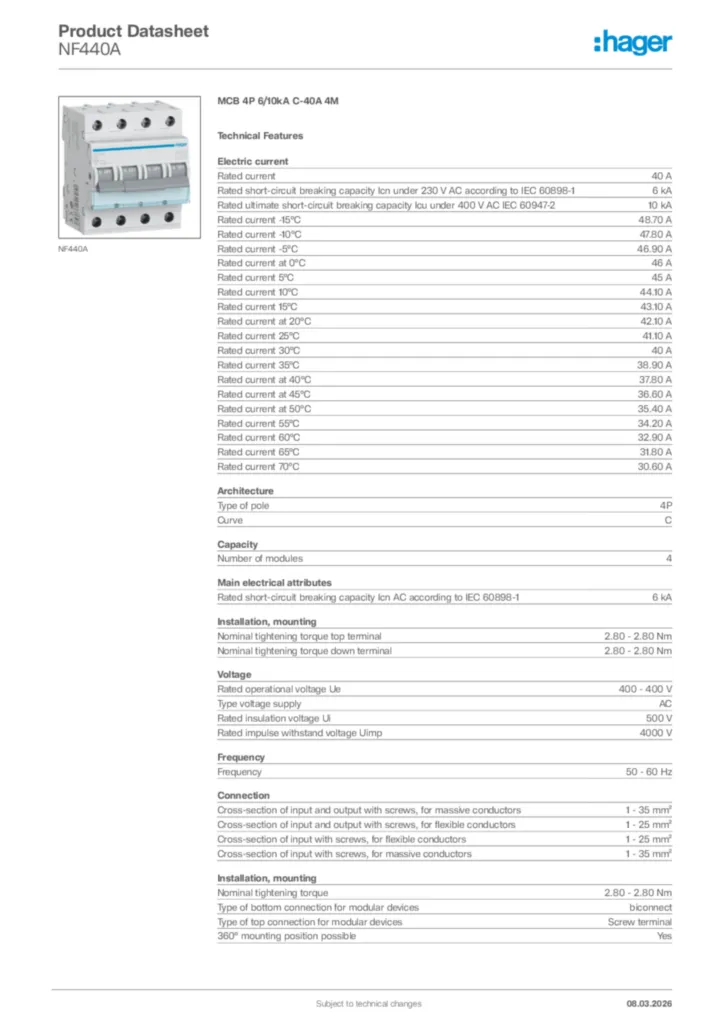

Download the data sheet

Complete your system

AOB type A-HI 3 products available
AOB type AC/A-SEL 5 products available
AOB type AC 6 products available

Technical properties

Rated current

40 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

6 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

10 kA
Rated current -15°C

48.70 A
Rated current -10°C

47.80 A
Rated current -5°C

46.90 A
Rated current at 0°C

46 A
Rated current 5°C

45 A
Rated current 10°C

44.10 A
Rated current 15°C

43.10 A
Rated current at 20°C

42.10 A
Rated current 25°C

41.10 A
Rated current 30°C

40 A
Rated current 35°C

38.90 A
Rated current at 40°C

37.80 A
Rated current at 45°C

36.60 A
Rated current at 50°C

35.40 A
Rated current 55°C

34.20 A
Rated current 60°C

32.90 A
Rated current 65°C

31.80 A
Rated current 70°C

30.60 A

Type of pole

4P
Curve

C

Number of modules

4

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - +70 °C

Total power loss under IN

21.30 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

70 mm
Depth

70 mm
