    • BFH840
    EAN
    3250611310112
    Packaging
    1 Piece
    • Add-on blocks for MCB and multi­polar

    Earth leakage add-on-block with double output 4P 40A 300mA A high immunity class BFH840

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth leakage add-on-block with double output 4P 40A 300mA A high immunity class

    BFH840

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 48 products available

    Referenced by

    • NFN420

      MCB 4P 6/10kA C-20A 4M
      0.00 €  / *
    • NFN410

      MCB 4P 6/10kA C-10A 4M
      0.00 €  / *
    • NQN425

      MCB 4P 25kA B-25A 4M
      0.00 €  / *
    • NRN420

      MCB 4P 25kA C-20A 4M
      0.00 €  / *
    • NQN420

      MCB 4P 25kA B-20A 4M
      0.00 €  / *
    • NF432A

      MCB 4P 6/10kA C-32A 4M
      0.00 €  / *
    • NF440A

      MCB 4P 6/10kA C-40A 4M
      0.00 €  / *
    • NGN402

      MCB 4P 6/10kA D-2A 4M
      0.00 €  / *
    • NGN432

      MCB 4P 6/10kA D-32A 4M
      0.00 €  / *
    • NFN416

      MCB 4P 6/10kA C-16A 4M
      0.00 €  / *
    • NGN425

      MCB 4P 6/10kA D-25A 4M
      0.00 €  / *
    • NCN440A

      MCB 4P 10kA/15kA C-40A 4M
      0.00 €  / *
    • NFN425

      MCB 4P 6/10kA C-25A 4M
      0.00 €  / *
    • NDN432A

      MCB 4P 10kA/15kA D-32A 4M
      0.00 €  / *
    • NFN432

      MCB 4P 6/10kA C-32A 4M
      0.00 €  / *
    • NRN406

      MCB 4P 25kA C-6A 4M
      0.00 €  / *
    • NGN416

      MCB 4P 6/10kA D-16A 4M
      0.00 €  / *
    • NCN432A

      MCB 4P 10kA/15kA C-32A 4M
      0.00 €  / *
    • NGN420

      MCB 4P 6/10kA D-20A 4M
      0.00 €  / *
    • NRN432

      MCB 4P 20kA C-32A 4M
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      40 A
    • Rated residual oper­ating current Idn
      300 mA
    Archi­tec­ture
    • Number of poles
      4
    Capa­city
    • Number of modules
      3
    Frequency
    • Frequency
      50 - 50 Hz
    Power
    • Total power loss under IN
      5.3 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      1000
    • Number of mech­an­ical oper­a­tions
      6000
    Voltage
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    Connectivity
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Dimen­sions
    • Height
      102 mm
    • Width
      52.50 mm
    • Depth
      70 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    Certifications and documents

    Hager REACH declaration BFH840
    PDF

    Downloads

    • Image BFH840 | Hager Africa

      Product Image BFH840

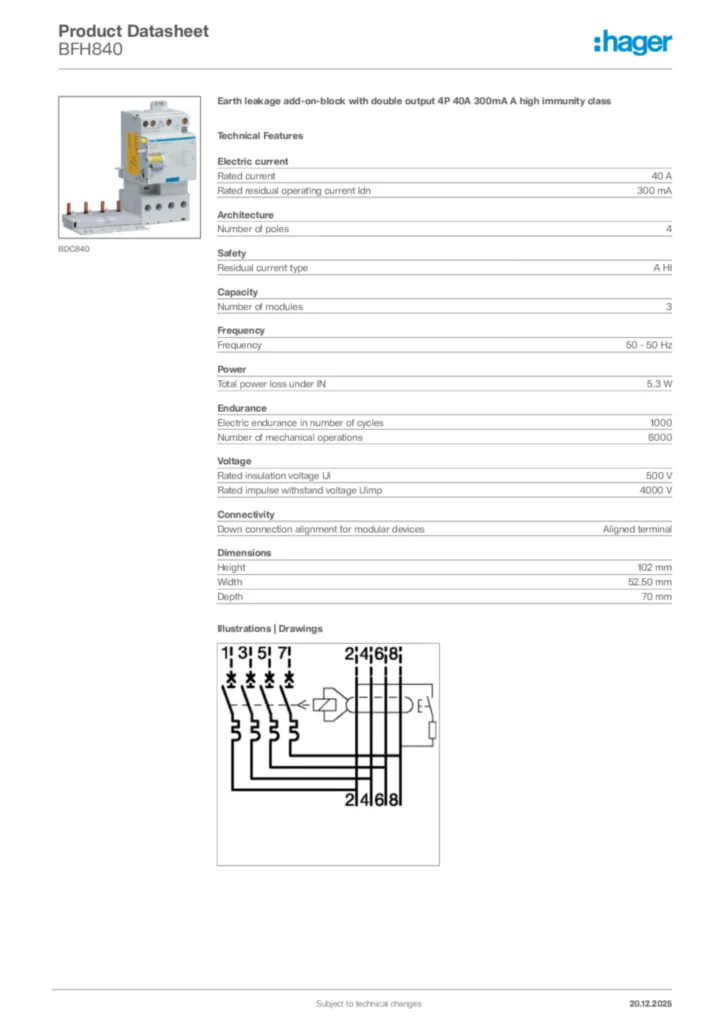

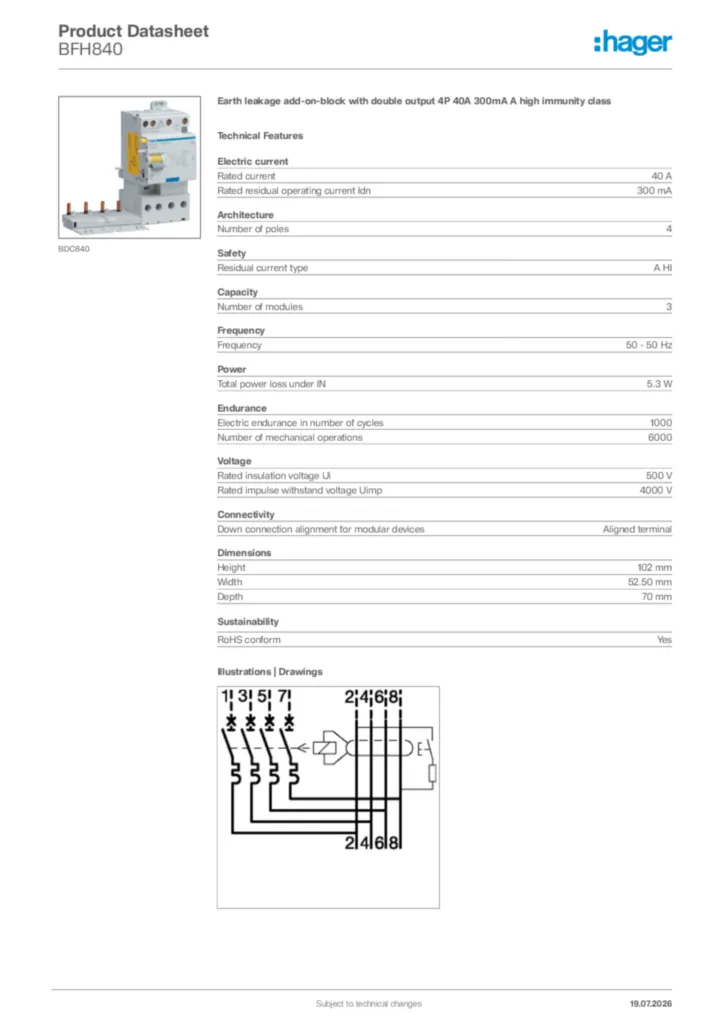

    • Product datasheet

      Image Hager Product data sheet BFH840 | Hager Africa

      Hager Product data sheet BFH840

      Earth leakage add-on-block with double output 4P 40A 300mA A high immunity class

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2018-12-06

      PDF
      79,82 kB
