The Hager 4P 40A 30mA AC-class earth leakage add-on block with double output provides reliable residual current protection when paired with compatible MCBs. Rated 230-400V, 50Hz, Ui 500V and Uimp 4kV, it trips at 30mA to prevent electric shock and fire risk. Compact 3-module design with left neutral and aligned terminals speeds wiring. Ideal for residential and commercial distribution boards.

EAN

3250611310020

Packaging

1 Piece

Add-on blocks for MCB and multipolar

Earth leakage add-on block 4P 63A 300mA AC class, double output, 3 modules BDC840

Technical properties
Environmental value
Documentations
More products

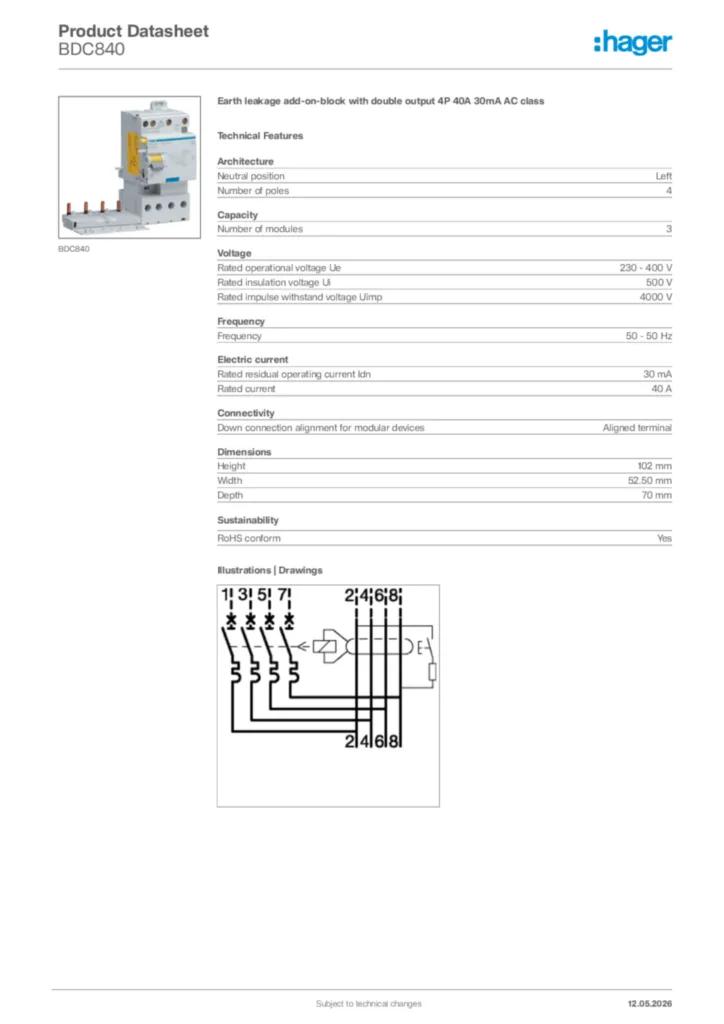

Download the data sheet

Technical properties

Neutral position

Left
Number of poles

4

Number of modules

3

Rated operational voltage Ue

230 - 400 V
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 50 Hz

Rated residual operating current Idn

30 mA
Rated current

40 A

Down connection alignment for modular devices

Aligned terminal

Height

102 mm
Width

52.50 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
