    EAN
    3250611310129
    Packaging
    1 Piece
    • Add-on blocks for MCB and multi­polar

    Earth leakage add-on-block with double output 4P 63A 300mA high immunity class BFH863

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth leakage add-on-block with double output 4P 63A 300mA high immunity class

    BFH863

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 58 products available

    Referenced by

    • NDN450A

      MCB 4P 10kA/15kA D-50A 4M
      0.00 €  / *
    • NGN432

      MCB 4P 6/10kA D-32A 4M
      0.00 €  / *
    • MMN463

      Magnetic MCB 4P 15kA 63A 400V Zubehörmöglich. Anzeige IEC 947-2
      0.00 €  / *
    • NQN420

      MCB 4P 25kA B-20A 4M
      0.00 €  / *
    • NRN420

      MCB 4P 25kA C-20A 4M
      0.00 €  / *
    • NQN450

      MCB 4P 15kA B-50A 4M
      0.00 €  / *
    • NFN416

      MCB 4P 6/10kA C-16A 4M
      0.00 €  / *
    • NGN463

      MCB 4P 6/10kA D-63A 4M
      0.00 €  / *
    • NFN420

      MCB 4P 6/10kA C-20A 4M
      0.00 €  / *
    • NFN425

      MCB 4P 6/10kA C-25A 4M
      0.00 €  / *
    • NGN425

      MCB 4P 6/10kA D-25A 4M
      0.00 €  / *
    • NBN450A

      MCB 4P 10kA/15kA B-50A 4M
      0.00 €  / *
    • NFN432

      MCB 4P 6/10kA C-32A 4M
      0.00 €  / *
    • NRN406

      MCB 4P 25kA C-6A 4M
      0.00 €  / *
    • NGN416

      MCB 4P 6/10kA D-16A 4M
      0.00 €  / *
    • NFN463

      MCB 4P 6/10kA C-63A 4M
      0.00 €  / *
    • NDN463A

      MCB 4P 10kA/15kA D-63A 4M
      0.00 €  / *
    • NGN420

      MCB 4P 6/10kA D-20A 4M
      0.00 €  / *
    • NRN432

      MCB 4P 20kA C-32A 4M
      0.00 €  / *
    • NGN404

      MCB 4P 6/10kA D-4A 4M
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      63 A
    • Rated residual oper­ating current Idn
      300 mA
    Archi­tec­ture
    • Number of poles
      4
    Safety
    • Residual current type
      A HI
    Capa­city
    • Number of modules
      3
    Frequency
    • Frequency
      50 - 50 Hz
    Power
    • Total power loss under IN
      11.2 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      1000
    • Number of mech­an­ical oper­a­tions
      6000
    Voltage
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    Connectivity
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Dimen­sions
    • Height
      102 mm
    • Width
      52.50 mm
    • Depth
      70 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration BFH863
    PDF
    Hager RoHS report BFH863
    PDF

    Downloads

    • Image BFH863 | Hager Africa

      Product Image BFH863

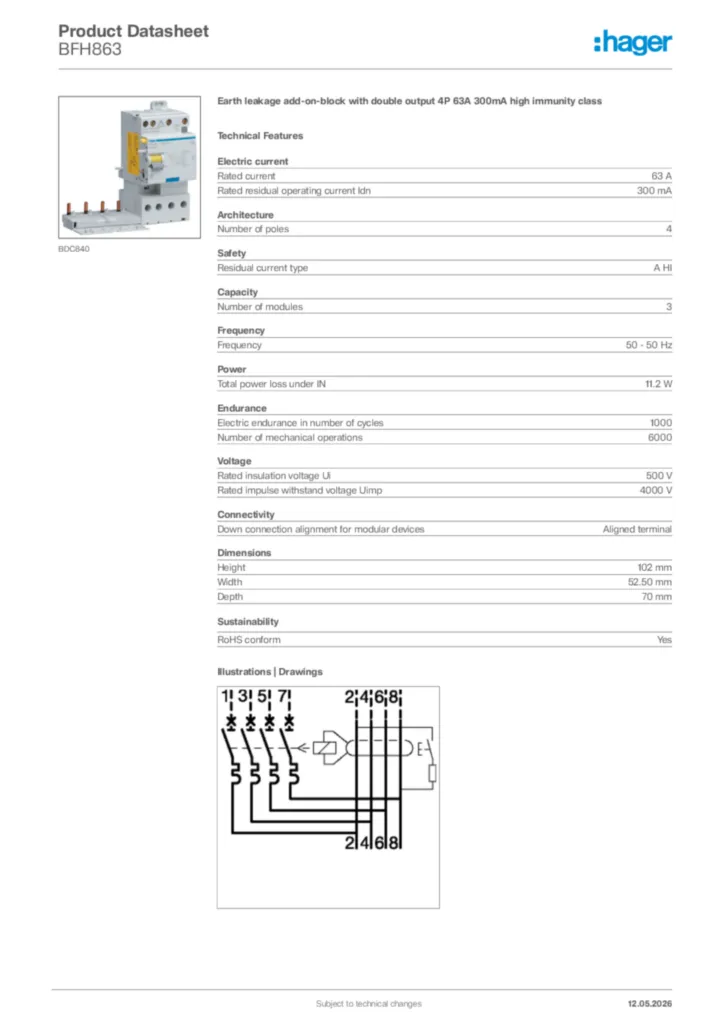

    • Product datasheet

      Image Hager Product data sheet BFH863 | Hager Africa

      Hager Product data sheet BFH863

      Earth leakage add-on-block with double output 4P 63A 300mA high immunity class

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2018-12-06

      PDF
      79,82 kB
