The Hager earth leakage add-on-block, 4P 63A Type AC 30mA with double output, upgrades compatible breakers with residual-current protection for people and fire safety. Suits 230-400 V, 50 Hz systems; Ui 500 V, Uimp 4 kV. Left neutral, aligned terminals for quick wiring. Compact 3-module (52.5×102×70 mm) design for residential and commercial distribution boards.
EAN
3250611310037
Packaging
1 Piece
kWh meter Phase+Neutral Direct 40A Class B Optical 1 Module BDC863
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles4
Capacity
-
Number of modules3
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn30 mA
-
Rated current63 A
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height102 mm
-
Width52.50 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

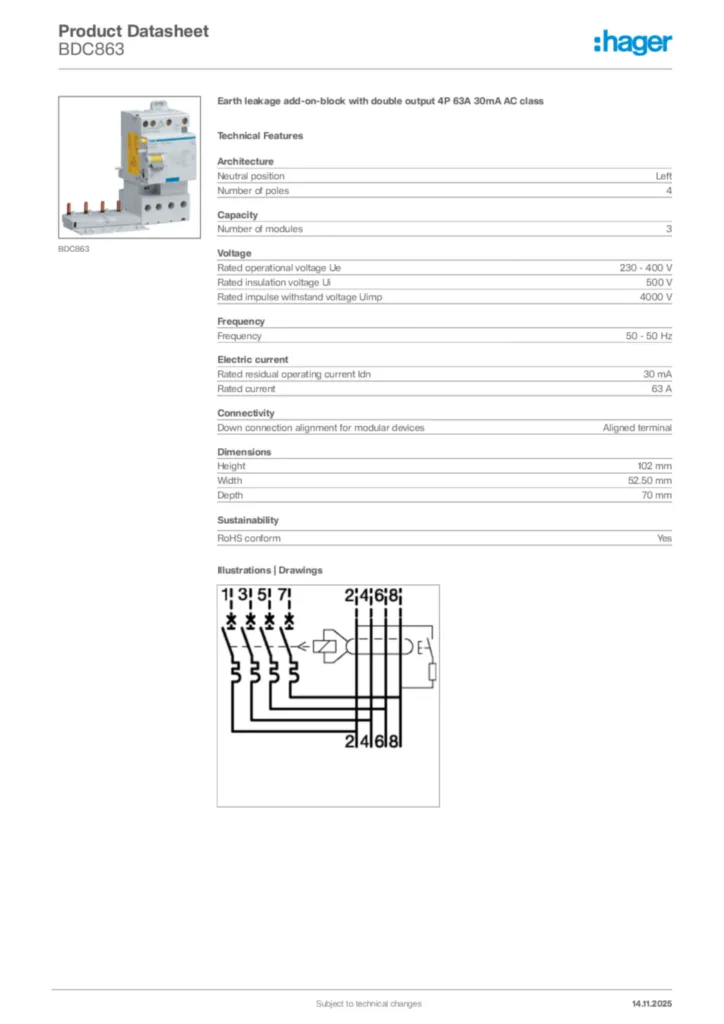

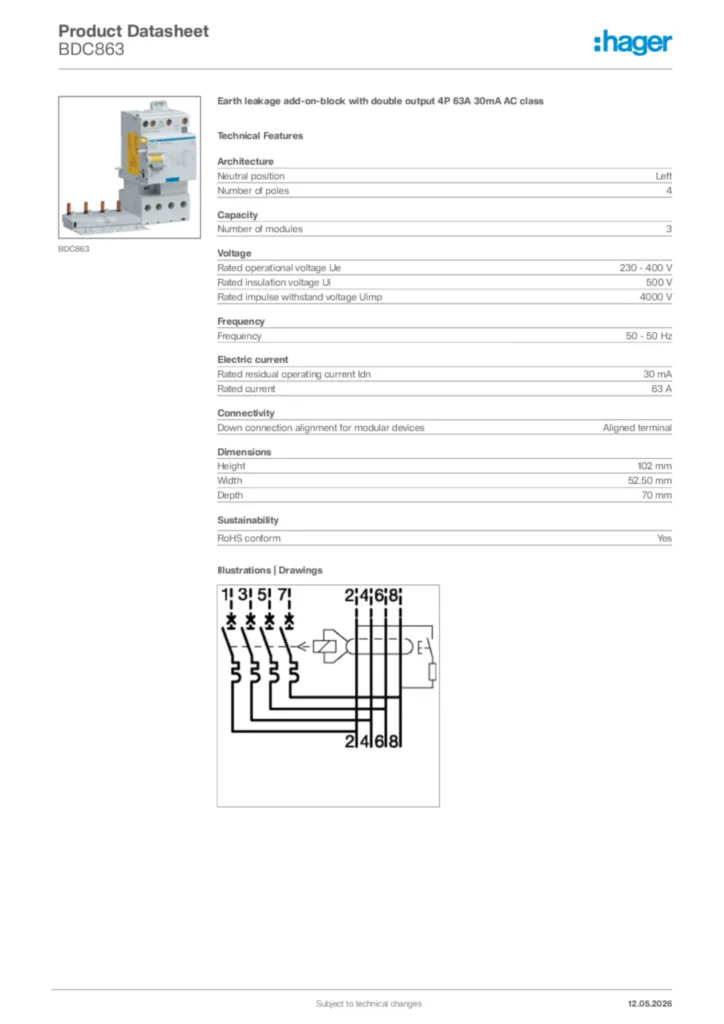

Hager Product data sheet BDC863
Earth leakage add-on-block with double output 4P 63A 30mA AC class
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2018-12-06
PDF79,82 kB
