Earth leakage add-on block 4P 63A 500mA AC Class BG464
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 97 products available
Referenced by
-
NBN406AMCB 4P 10kA/15kA B-6A 4M
-
NGN416MCB 4P 6/10kA D-16A 4M
-
NDN416AMCB 4P 10kA/15kA D-16A 4M
-
NCN420AMCB 4P 10kA/15kA C-20A 4M
-
NCN410AMCB 4P 10kA/15kA C-10A 4M
-
NRN432MCB 4P 20kA C-32A 4M
-
NFN440MCB 4P 6/10kA C-40A 4M
-
NFN406MCB 4P 6/10kA C-6A 4M
-
NGN420MCB 4P 6/10kA D-20A 4M
-
NFN432MCB 4P 6/10kA C-32A 4M
-
NRN406MCB 4P 25kA C-6A 4M
-
NBN410AMCB 4P 10kA/15kA B-10A 4M
-
NBN450AMCB 4P 10kA/15kA B-50A 4M
-
NCN402AMCB 4P 10kA/15kA C-2A 4M
-
NCN404AMCB 4P 10kA/15kA C-4A 4M
-
NCN406AMCB 4P 10kA/15kA C-6A 4M
-
NDN432AMCB 4P 10kA/15kA D-32A 4M
-
NDN450AMCB 4P 10kA/15kA D-50A 4M
-
NFN425MCB 4P 6/10kA C-25A 4M
-
NCN401AMCB 4P 10kA/15kA C-1A 4M
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles4
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn500 mA
-
Rated current63 A
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
Dimensions
-
Height70 mm
-
Width78 mm
-
Depth83 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

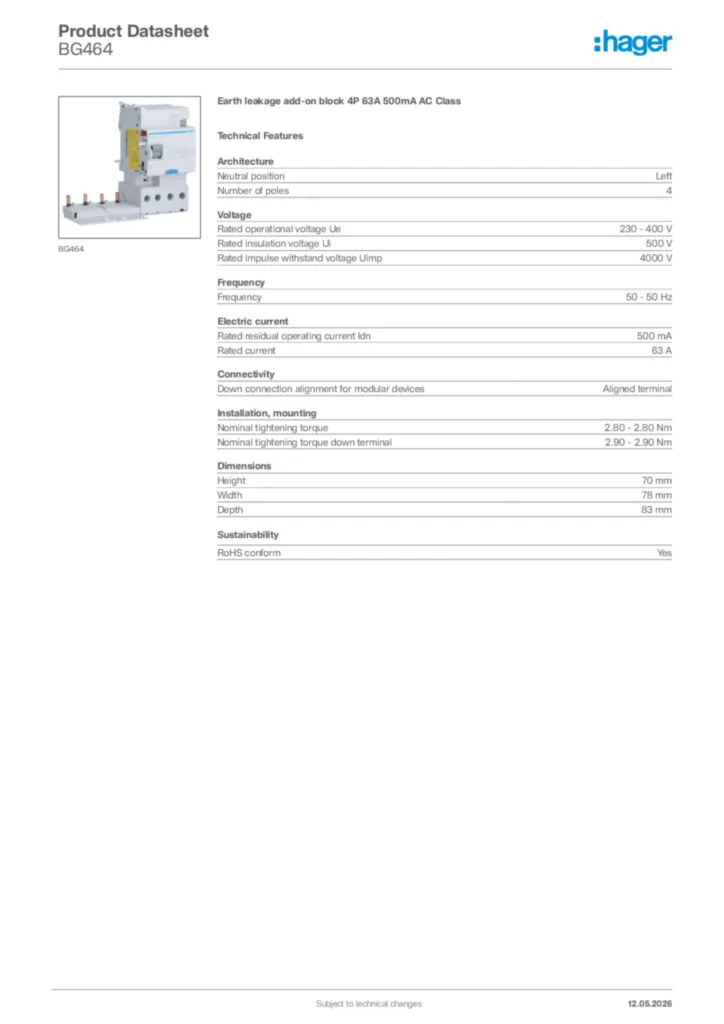

Hager Product data sheet BG464
Earth leakage add-on block 4P 63A 500mA AC Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
More documentation
Discover more of this product range
-
5
-
1
BD440Earth leakage add-on block 4P 40A 30mA A high immunity Class -
2
BDC840Earth leakage add-on-block with double output 4P 40A 30mA AC class -
3
BD426Earth leakage add-on block 4P 25A 30mA AC Class -
4
BDC825Earth leakage add-on-block with double output 4P 25A 30mA AC class -
5
BD363Earth leakage add-on block 3P 63A 30mA A high immunity Class
