The Hager MCB 4P B-40A 4M safeguards three-phase circuits against overloads and short circuits. With 20 kA Icu at 230/400 V and 10 kA Icn, it handles high fault levels. B-curve provides fast protection for standard/resistive loads. Rated 415 V AC, 50-60 Hz. Compact 4 modules, IP20. Screw terminals (1-35 mm2) with biconnect bottom ease wiring. Operates -25 to +70 C with high electrical and mechanical endurance.

EAN

3250614645952

Packaging

1 Piece

Miniature circuit breaker 4P 20A Curve B 25kA Icu 415V AC 4 Modules NQN440

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical properties
Environmental value
Documentations

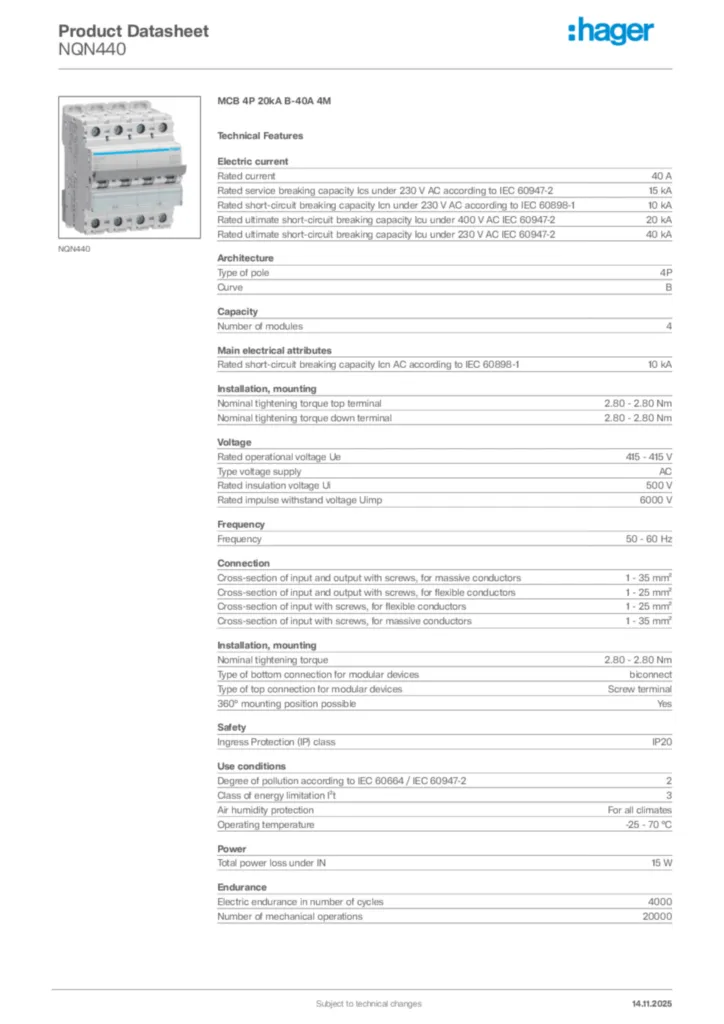

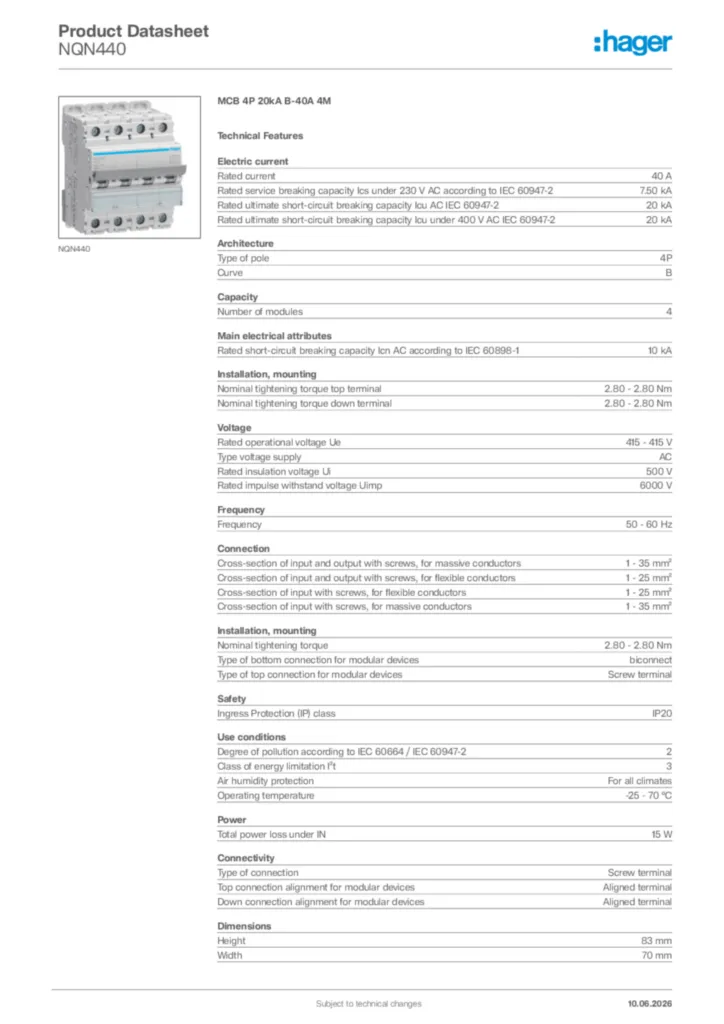

Download the data sheet

Complete your system

Modular phase busbar 1 products available
Terminal cover 1 products available
AOB type A-HI 3 products available
AOB type AC 5 products available
AOB type AC/A-SEL 1 products available

Technical properties

Rated current

40 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

7.50 kA
Rated ultimate short-circuit breaking capacity Icu AC IEC 60947-2

20 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

20 kA

Type of pole

4P
Curve

B

Number of modules

4

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Nominal tightening torque top terminal

2.80 - 2.80 Nm
Nominal tightening torque down terminal

2.80 - 2.80 Nm
Nominal tightening torque

2.80 - 2.80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal

Rated operational voltage Ue

415 - 415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Total power loss under IN

15 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

70 mm
Depth

70 mm
