Earth leakage add-on-block with double output 4P 63A 300mA AC class BFC863
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 57 products available
Referenced by
-
NFN425MCB 4P 6/10kA C-25A 4M
-
NF463AMCB 4P 6/10kA C-63A 4M
-
NGN432MCB 4P 6/10kA D-32A 4M
-
MMN463Magnetic MCB 4P 15kA 63A 400V Zubehörmöglich. Anzeige IEC 947-2
-
NQN420MCB 4P 25kA B-20A 4M
-
NRN420MCB 4P 25kA C-20A 4M
-
NQN450MCB 4P 15kA B-50A 4M
-
NFN416MCB 4P 6/10kA C-16A 4M
-
NGN463MCB 4P 6/10kA D-63A 4M
-
NFN420MCB 4P 6/10kA C-20A 4M
-
NGN425MCB 4P 6/10kA D-25A 4M
-
NDN450AMCB 4P 10kA/15kA D-50A 4M
-
NBN450AMCB 4P 10kA/15kA B-50A 4M
-
NFN432MCB 4P 6/10kA C-32A 4M
-
NRN406MCB 4P 25kA C-6A 4M
-
NGN416MCB 4P 6/10kA D-16A 4M
-
NFN463MCB 4P 6/10kA C-63A 4M
-
NDN463AMCB 4P 10kA/15kA D-63A 4M
-
NGN420MCB 4P 6/10kA D-20A 4M
-
NRN432MCB 4P 20kA C-32A 4M
Technical properties
Architecture
-
Neutral positionLeft
-
Number of poles4
Capacity
-
Number of modules3
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Frequency
-
Frequency50 - 50 Hz
Electric current
-
Rated residual operating current Idn300 mA
-
Rated current63 A
Connectivity
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height102 mm
-
Width52.50 mm
-
Depth70 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

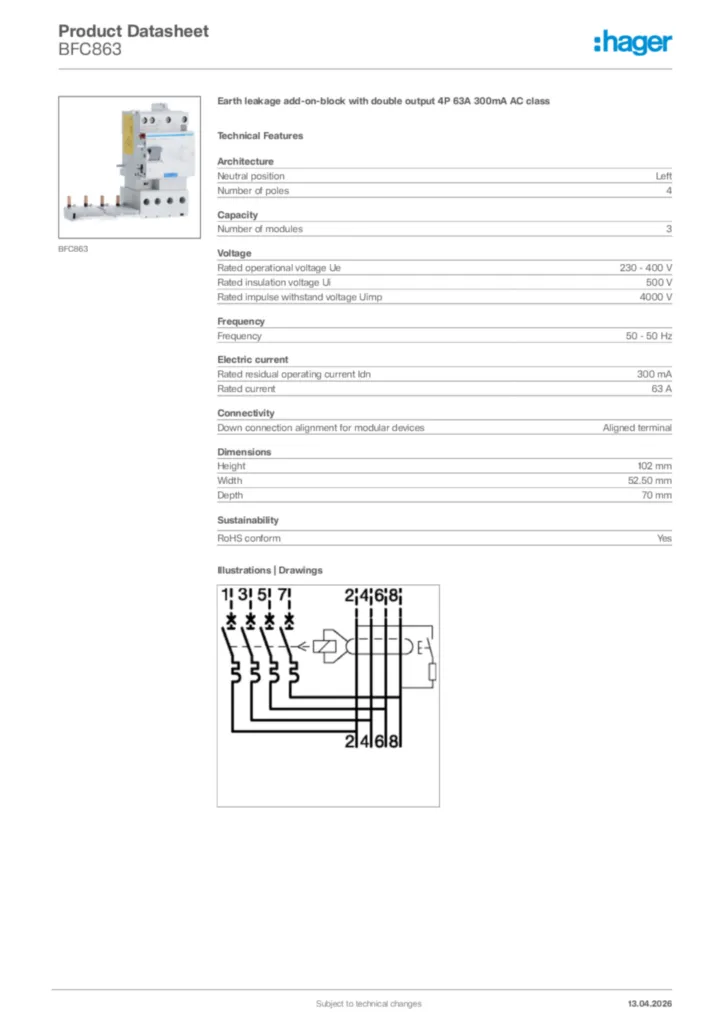

Hager Product data sheet BFC863
Earth leakage add-on-block with double output 4P 63A 300mA AC class
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2018-12-06
PDF79,82 kB
