Earth leakage add-on block 4P 63A 30mA A high immunity Class BD463
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 23 products available
Referenced by
-
NFN463MCB 4P 6/10kA C-63A 4M
-
MBN463MCB 4P 6kA B-63A 4M
-
NF463AMCB 4P 6/10kA C-63A 4M
-
NQN450MCB 4P 15kA B-50A 4M
-
MMN463Magnetic MCB 4P 15kA 63A 400V Zubehörmöglich. Anzeige IEC 947-2
-
MBN450MCB 4P 6kA B-50A 4M
-
NFN450MCB 4P 6/10kA C-50A 4M
-
NQN463MCB 4P 15kA B-63A 4M
-
NGN463MCB 4P 6/10kA D-63A 4M
-
NDN450AMCB 4P 10kA/15kA D-50A 4M
-
NBN450AMCB 4P 10kA/15kA B-50A 4M
-
NDN463AMCB 4P 10kA/15kA D-63A 4M
-
NBN463AMCB 4P 10kA/15kA B-63A 4M
-
NGN450MCB 4P 6/10kA D-50A 4M
-
NCN463AMCB 4P 10kA/15kA C-63A 4M
-
NCN450AMCB 4P 10kA/15kA C-50A 4M
-
NEN463MCB 4P 6/10kA B-63A 4M
-
NEN450MCB 4P 6/10kA B-50A 4M
-
MC463AMCB 4P 6kA C-63A 4M
-
MC450AMCB 4P 6kA C-50A 4M
Technical properties
Electric current
-
Rated current63 A
-
Rated residual operating current Idn30 mA
Architecture
-
Number of poles4
Capacity
-
Number of modules3
Frequency
-
Frequency50 - 50 Hz
Power
-
Total power loss under IN9.7 W
Installation, mounting
-
Nominal tightening torque2.80 - 2.80 Nm
-
Nominal tightening torque down terminal2.90 - 2.90 Nm
Endurance
-
Electric endurance in number of cycles2000
Voltage
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp4000 V
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

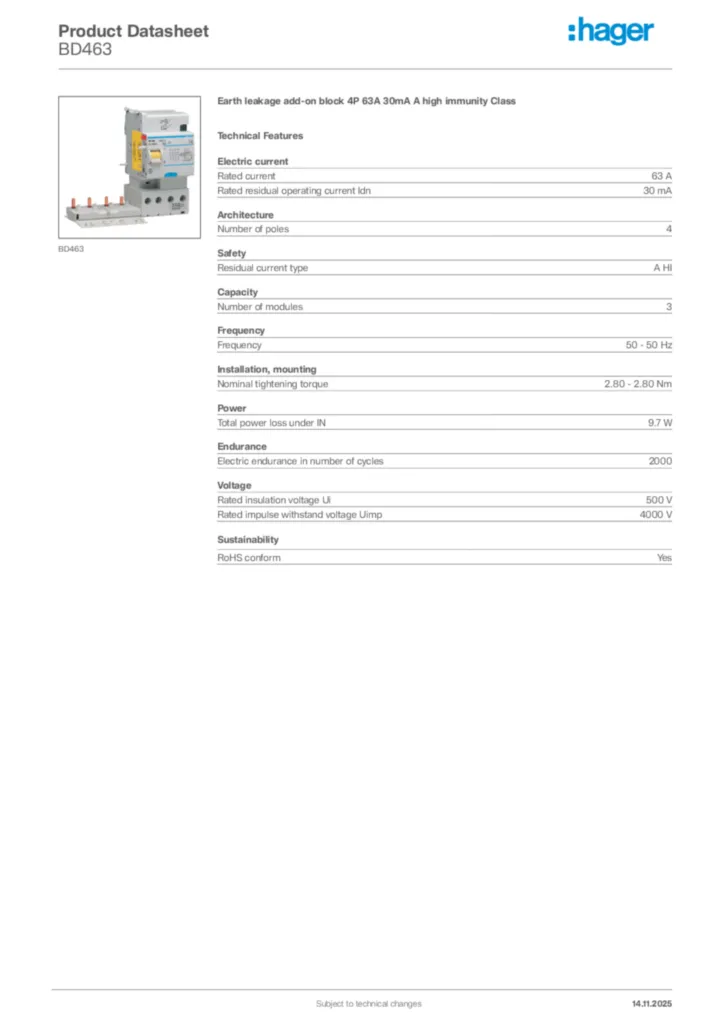

Product datasheet
Hager Product data sheet BD463
Earth leakage add-on block 4P 63A 30mA A high immunity Class
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, it-IT, nl-NL, pt-PT 2022-04-29
PDF1,61 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-11-10
PDF920,46 kB
Declaration
Declaration of conformity International 2021-12-07
PDF1,14 MB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-11-12
PDF452,70 kB
More documentation
