    • BDC825
    EAN
    3250611310013
    Packaging
    1 Piece
    • Add-on blocks for MCB and multi­polar

    Earth leakage add-on-block with double output 4P 25A 30mA AC class BDC825

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    Available soon

    Earth leakage add-on-block with double output 4P 25A 30mA AC class

    BDC825

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Referenced by 68 products available

    Referenced by

    • NRN406

      MCB 4P 25kA C-6A 4M
      0.00 €  / *
    • NF406A

      MCB 4P 6/10kA C-6A 4M
      0.00 €  / *

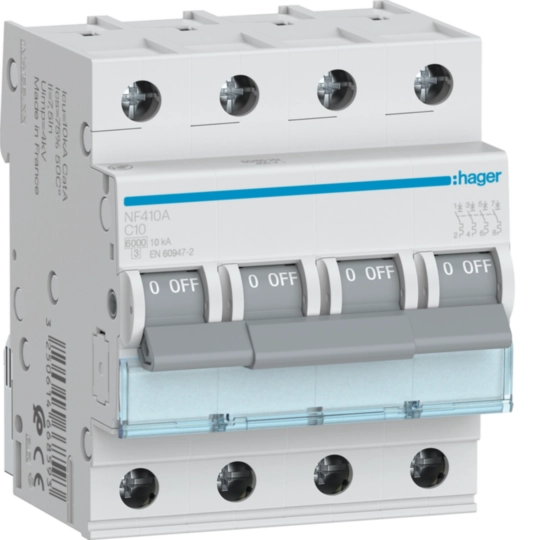

    • NF410A

      MCB 4P 6/10kA C-10A 4M
      0.00 €  / *
    • NQN420

      MCB 4P 25kA B-20A 4M
      0.00 €  / *
    • NFN425

      MCB 4P 6/10kA C-25A 4M
      0.00 €  / *
    • NCN406A

      MCB 4P 10kA/15kA C-6A 4M
      0.00 €  / *
    • NCN404A

      MCB 4P 10kA/15kA C-4A 4M
      0.00 €  / *
    • NCN402A

      MCB 4P 10kA/15kA C-2A 4M
      0.00 €  / *
    • NBN410A

      MCB 4P 10kA/15kA B-10A 4M
      0.00 €  / *
    • NBN406A

      MCB 4P 10kA/15kA B-6A 4M
      0.00 €  / *
    • NCN401A

      MCB 4P 10kA/15kA C-1A 4M
      0.00 €  / *
    • NGN416

      MCB 4P 6/10kA D-16A 4M
      0.00 €  / *
    • NDN416A

      MCB 4P 10kA/15kA D-16A 4M
      0.00 €  / *
    • NGN420

      MCB 4P 6/10kA D-20A 4M
      0.00 €  / *
    • NCN420A

      MCB 4P 10kA/15kA C-20A 4M
      0.00 €  / *
    • NCN410A

      MCB 4P 10kA/15kA C-10A 4M
      0.00 €  / *
    • NFN406

      MCB 4P 6/10kA C-6A 4M
      0.00 €  / *
    • NBN425A

      MCB 4P 10kA/15kA B-25A 4M
      0.00 €  / *
    • NBN420A

      MCB 4P 10kA/15kA B-20A 4M
      0.00 €  / *
    • NBN416A

      MCB 4P 10kA/15kA B-16A 4M
      0.00 €  / *

    Technical properties

    Archi­tec­ture
    • Neutral posi­tion
      Left
    • Number of poles
      4
    Capa­city
    • Number of modules
      3
    Voltage
    • Rated oper­a­tional voltage Ue
      230 - 400 V
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    Frequency
    • Frequency
      50 - 50 Hz
    Elec­tric current
    • Rated residual oper­ating current Idn
      30 mA
    • Rated current
      25 A
    Connectivity
    • Down connec­tion align­ment for modular devices
      Aligned terminal
    Install­a­tion, mounting
    • Nominal tight­ening torque
      1.70 - 1.70 Nm
    Dimen­sions
    • Height
      102 mm
    • Width
      52.50 mm
    • Depth
      70 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Earth leakage add-on block 4P 63A 30mA A Class (english)
    PDF
    666,81 kB
    Hager REACH declaration BDC825
    PDF
    Hager RoHS report BDC825
    PDF

    Downloads

    • Image BDC825 | Hager Africa

      Product Image BDC825

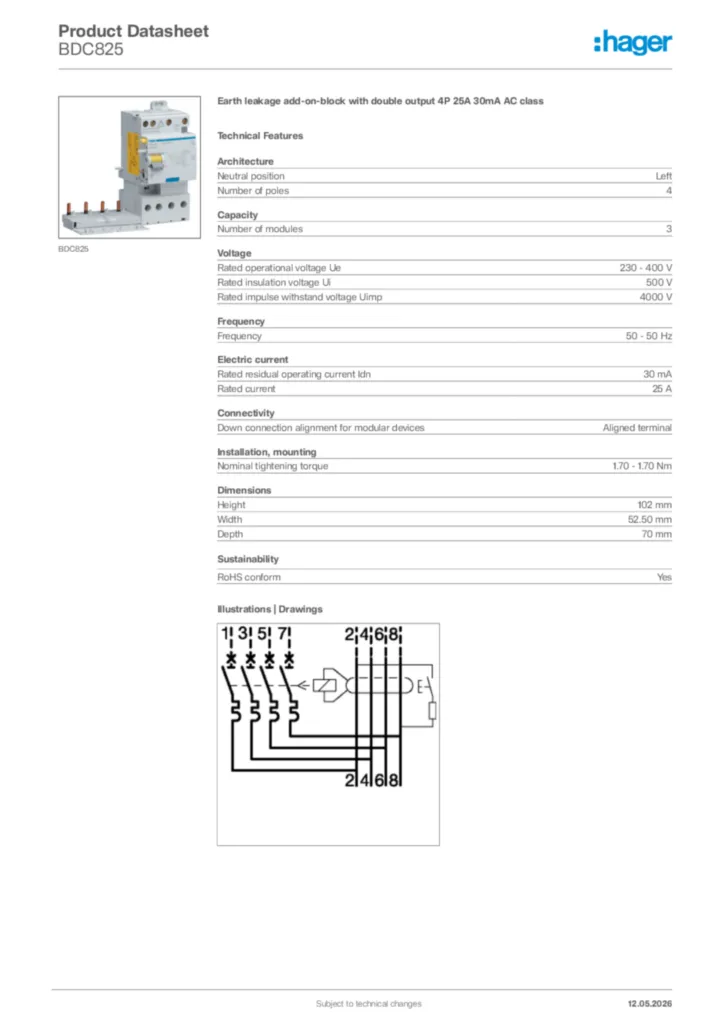

    • Product datasheet

      Image Hager Product data sheet BDC825 | Hager Africa

      Hager Product data sheet BDC825

      Earth leakage add-on-block with double output 4P 25A 30mA AC class

      PDF

    • Declaration of conformity

      Image Declaration | Hager Africa

      Declaration

      Declaration of conformity International 2018-12-06

      PDF
      79,82 kB
    More documentation

    Discover more of this product range

      5
    • 1
      BFH825 - Earth leakage add-on-block with double output 4P 25A 300mA A high immunity class
      BFH825
      Earth leakage add-on-block with double output 4P 25A 300mA A high immunity class
    • 2
      BF341 - Earth leakage add-on block 3P 40A 300mA AC Class
      BF341
      Earth leakage add-on block 3P 40A 300mA AC Class
    • 3
      BR464N - Earth leakage add-on block 4P 63A 500mA AC S Class
      BR464N
      Earth leakage add-on block 4P 63A 500mA AC S Class
    • 4
      BE264 - Earth leakage add-on block 2P 63A 100mA AC Class
      BE264
      Earth leakage add-on block 2P 63A 100mA AC Class
    • 5
      BFC863 - Earth leakage add-on-block with double output 4P 63A 300mA AC class
      BFC863
      Earth leakage add-on-block with double output 4P 63A 300mA AC class
